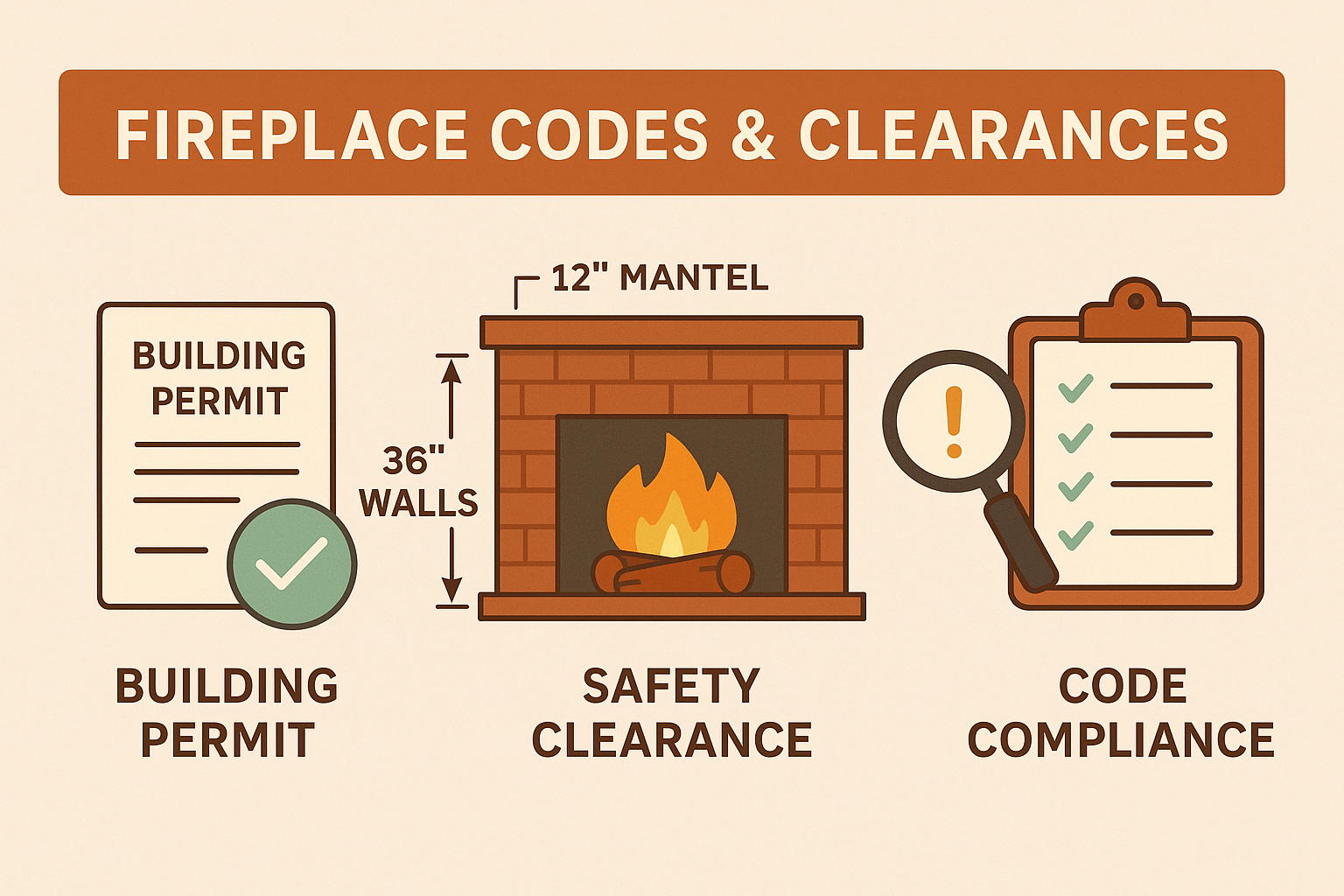

Fireplace Codes & Clearances: Read This Before You Build (2025)

Building or installing a fireplace isn’t just about design or comfort—it’s about meeting safety and code requirements that protect your home and ensure your system passes inspection.

Whether you’re upgrading an old wood stove, adding a gas insert, or mounting an electric or ethanol unit, knowing clearance and permit requirements before you begin can save thousands in costly corrections later.

Table of Contents

• Understanding Fireplace Building Codes
• Minimum Clearance Requirements
• Visual Layout Reference (Text Diagram)
• Flue and Venting Regulations
• Permit and Inspection Requirements
• Electric and Ethanol Compliance Simplified
• Common Mistakes to Avoid
• Pre-Build Code Compliance Checklist
• Related Reading

Understanding Fireplace Building Codes

Fireplace safety and installation are governed primarily by:

• NFPA 211 – The National Fire Protection Association standard for chimneys, fireplaces, and vents.
• IRC (International Residential Code) – Establishes minimum construction and installation standards.
• Local Building Codes – City or provincial requirements that can override national standards.

Codes vary by region and fireplace type, but nearly all require:

• Adequate clearances from combustibles.
• Proper venting or exhaust termination.
• Verified listing (UL/CSA/ETL) for tested appliances.
• Permits and inspections for permanent installations.

Before installation, always check both manufacturer’s specifications and local authority requirements—permits often require both for approval.

Minimum Clearance Requirements

Fireplaces generate heat and must maintain safe spacing from combustible materials such as wood framing, drywall, or flooring. Below are typical minimum clearances based on common standards and manufacturer guidance.

Always follow the specific clearances listed in your manufacturer’s installation manual. Local inspectors will use that data during inspection approval.

Visual Layout Reference (Diagram)

To visualize basic clearance zones for typical wall-mounted or recessed fireplaces:

This basic pattern holds true across most types—with gas and electric units requiring far less hearth clearance but similar spacing for mantels and sides.

Flue and Venting Regulations

Proper venting ensures combustion gases are expelled safely and that draft performance remains stable.

Chimney Height Rule (2-10-3 Rule):

• Chimney must extend 2 feet higher than any roof surface within 10 feet horizontally, and at least 3 feet above roof penetration.

Key Venting Code Points:

• Use listed liners (stainless, clay, or aluminum) per NFPA 211.
• Maintain ¼ inch per foot rise for vent pipes.
• For gas fireplaces, ensure termination caps are at least:
  • 12 in above grade
  • 3 ft away from air intakes or windows
  • 1 ft from exterior walls

Direct-Vent: Uses sealed combustion and coaxial piping—must terminate horizontally outdoors.
B-Vent: Requires vertical venting through roof termination.
Wood-Burning: Requires full flue/chimney system with liner and damper assembly.

Permit and Inspection Requirements

Permits are typically mandatory for:

• New fireplace construction (any fuel type).
• Chimney rebuilds or liner replacements.
• Gas line installations or modifications.
• Structural modifications to walls or framing.

Common Inspection Focus Points

• Proper hearth extension and clearances.
• Correct vent slope and firestop spacers.
• Manufacturer label visibly attached.
• Gas pressure test (for gas fireplaces).
• Electrical grounding check (for electric units).

Inspection Failure Causes:

• Incomplete vent termination.
• Incorrect clearance from framing.
• Non-listed components.
• No fireblocking or missing thimble in pass-through walls.

Electric and Ethanol Compliance Simplified

Electric Fireplaces:

• Must comply with NEC (National Electrical Code) for wiring and outlet capacity.
• Always plug into a dedicated 15A circuit—no extension cords.
• Ensure wall-mount or recess framing follows manufacturer’s non-combustible spacing.

Ethanol Fireplaces:

• Must be UL or CSA listed for residential use.
• Minimum room size: typically 200 sq. ft. or larger (for ventilation).
• Maintain 20–24 in clearance above flame area and keep flammable decor away.

Even ventless systems must adhere to air quality, volume, and clearance guidelines—especially in modern airtight homes.

Common Mistakes to Avoid

• Skipping permit applications before work begins.
• Using unlisted components or mixing brands in vent assemblies.
• Installing too close to wood mantels or drywall.
• Blocking vent terminations with landscaping or siding.
• Overlooking manufacturer clearance data assuming “code minimums” apply to all.

A single failed inspection can delay project completion and void appliance warranty.

Pre-Build Code Compliance Checklist

Before installation, confirm that:

• [ ] Manufacturer’s installation guide is on-site and accessible.
• [ ] Local building department approved plans and permits.
• [ ] Non-combustible hearth and wall materials are properly rated.
• [ ] Chimney or vent clearances meet or exceed code.
• [ ] Firestop and termination caps are installed.
• [ ] All electrical/gas lines are inspected before finishing walls.
• [ ] CO and smoke detectors are within 10 ft of fireplace.
