Your fireplace and chimney are more than just a cozy centerpiece—they’re part of a system designed to safely manage heat, smoke, and gases.
Three essential components keep that system working: the chimney cap, liner, and damper.
Together, they protect your home from fire hazards, weather damage, and unwanted airflow loss.
Every safe fireplace has a few unsung heroes above the firebox.
These parts work together to preserve chimney integrity, prevent backdrafts, and ensure that smoke exits properly while fresh air stays where it belongs.

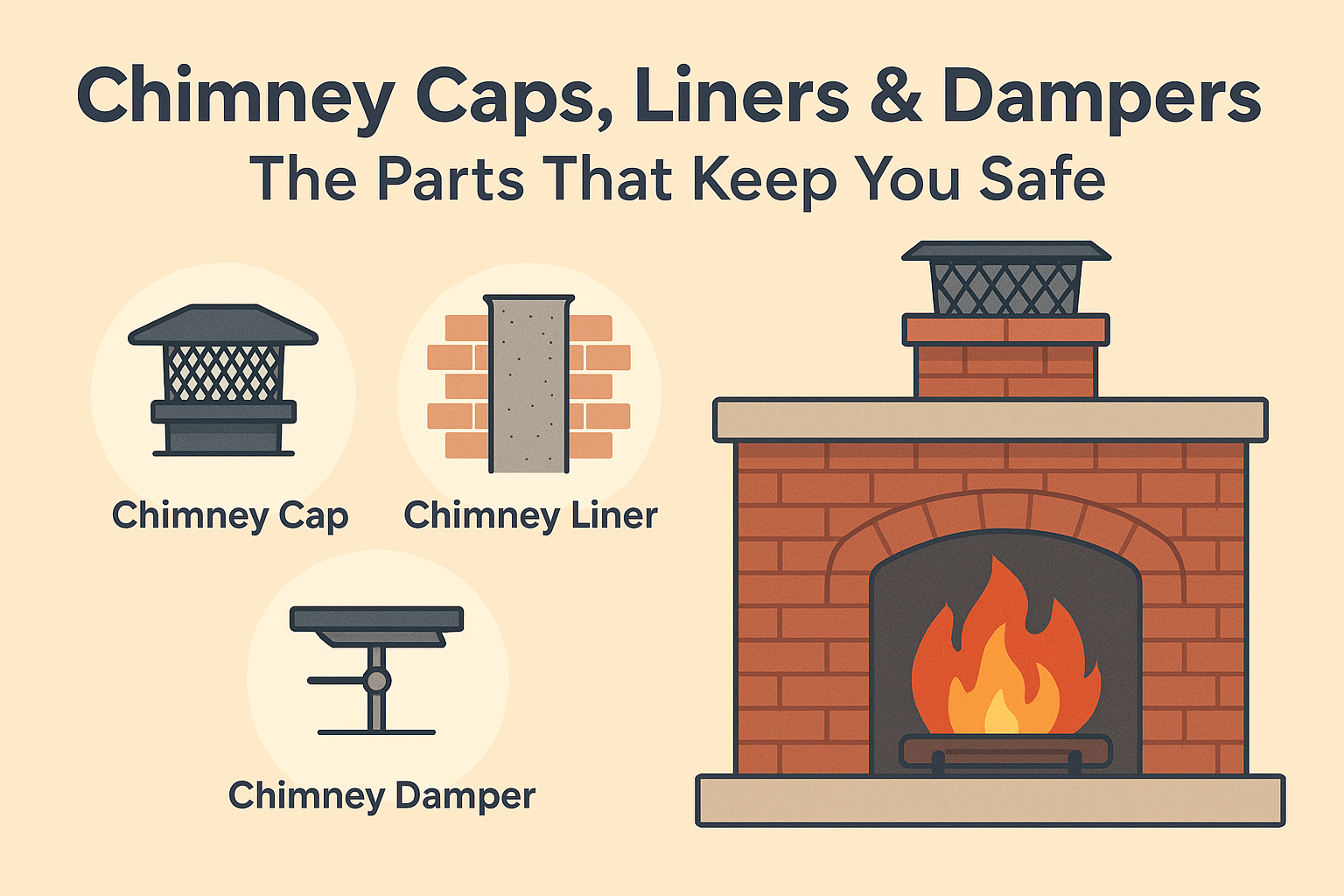

(Visual reference: see the diagram image included above — showing cap, liner, damper, and flue structure.)
A chimney cap sits on top of the flue, shielding it like an umbrella. It’s your home’s first protection against water, debris, wind, and animals. Without one, rainwater can enter the flue, corroding metal liners or creating mold in masonry chimneys.
Types of Chimney Caps:
Average Cost: $150–$500 (depending on size and material)
Shop quality venting accessories in our Chimney & Venting Supplies collection.
Hidden inside the chimney, a liner creates a smooth, insulated channel for smoke and gases. It prevents toxic gases like carbon monoxide from seeping through brickwork and also protects against overheating and creosote buildup.
Common Liner Types:
| Type | Description | Average Lifespan | Cost Installed |
|---|---|---|---|
| Clay Tile | Traditional, economical; found in older homes | 30–50 yrs | $2,000–$3,500 |
| Stainless Steel | Best for gas and wood appliances; durable and flexible | 15–25 yrs | $1,200–$3,000 |
| Cast-in-Place | Poured refractory cement for structural repair | 40+ yrs | $2,500–$5,000 |
Benefits of a Proper Liner:
A damper acts like a valve in your chimney, regulating airflow when your fireplace is in use—or sealing it off when it’s not.
Why Upgrade to a Top-Sealing Damper?
Average Cost: $100–$500 installed
A spark arrestor is often built into modern chimney caps. It’s a fine metal mesh that catches glowing embers before they escape the flue. Many regions in the U.S. and Canada require spark arrestors by law in wildfire-prone zones.
Rain guards serve a similar dual purpose—keeping water out while still allowing smoke to vent freely.
Stainless steel or copper mesh provides the best durability and rust resistance.
Watch for these warning signs during annual inspections:
If any of these appear, schedule a professional chimney sweep or inspection immediately.
| Component | Primary Function | Typical Material | Maintenance | Approx. Cost |
|---|---|---|---|---|
| Chimney Cap | Keeps out water & debris | Stainless steel, copper | Minimal | $150–$500 |
| Chimney Liner | Protects masonry, improves draft | Clay, stainless, cast | Moderate | $1,000–$4,000 |
| Damper | Regulates airflow, prevents heat loss | Cast iron, steel | Low | $100–$500 |
| Spark Arrestor | Stops embers & sparks | Stainless mesh | Minimal | $80–$250 |
Pro Tip: Pair your chimney inspection with a full Seasonal Fireplace Maintenance check for maximum efficiency and safety.
