VALCOURT MANOIR - WOOD FIREPLACE - FP1LM

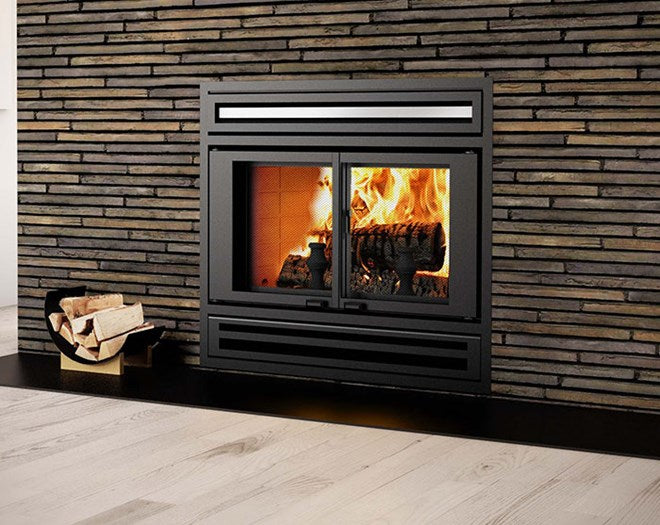

Valcourt Manoir FP1LM Wood Fireplace
The Valcourt Manoir FP1LM is a high-efficiency, traditional wood-burning fireplace designed to provide exceptional heat output with timeless architectural beauty. Engineered for large spaces, the Manoir combines advanced combustion technology with Valcourt’s signature craftsmanship, delivering both warmth and an authentic wood fire experience.
- EPA 2020 certified – clean and efficient burn
- Large double glass doors with cast iron frame
- Optional decorative panel and trim kits available
- High-performance air wash system for clear glass
- Capable of heating large living areas effectively
Quick Facts
- Type: Wood-burning, zero-clearance fireplace
- Heating Capacity: Up to 2,500 sq. ft.
- Maximum Heat Output: 80,000 BTU/h
- Efficiency: ~77%
- Firebox Volume: 4.25 cu. ft.
Technical Specifications
| Brand | Valcourt |
|---|---|
| Model | FP1LM (Manoir) |
| Type | High-efficiency wood fireplace |
| Fuel Type | Dry cordwood |
Performance
| Heating Capacity | Up to 2,500 sq. ft. |
|---|---|
| Maximum Heat Output | 80,000 BTU/h |
| Optimum Efficiency | ~77% |
| Average Particulate Emission Rate | 1.6 g/h |
| Recommended Log Length | Up to 25 inches |
Combustion System
| Firebox Volume | 4.25 cu. ft. |
|---|---|
| Burn Time | Up to 10 hours |
| Air Wash System | Yes, keeps viewing glass clear |
| Chimney Diameter | 8 inches |
Dimensions & Installation
| Overall Dimensions (W×H×D) | 50 ⅝″ × 43 ⅝″ × 31 ⅛″ |
|---|---|
| Viewing Area | 29 ⅞″ × 15 ⅝″ |
| Weight | ~550 lbs |
| Clearances | Zero-clearance certified – minimum framing required |
FAQs
Is the Valcourt Manoir EPA certified?
Yes, it meets the EPA 2020 emission standards for clean wood-burning fireplaces.
Can it be installed in new construction?
Yes, it’s a zero-clearance model designed for both new builds and major renovations.
Does it have an air wash system?
Yes — the air wash system helps maintain clear glass during operation.
What size of logs can it take?
The Manoir FP1LM can accommodate logs up to 25 inches in length.
Can it heat an entire home?
It can effectively heat large open areas up to 2,500 sq. ft. depending on layout and insulation.
Warranty
The Valcourt Manoir FP1LM comes with a limited lifetime warranty on the firebox and select components, ensuring long-term reliability and performance.
Coverage
| Component | Term | Details |
|---|---|---|
| Firebox | Limited Lifetime | Against manufacturing defects |
| Combustion Chamber & Baffles | 10 Years | Under normal residential use |
| Glass & Door Gaskets | 1 Year | Replacement for defective materials |
Conditions
- Applies only to original purchaser and installation address
- Improper use, installation, or modification voids warranty
- Labor, shipping, and incidental costs are excluded
Manuals & Installation
- Manufacturer Resources
- Owner’s & Installation Manual: Available from Valcourt official website
Pre-Installation Checklist
- Confirm framing opening and chimney dimensions
- Install using 8″ chimney system approved for wood fireplaces
- Provide adequate hearth extension and clearances
- Ensure sufficient air intake for combustion
Safety & Compliance
Install and operate in accordance with the manufacturer’s manual and all local building codes. Maintain proper chimney maintenance and annual inspection for safe use.
