Napoleon Elevation 42 — Built-In Electric Fireplace
The Elevation 42 (NEFB42H-MF) is a premium built-in electric fireplace featuring patent-pending triple-layer flame projection, dual-voltage operation, and rich media accents—all without the need for venting. It offers modern controls and heating flexibility in a large, showpiece scale.
- Triple-layer flame effect with flames growing front-to-back and side-to-middle

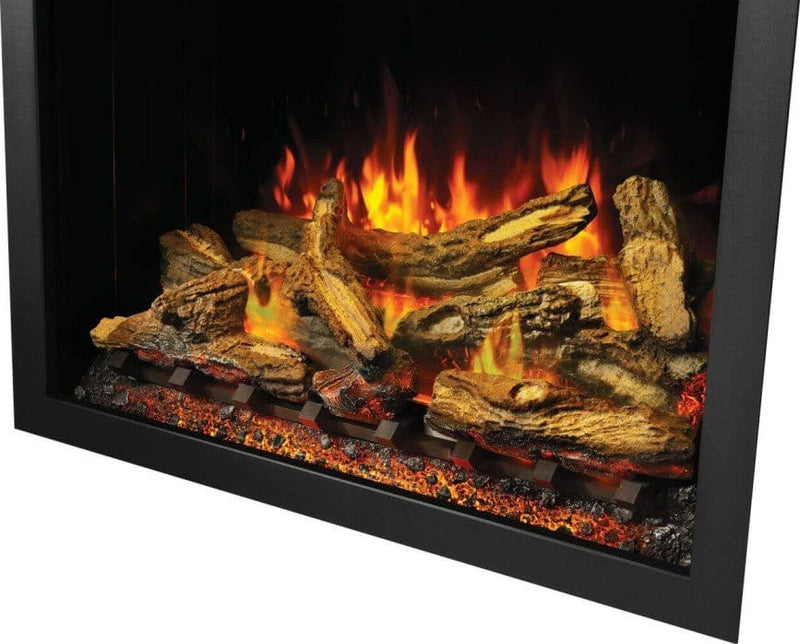

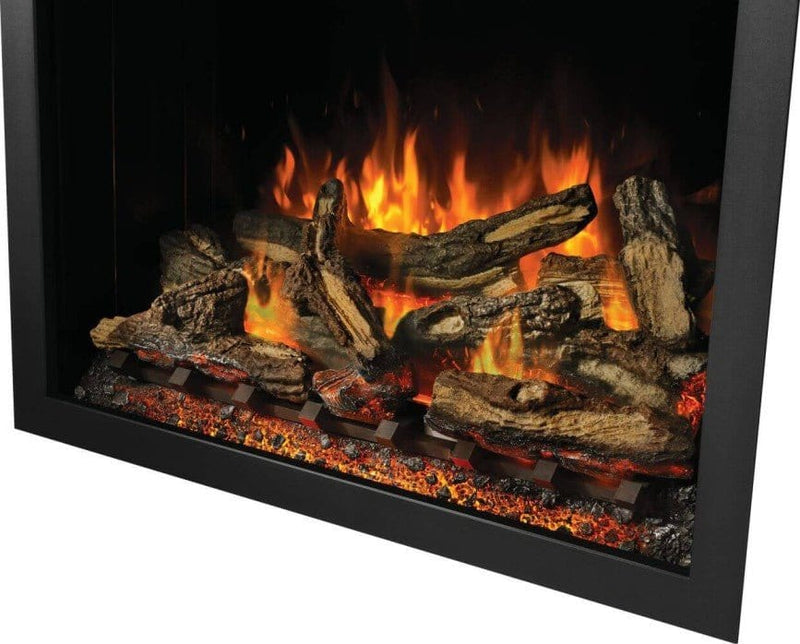

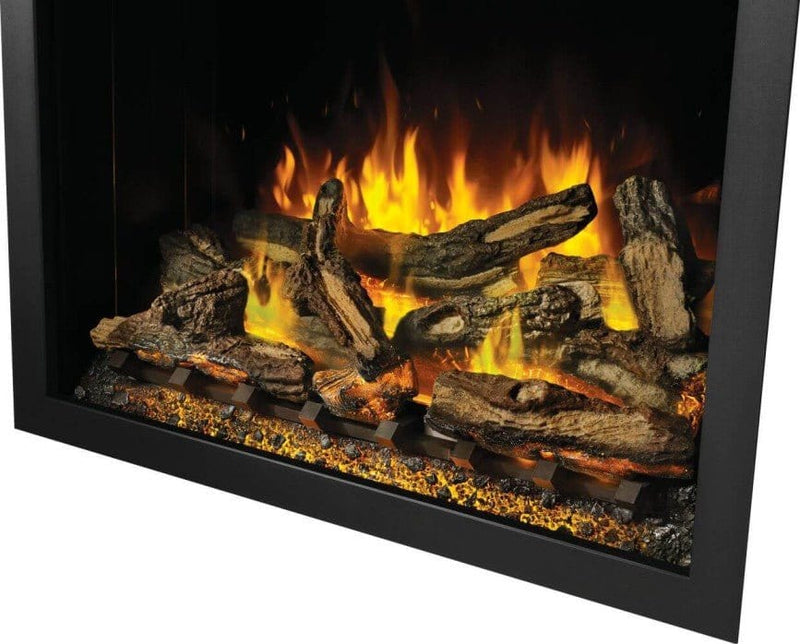

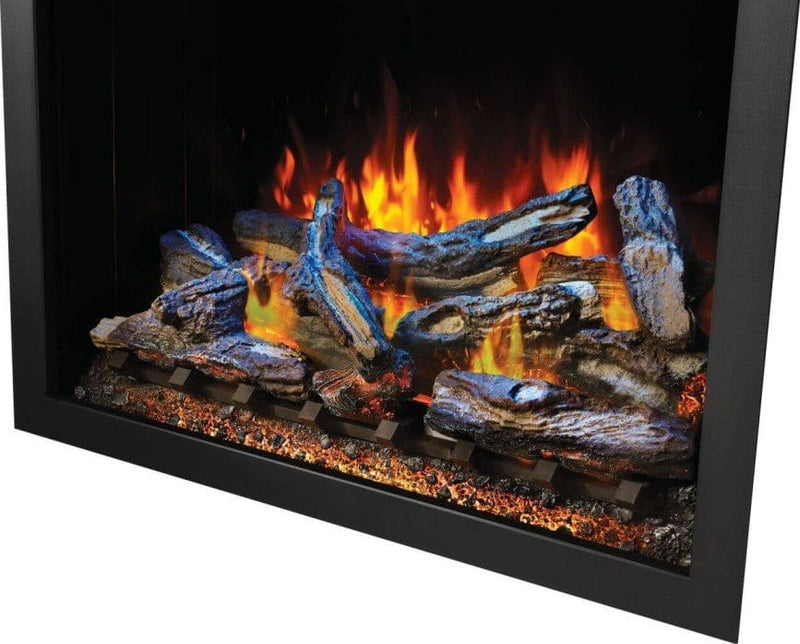

- Premium split oak log media + ember bed with color and brightness customization
- ECO mode for energy savings; BOOST for full heat output

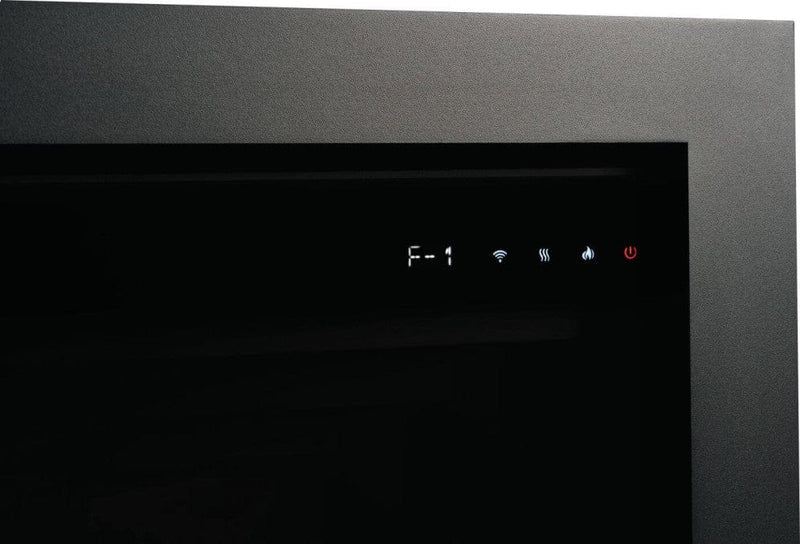

- Controls via remote, app (Napoleon Home), voice (Alexa/Google), or touch panel
Quick Facts
- Heat Output: Up to ~10,000 BTU (≈ 3,000 W)
- Voltage: 120 V or 240 V, hard-wired (≈15 A)
- Weight: 176 lb
- Estimated Heating Capacity: up to ~800 sq ft
- Viewing Area: 41 3/4″ W × 33 1/16″ H
- Warranty: 2-Year Limited
Technical Specifications
| Brand | Napoleon |
|---|---|
| Model | Elevation 42 (NEFB42H-MF) |
Performance
| Max Heat Output | 3,000 W / ≈ 10,000 BTU |
|---|---|
| Voltage / Current | 120 V or 240 V, 15 A hard-wired |
| Modes | ECO & BOOST |
| Flame & Ember Options | Triple-layer flame, adjustable speed & brightness; multiple ember bed & top lighting colors |
| Media | Split-oak logs |
| Operation | Flame & ember can run with or without heat |
Materials & Dimensions
| Dimensions (W×H×D) | 46 3/8″ × 40 3/8″ × 16 1/32″ |
|---|---|
| Viewing Area | 41 3/4″ × 33 1/16″ |
| Framing / Rough-Opening | 45 3/4″ W × 39 9/16″ H × 16 1/4″ D |
| Weight | 176 lb |
Documents (PDF): Installation Manual (PDF)
FAQs
Does it require venting?
No—Elevation 42 is fully electric and vent-free.
What voltage options are available?
Dual-voltage: operates on either 120 V or 240 V, hard-wired (≈15 A).
How much area can it heat?
Up to about 800 sq ft with full 3,000 W output.
Can flame effects run without heat?
Yes—flame and ember bed operations are independent of the heater.
What control methods are included?
Control via premium remote, Napoleon Home app, voice assistants (Google / Alexa), or touch panel on the unit.
What are the flame and lighting customizations?
Triple-layer flame effect, multiple ember bed colors, adjustable brightness and speed, and top lighting color options.
What is the warranty?
2-Year Limited manufacturer warranty covering defects in materials or workmanship for normal residential use.
Warranty
Napoleon Elevation 42 (NEFB42H-MF) — Manufacturer warranty: 2-Year Limited.
Coverage
| Component | Term | Notes |
|---|---|---|
| Entire unit (parts) | 2 years | Defects in material or workmanship under normal residential use. |
Exclusions & Conditions
- Improper installation, misuse, or unauthorized modifications void warranty.
- Original purchaser only; proof of purchase required.
- Labor, shipping, or installation costs generally not covered.
How to Make a Warranty Claim
- Save proof of purchase and model/serial numbers.
- Contact PureFlameCo Support with detailed photos and issue description.
- Obtain manufacturer authorization prior to repair or replacement.
For full warranty document and terms, see the manual or contact support.
Manuals & Installation
- Installation & Operation Manual: Download (PDF)
Pre-Install Checklist
- Prepare dedicated 15 A circuit at 120 V or 240 V per specifications.
- Frame opening to rough-in dimensions: 45 3/4″ W × 39 9/16″ H × 16 1/4″ D.
- Ensure front access and clearance for viewing area and vent slots.
- Check structure supports weight (~176 lb).
- Plan for controls: remote, app, or wall controller as needed.
Compliance & Safety
Must be installed in accordance with Napoleon’s installation instructions and local electrical codes. Refer to the manual for clearance, ventilation, and fire safety guidelines. :contentReference[oaicite:7]{index=7}
Professional installation is strongly recommended, particularly for hard-wired or high output electrical work.
Do not block vents; follow safety barrier and glass temperature warnings in manual. :contentReference[oaicite:8]{index=8}
