Enerzone 28-Inch Solution 1.7 Wood Stove - EB00055
Enerzone Solution 1.7 28-Inch Wood Stove (EB00055)

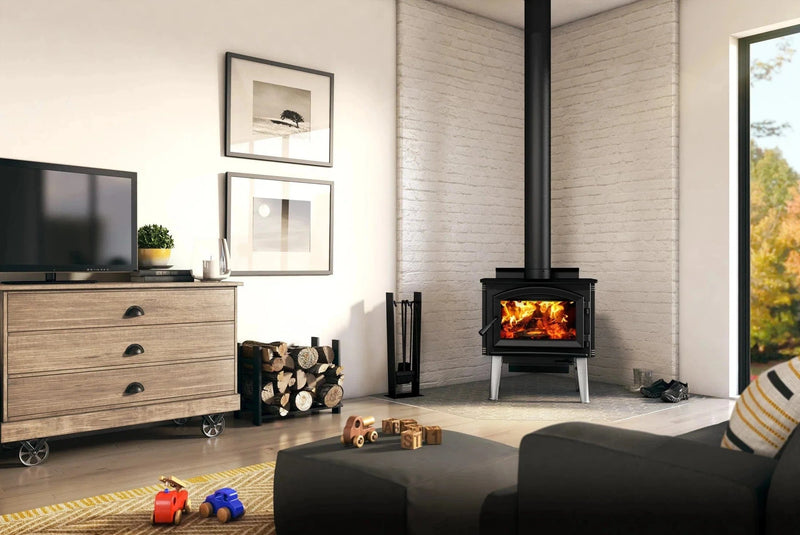

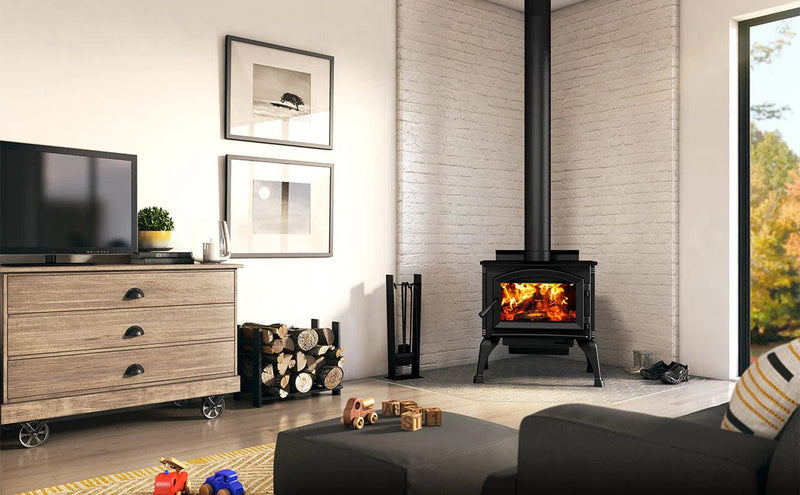

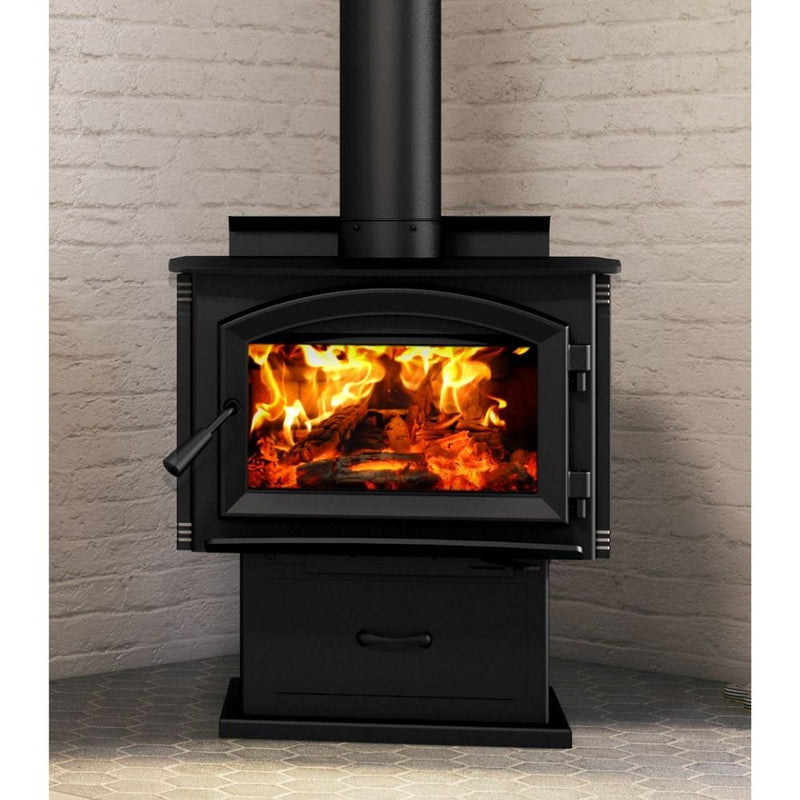

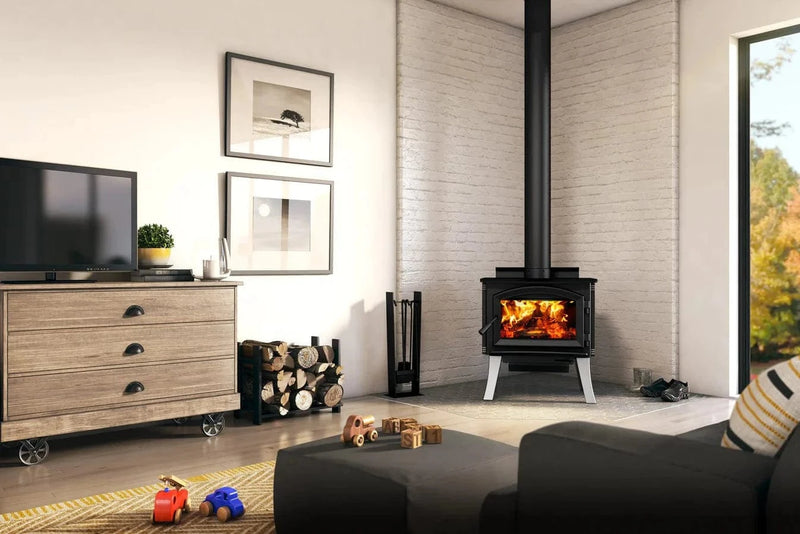

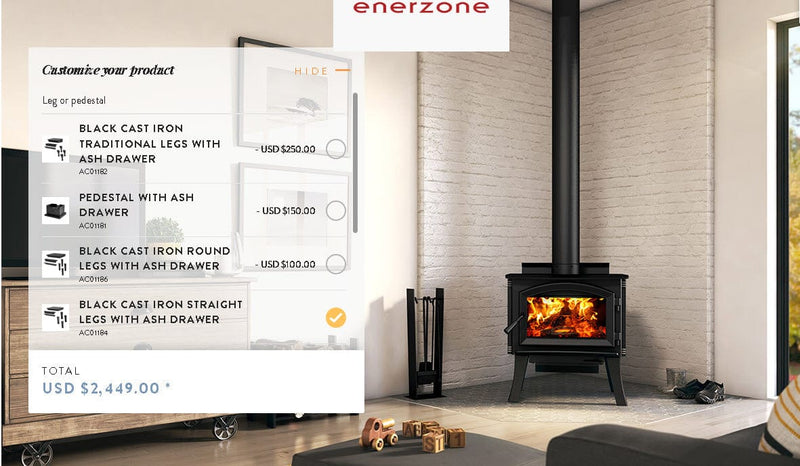

The Enerzone Solution 1.7 is a non-catalytic wood stove engineered for modern homes. It offers up to 65,000 BTU output and a burn time of around 7 hours, delivering efficient heat across 500–1,800 sq ft. Its cast-iron door with ceramic glass, optional blower kit, and multiple leg or pedestal styles make it both functional and customizable. Owner’s / Install Manual (PDF)
- 65,000 BTU max, range 9,800–52,200 BTU
- Burn time up to 7 hours
- Firebox volume: 1.86 cu ft; EPA loading: 1.44 cu ft
- Recommended heating area: 500 to 1,800 sq ft
- Optional 130 CFM blower kit (AC01000)
Quick Facts
- Fuel type: Dry cordwood (16″ recommended), non-catalytic
- Emissions: 2.4 g/h particulate (EPA / CSA cert) at tested loads
- Log length: 16″ recommended, 18″ max
- Flue outlet / chimney size: 6″ diameter
- Dimensions (W×H×D): 28″ × 30⅛″ × 23⅝″
- Glass size: ~15⅞″ × 9⅞″ ceramic glass
Technical Specifications
| Brand | Enerzone |
|---|---|
| Model | Solution 1.7 (EB00055) |
| Type | Wood Stove (non-catalytic) |
Performance
| Max Heat Output | 65,000 BTU/h (dry cordwood) |
|---|---|
| Output Range | 9,800 – 52,200 BTU/h |
| Burn Time (max) | 7 hours |
| Firebox Volume | 1.86 cu ft (EPA loading 1.44 cu ft) |
| Efficiency | ~68% (HHV) / 73% (LHV) |
| Emissions | 2.4 g/h particulate, CO ~103 g/h |
Installation & Clearances
| Clearances (U.S.) | Back: 13″, Side: 10″, Corner: 12″, Hearth floor front: 18″ |
|---|---|
| Clearances (Canada / Double-wall pipe) | Back: 7½″, Side: 10″, Corner: 12″, Hearth front: 16″ |
| Chimney / Flue | 6″ diameter, UL-103 HT or ULC-S629 chimney |
Dimensions & Weight
| Overall Dimensions (W×H×D) | 28″ × 30⅛″ × 23⅝″ |
|---|---|
| Glass Viewing (W×H) | 15⅞″ × 9⅞″ |
| Weight | ~341 lb |
Documents (PDF): Owner / Installation Manual (PDF) · Alternate Manual (PDF)
FAQs
What area can this heat?
Typically covers 500 to 1,800 sq ft, depending on insulation and climate.
How long does a burn last?
Up to about 7 hours under optimal conditions.
Is it EPA-certified?
Yes — tested to meet particulate limits (2.4 g/h). See manual (PDF).
What log sizes can I use?
Recommended 16″ logs; up to 18″ max length.
Does it include a blower?
No — blower is optional (130 CFM kit available, AC01000).
What warranty comes with it?
Limited lifetime warranty for structural components (manufacturer spec).
Warranty
Enerzone Solution 1.7 (EB00055) — Structural components carry a limited lifetime warranty; check manual for full terms.
Coverage
| Component | Term | Notes |
|---|---|---|
| Combustion chamber / stove body | Lifetime (limited) | Structural defects, original owner. |
| Glass & door assembly | Limited term (consult manual) | Manufacturing defects only. |
| Other components & parts | Shorter term (per manual) | Covers items like blower kit, gaskets, etc. |
Exclusions & Conditions
- Warranty valid for original purchaser with proof of purchase.
- Damage from misuse, improper installation, or cleaning voids coverage.
- Labor, shipping, and installation costs are generally not covered.
Manuals & Installation
- Owner / Installation Manual: Download (PDF)
- Alternate Manual: Alternate PDF
From the Manual
“Maximum burn time: 7 hours under standard test conditions.”
“Emissions: 2.4 g/h particulate under EPA / CSA B415.1-10 test.”
Pre-Install Checklist
- Ensure proper chimney rating and height (UL 103 HT / ULC S629).
- Verify minimum clearances to combustibles as per manual.
- Use 6″ flue / connector pipe per specifications.
- Consider installing blower kit wiring and fresh air intake if needed.
- Install stove on certified hearth or floor protection.
Compliance & Safety
Install per the manufacturer’s instructions and applicable codes. Use qualified installers. Maintain venting and inspect annually.
Never block combustion air paths or overfire the unit. Ensure proper wood dryness and follow safe operation guidelines in the manual.
