Dimplex IgniteXL Bold 50-In Smart Linear Electric Fireplace (XLF50-Bold-Smart)

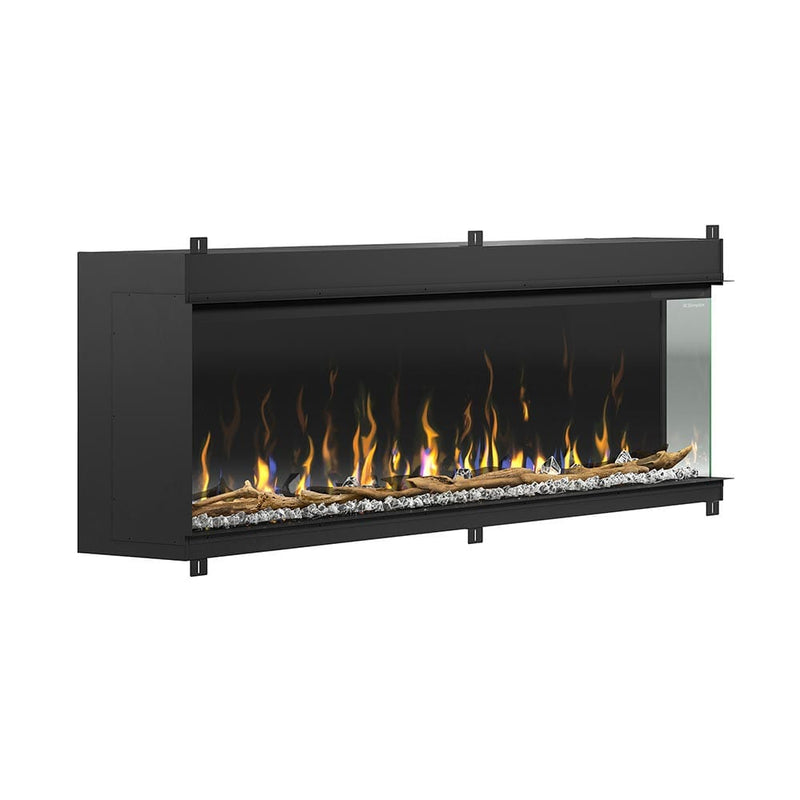

The 50-inch Bold Smart linear fireplace delivers realistic Multi-Fire XD flames, vibrant color media, and dual-voltage heating (1,500/2,500 W). Choose between flame-only ambiance or supplemental heat for up to ~1,000 sq ft. Designed for recessed or built-in applications, no venting is needed. Smart app control, remote, and touch panel included.
- Multi-Fire XD flame technology with color presets and driftwood/ice-like media bed
- Smart controls via app + remote + integrated touch panel
- Dual function: heater + flame-only for all-season enjoyment
- Flexible installation (front, bay, corner, recessed); vent-free
Quick Facts
- Power: 1,500 / 2,500 W • Voltage: 120 / 240 V
- BTU Output: ≈ 5,118 / 8,530 BTU
- Heating Capacity: up to ~1,000 sq ft (supplemental)
- Electrical Draw: ~12.5 A @ 120 V / ~10.4 A @ 240 V
- Dimensions: ~50 7/8″ W × 23 7/8″ H × 12 1/8″ D
- Viewing Area: ~49″ × 16¼″ H
- Weight: ~85 lb
- Warranty: 5-Year Limited Manufacturer Warranty
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | IgniteXL Bold 50 (XLF50-Bold-Smart) |
| SKU / MPN / GTIN | XLF5017-XD / — / — |
Performance
| Power Modes | 1,500 W / 2,500 W |
|---|---|
| Voltage | 120 V / 240 V |
| BTU Output | ≈ 5,118 / 8,530 BTU |
| Heating Capacity | Up to ~1,000 sq ft |
| Flame & Media Features | Multi-Fire XD flame effects; color themes; driftwood & crystal-ice media |
Installation
| Electrical | Hard-wire or optional plug-in; dedicated 120/240 V circuit; ~12.5 A @ 120 V / ~10.4 A @ 240 V |
|---|---|
| Venting | Front-vented; no external chimney or flue required |

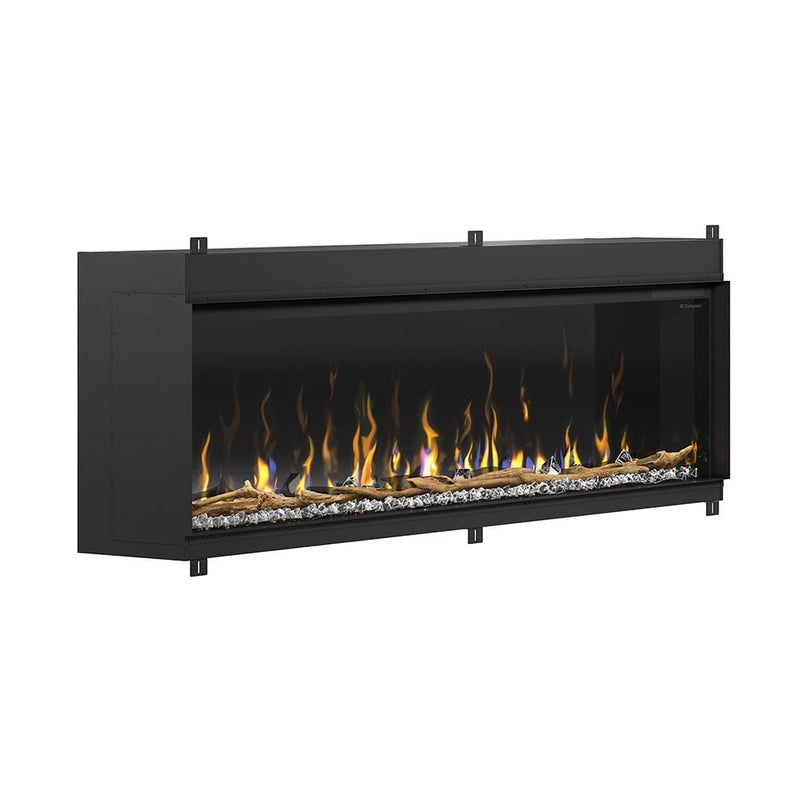

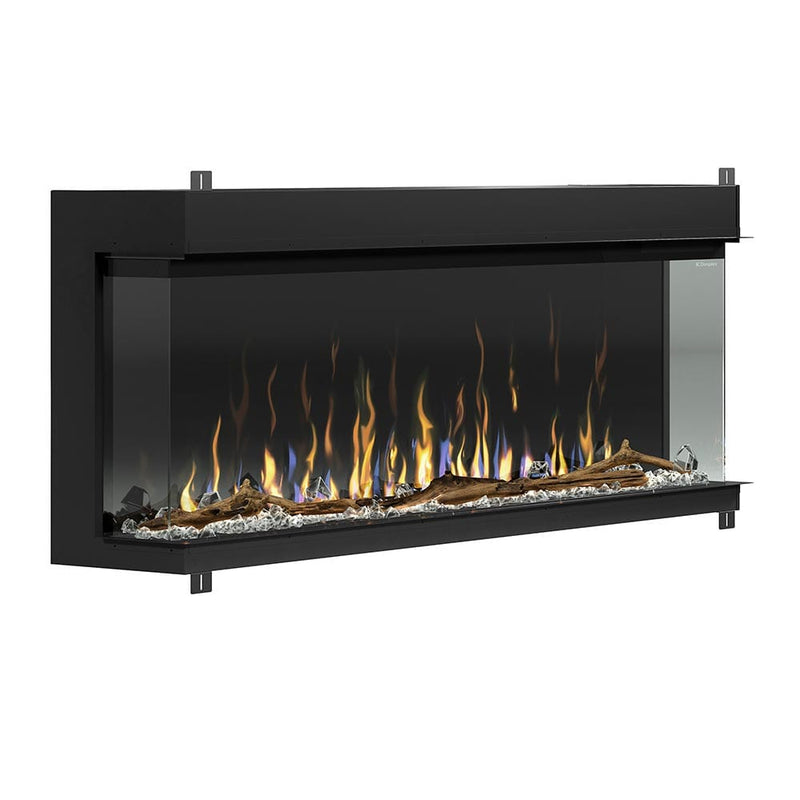

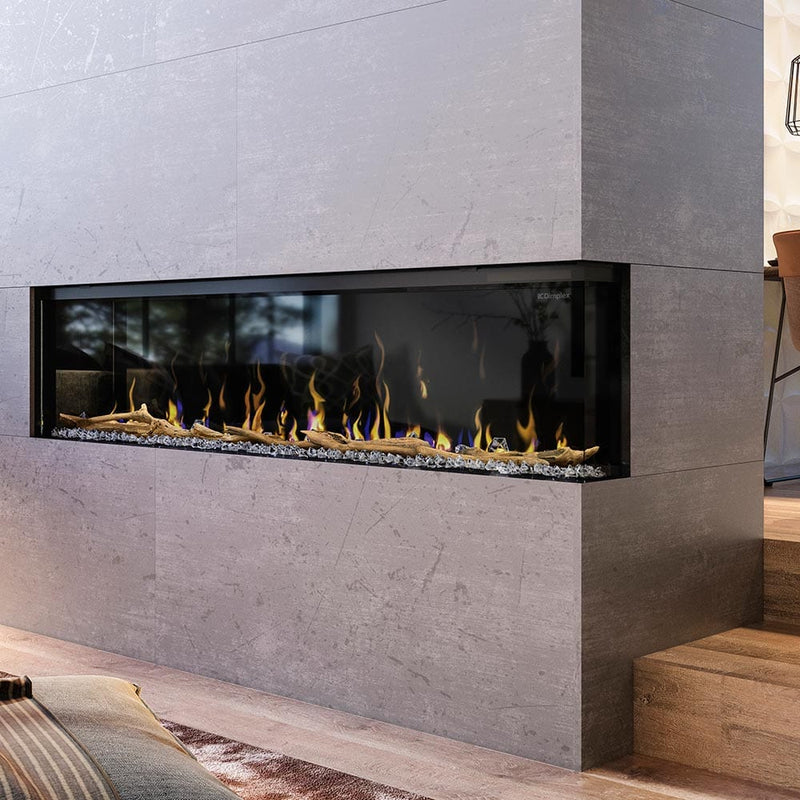

| Mounting Options | Front, bay, corner, or recessed built-in options supported |
Size & Weight
| Overall Dimensions (W×H×D) | ~50 7/8″ × 23 7/8″ × 12 1/8″ |
|---|---|
| Viewing Area | ~49″ × 16¼″ H |
| Weight | ~85 lb |
Documents (PDF): Owner’s & Installation Manual (PDF) · Spec Sheet (PDF)
FAQs
Can I use the flame without heat?
Yes — the flame and media features work independently, allowing year-round use.
What electrical setup is required?
A dedicated 120 V or 240 V circuit is required. Draw is ~12.5 A @ 120 V or ~10.4 A @ 240 V. See manual for details.
How much space will it heat?
Provides supplemental heat for up to ~1,000 sq ft depending on climate and insulation.
Is venting required?
No — front venting eliminates the need for a chimney or external flue.
What installation styles are supported?
Front, bay, corner, or recessed built-in configurations are supported.
What is the warranty coverage?
5-Year Limited Manufacturer Warranty covering defects in parts and workmanship.
What is the estimated operating cost?
Cost/hr = (watts ÷ 1,000) × local electricity rate. Example: 2,500 W ≈ 2.5 × your kWh rate.
Warranty
Dimplex IgniteXL Bold 50-Smart (XLF50-Bold-Smart) — Manufacturer warranty: 5-Year Limited.
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Heater / Controls | 5 years | Parts & workmanship under normal residential use. |
| Finish / Media / Glass | 5 years | Covers defects; excludes misuse or improper maintenance. |
Exclusions & Conditions
- Valid only for original purchaser with proof of purchase.
- Damage due to misuse, improper installation, or alterations voids coverage.
- Labor, shipping, and incidental installation costs not covered unless stated.
Manuals & Installation
- Owner’s & Installation Manual: Download (PDF)
- Spec Sheet: Download (PDF)
From the Manual
“Volts: 120/240 V • Watts: 1,500 / 2,500 W • Amps: 12.5 / 10.4.”
“Viewing area: 49″ W × 16¼″ H, depth 12 1⁄8″.”
Pre-Install Checklist
- Frame opening approx. 51 3/8″ W × 24¼″ H × 11 5/8″ D minimum
- Dedicated 120 V or 240 V circuit per specs
- Ensure structural support for ~85 lb weight
- Leave vents and glass unobstructed; provide service access
Compliance & Safety
Follow manufacturer instructions and local building/electrical codes. Use a licensed electrician for hardwired setup.
Disconnect power before servicing. Glass remains cool; heater and vents may warm — follow clearance guidelines in manual.
