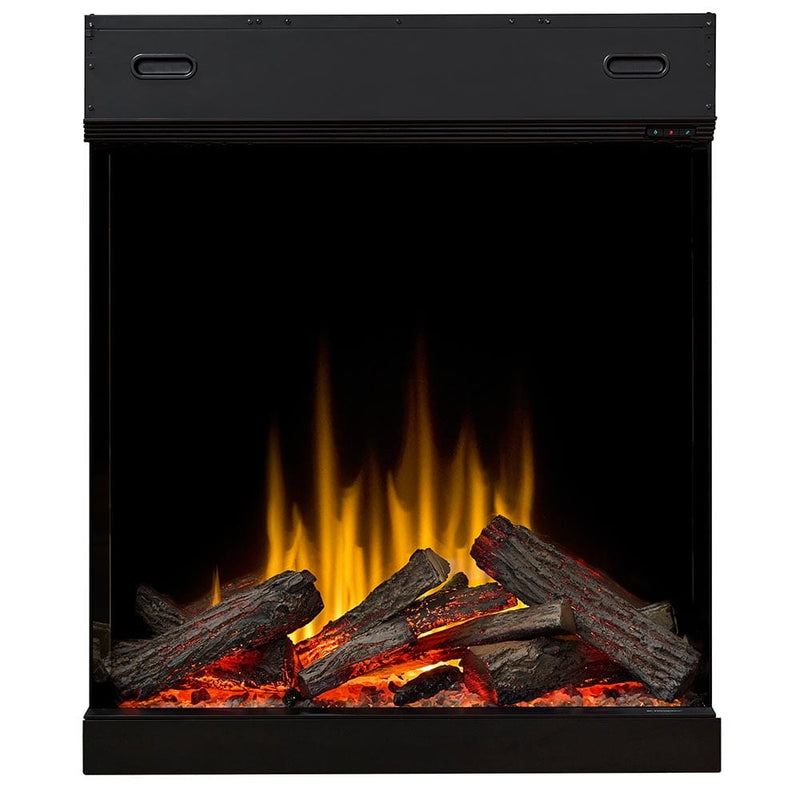

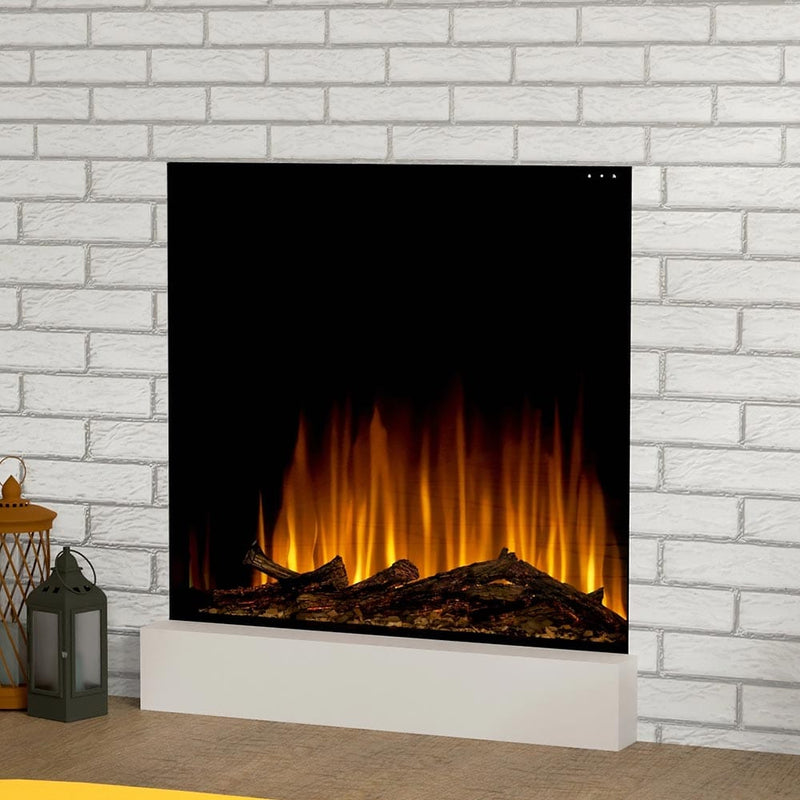

Dimplex Ignite Aspire 36-in Electric Firebox
Description
Dimplex Ignite Aspire 36-in Electric Firebox
The Ignite Aspire Electric Firebox redefines the traditional fireplace with two new technologies: Dynamic-Fire Flame Effect and highly advanced Rhythmic Logs with inner glow technology. The mesmerizing new flame effect delivers a true fire experience with lifelike logs and embers that pulse in sync, new natural flame colors, and authentic crackling wood sounds. Plus, the amazing new Quick Connect logs are moveable for a customizable look. Smartly designed in four typical gas fireplace sizes, Ignite Aspire is a simple, environmentally friendly replacement to natural gas units.
- New Dynamic-Fire Flame Effect for realistic flames
- Inner glow logs with pulsing effect
- Quick Connect logs for customization
Quick Facts
- Dimensions: 36 9/16" W x 43 1/2" H x 17 1/2" D
- Heating Area: Up to 1000 sq ft
- Warranty: 5-Year Parts & Service
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | ASP36 |
| SKU/MPN/GTIN | 477477 / ASP36 / 00781052152922 |
Performance
| Power | 1500/2500 Watts |
|---|---|
| Voltage | 120V / 240V |
| BTU | 5118 / 8530 |
| Heating Capacity | 400 sq ft (120V) or Up to 1000 sq ft (240V) |
| Flame Features | Dynamic-Fire Flame Effect |
Installation
| Electrical Requirements | Hard Wired or 120V Plug (Plug Included) |
|---|---|
| Venting | Front Vents |
| Mounting | Built-in |
Size & Weight

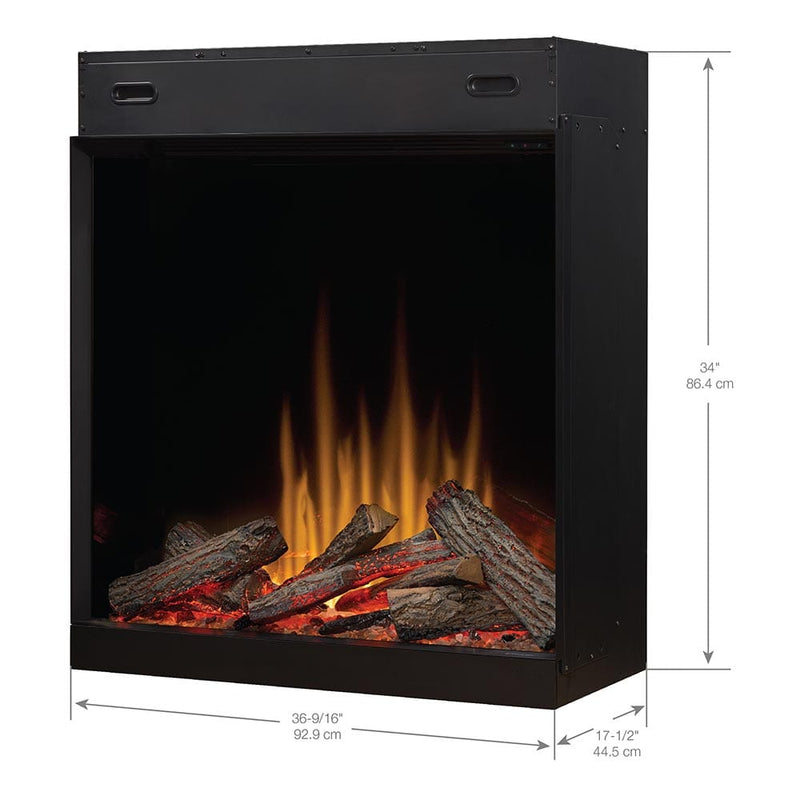

| Dimensions W×H×D | 36 9/16" W x 43 1/2" H x 17 1/2" D |
|---|---|
| Viewing Area | 36" W x 34" H x 9" D |
| Weight | 98 lbs |
FAQs
What is the coverage area of this fireplace?
The Ignite Aspire 36-in Electric Firebox can heat up to 1000 sq ft.
What are the electrical setup requirements?
It can be hard-wired or plugged into a standard 120V outlet using the included plug.
Does this fireplace require venting?
No, it uses front vents for heat dispersion.
How is the fireplace installed?
The fireplace is designed for built-in mount installation.
What are the control options for this fireplace?
It can be controlled via Flame Connect mobile app, a multi-function remote control, or onboard controls.
What is the cost to operate this electric fireplace?
The operational cost depends on the local electricity rate and usage. It's energy-efficient and offers Comfort$aver® Heating.
Is maintenance required for this electric fireplace?
Minimal maintenance is required. Ensure the vents are clean and keep the unit dust-free.
Warranty
Manufacturer's Limited Warranty
| Component | Term | Notes |
|---|---|---|
| Parts | 5 Years | Includes service. |
Exclusions & Conditions
- Physical damage is not covered.
- Improper installation voids warranty.
- Routine maintenance is the owner's responsibility.
Manuals & Installation
No manual available.
From the Manual
Ensure that the installation adheres to local codes and standards for electrical and gas units.
- Frame opening: 36 3/4" W x 44" H x 18" D
- Circuit requirements: 120V or 240V dedicated circuit recommended.
Compliance & Safety
Professional installation is recommended to ensure safety and compliance with local building codes.
