WATERLOO - WOOD FIREPLACE - FP15

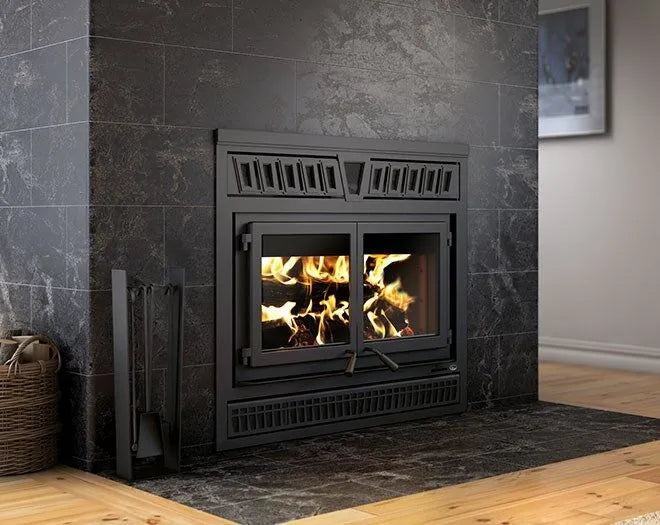

Valcourt FP15A Waterloo — High-Efficiency Wood Fireplace
The Valcourt FP15A Waterloo is a substantial EPA-certified wood fireplace designed to deliver powerful, efficient heating with a commanding visual impact. Its expansive 4.28 cu ft firebox and low emissions (1.6 g/hr) make it ideal for large™, well-insulated living spaces.
- Large 4.28 cu ft firebox holds up to 60 lb of wood
- Automated air-control ensures clean, efficient combustion
- Burns up to 11 hours for steady, long-lasting warmth
- Double ceramic-glass doors with air-wash keep the view clear
Quick Facts
- BTU: 95,000
- Heats up to: 2,800 sq ft
- Burn time: 11 hrs
- Emissions: 1.6 g/hr — EPA Certified
- Type: Non-catalytic
- Manual: Download (PDF)
Technical Specifications
| Brand | Valcourt |
|---|---|
| Model | FP15A Waterloo |
Performance
| BTU | 95,000 |
|---|---|
| Heating Capacity | 1,000–2,800 sq ft |
| Burn Time | 11 hrs |
| Emissions | 1.6 g/hr — EPA Certified |
| Combustion Type | Non-catalytic |
Clearances & Installation
| Rear / Side Mantle / Side Wall / Shelf | 84″ (ceiling) / 8″ / 24″ / per manual |
|---|---|
| Flue Diameter | 8″ |
| Venting | Class A chimney (UL127, ULC-S610) |
| Outside Air Kit | Included |
Materials & IDs
| Firebox | Steel with refractory bricks |
|---|---|
| Glass | Double ceramic with air-wash |
| Dimensions (W×H×D) | 50 ¾″ × 43 ⅜″ × 31 ⅝″ |
| Firebox Volume | 4.28 cu ft |
| Weight | 545 lb |
| Blower Compatible | Yes (176 CFM included) |
| Ash Pan | No |
| SKU / MPN / GTIN | FP15A / FP15A / — |
Documents (PDF): Owner’s Manual · Quick Install Guide
FAQs
What room size will this heat?
Plan ~20-25 BTU per sq ft. This model heats up to approximately 2,800 sq ft. Adjust for your insulation and climate.
Is it EPA-certified?
Yes — EPA certified with emissions of only 1.6 g/hr. See the manual (PDF) for test data.
Catalytic vs. non-catalytic — what’s the difference?
Non-catalytic: simpler use with vibrant flames; emissions are controlled by an automated secondary-air system—not a catalytic combustor.
Is an Outside Air Kit required?
Yes — a Fresh Air Intake is included and recommended for tight homes to maintain proper draft.
What clearances should I plan?
See the Specs tab for full clearance requirements. Always follow the manual (PDF).
Does it come with a blower?
Yes — a 176 CFM blower is included to efficiently move heat into living areas.
What’s the warranty?
Valcourt offers a limited lifetime warranty on the firebox with defined shorter terms for components. See the warranty tab for full details.
Warranty
Valcourt FP15A Waterloo — Manufacturer warranty summary: Limited lifetime coverage on the firebox with specific terms for internal parts and finishes.
Coverage
| Component | Term | Notes |
|---|---|---|
| Combustion chamber (welds/castings) | Lifetime | Original purchaser; structural only |
| Baffle, bricks, air controls | 5 years parts / 3 years labour | One-time replacement |
| Controls & glass | 2 years parts / 1 year labour | Includes blowers, sensors |
| Paint, gaskets, insulation, bricks | 1 year | Wear items |
Exclusions & Conditions
- Void if improperly installed, misused, over-fired, or burned non-approved fuel
- Proof of purchase required; coverage applies to original purchaser only
- One-time replacement per lifetime components
- Labour and transport are limited per manufacturer’s schedule
- Warranty void if non-authorized parts used or unauthorised repairs performed
How to Make a Warranty Claim
- Retain your purchase receipt and note model/serial.
- Contact PureFlameCo Support with photos and issue description.
- Obtain manufacturer authorization before repair or replacement.
Official Documents (PDF): Warranty Info (see PDF)
If warranty terms could not be verified in a PDF, please contact support for confirmation.
Manuals & Installation
- Owner’s Manual & Installation Guide: Download (PDF)
- Quick Install Reference Guide: Download (PDF)
- Faceplate Installation Instructions: View in listing (PDF available there)
Pre-Install Checklist
- Tape measure, level, drill/driver
- Class A chimney components (8″ diameter)
- Non-combustible hearth pad
- High-temperature sealant
- Fresh air intake and blower installation hardware
Compliance & Safety
Professional installation by a certified technician is required to ensure safe, compliant performance.
Installation must meet UL127, ULC-S610, CSA B415.1-10, and all local code requirements.
Please check with your local authority if a building or installation permit is needed before starting.
