Empire Rushmore insert 35" - DVCT35CBN95N/P
Empire Rushmore 35″ Direct Vent Gas Insert (DVCT35CBN95)

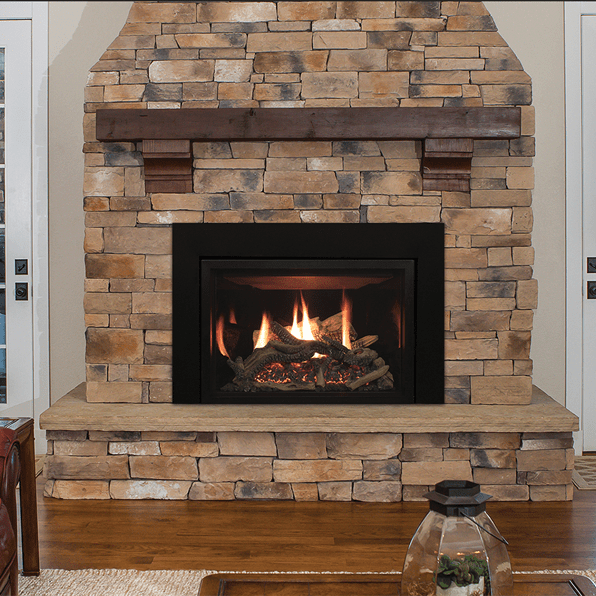

The Rushmore 35 gas insert offers a larger viewing area and the same TruFlame® dual-burner technology for lifelike flames. With a maximum output of ~34,500 BTU, it converts existing masonry fireplaces into efficient focal points. Standard features include blower, accent lighting, multifunction remote, and clean-face design for seamless integration into living spaces.
- Up to ~34,500 BTU (natural gas) / ~34,000 BTU (propane)
- Flame-only mode or heat with TruFlame burners
- Standard blower and accent lighting
- Clean-face, flush-fitting design
- Multifunction remote with thermostat, blower, light, and flame control
Quick Facts
- Fuel: Natural Gas / Propane
- BTU Range: ~34,500–10,000 (NG) / ~34,000–12,000 (LP)
- Venting: Direct Vent 5″ × 8″ (coaxial)
- Viewing Glass: ~30.5″ W × ~20″ H (approx.)
- Includes blower, accent lighting, and remote
- Warranty: 10-year combustion / lifetime glass / 3 years parts
Technical Specifications
| Brand | Empire |
|---|---|
| Model | DVCT35CBN95 Insert |
| Type | Direct Vent Gas Insert |
Performance
| Max / Min BTU (NG) | 34,500 / 10,000 BTU/h |
|---|---|
| Max / Min BTU (LP) | 34,000 / 12,000 BTU/h |
| Fuel Options | Natural Gas or Propane |
| Ignition / Controls | Electronic ignition with multifunction remote (thermostat, flame, blower, light) |
Installation & Venting
| Venting | Direct vent, 5″ × 8″ coaxial |
|---|---|
| Minimum Fireplace Opening | ~26″ width × ~34″ height × ~18″ depth (per spec)† |
| Insert Depth / Profile | ~17½″ depth inside opening† |
| Glass Viewing Area | ~30.5″ W × ~20″ H† |

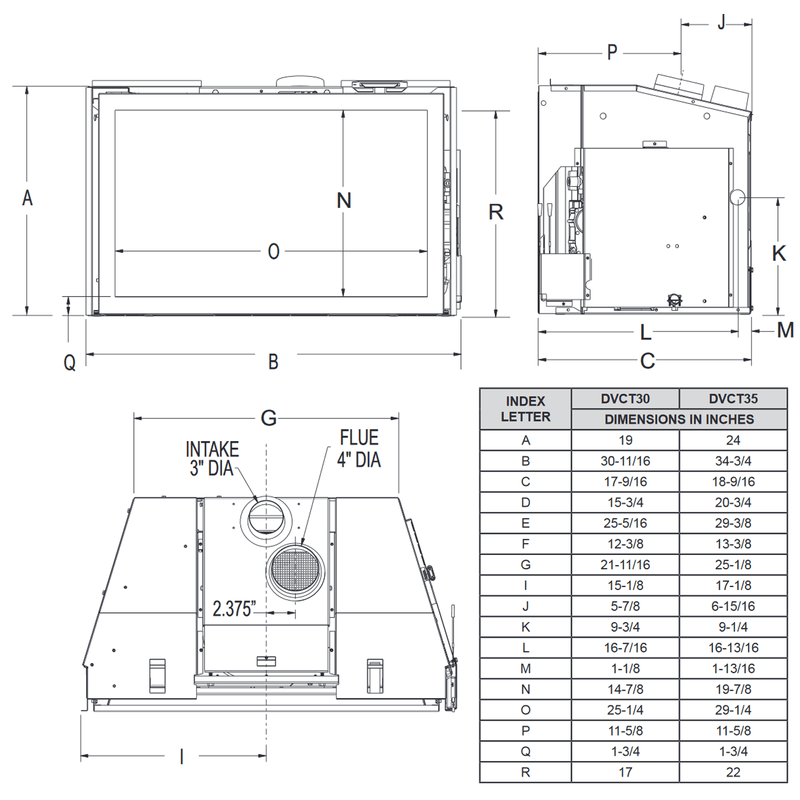

Dimensions & Weight
| Dimensions (W×H×D) | ~35″ W × ~25″ H × ~17½″ D |
|---|---|
| Weight | ~115 lb |
Documents (PDF): Brochure / Spec Sheet (PDF) · Owner’s & Installer Manual (PDF)
FAQs
Does the Rushmore 35 have flame-only mode?
Yes — flames can run independently without heat.
What venting does it use?
A 5″ × 8″ coaxial direct vent system is required.
What BTU does it deliver?
Up to ~34,500 BTU on natural gas and ~34,000 BTU on propane.
Is a blower included?
Yes — blower and accent lighting are standard features.
What fuel options are available?
Available in natural gas or propane configurations.
What warranty is included?
10-year combustion chamber, lifetime glass, 3 years on parts.
Warranty
Empire Rushmore DVCT35CBN95 — Limited warranty: 10-year on combustion chamber, lifetime on glass, 3 years on other parts.
Coverage
| Component | Term | Notes |
|---|---|---|
| Combustion Chamber / Firebox | 10 years | Structural defects under normal residential use. |
| Glass / Barrier Screen | Lifetime | Manufacturer defects only. |
| Other Parts (blower, electronics, logs, remote) | 3 years | Warranty applies to components only. |
Exclusions & Conditions
- Applies only to the original purchaser with proof of purchase.
- Improper installation, misuse, or alterations void warranty.
- Labor, shipping, or installation costs are not covered unless specified.
Manuals & Installation
- Owner & Installer Manual: Download (PDF)
- Brochure / Spec Sheet: Download (PDF)
From the Manual
“Maximum Input (NG): 34,500 BTU/h; Propane: 34,000 BTU/h.”
“Warranty: 10-year limited combustion chamber, lifetime glass, 3-year parts.”
Pre-Install Checklist
- Verify fireplace opening meets minimum dimensions (~26″ W × 34″ H × 18″ D).
- Install approved 5″ × 8″ direct vent piping.
- Provide proper gas line and electrical for blower.
- Install barrier screen; follow clearance and safety codes strictly.
Compliance & Safety
Follow manufacturer manual and local codes. Use certified installers for gas/vent work. Maintain annual inspections and keep vents clear.
Do not block air intake/outlet. Use only correct fuel type. Handle glass, logs, and components with care per manual.
