Empire Gateway 1700 Wood Burning Stove - WB17FS
Empire Gateway 1700 — Wood Burning Stove
The Gateway 1700 wood stove delivers up to 65,000 BTU of heat with a 6-hour burn time, supporting efficient zone heating in 500–1,800 sq ft areas. EPA Phase II certified for clean operation, this non-catalytic stove offers a no-mess ash pan and air-wash glass system for low maintenance. It’s freestanding, durable in steel, and ideal for homes needing dependable supplemental heat.
- High output: up to 65,000 BTU to warm medium to large rooms
- Non-catalytic design with air-wash improves glass clarity and ease of use
- No-mess ash pan simplifies cleanup
- EPA 2020 certified for low emissions
Quick Facts
- Heating Area: 500 to 1,800 sq ft
- Burn Time: ~6 hours
- Type: Non-catalytic combustion
- Max Log Length: 18″
- Firebox Volume: 1.9 cu ft
- EPA Compliance: Phase II, meets 2020 cordwood standard
- Manual: Download (PDF)
Technical Specifications
| Brand | Empire |
|---|---|
| Model | Gateway 1700 (WB17FS) |
Performance
| Max Heat Output | 65,000 BTU/h |
|---|---|
| Heating Capacity | 500 – 1,800 sq ft |
| Burn Time | ~6 hrs |
| Combustion Type | Non-catalytic |
| Firebox Volume | 1.9 cu ft |
| Log Length | Up to 18″ |
Installation
| Flue Diameter | 6″ |
|---|---|
| Mounting | Freestanding |
| Clearances & Floor Protection | See the manual (PDF) |
Materials & Dimensions
| Body Material | 5/16″ heavy gauge steel |
|---|---|
| Glass Type | Ceramic glass with air-wash system |
| Dimensions (W×H×D) | 24⅛″ × 29½″ × 18¾″ |
| Weight | ~225 lb |
Documents & Support: Owner’s / Installation Manual (PDF)
FAQs
Is this stove EPA-certified?
Yes — the Gateway 1700 is EPA Phase II certified (2020 cordwood standard).
How long will the burn last?
Approximately 6 hours under typical operation.
What size logs fit?
Logs up to 18″ in length.
Do I need a chimney?
Yes — connects to a 6″ flue. Use appropriate chimney & connector per manual.

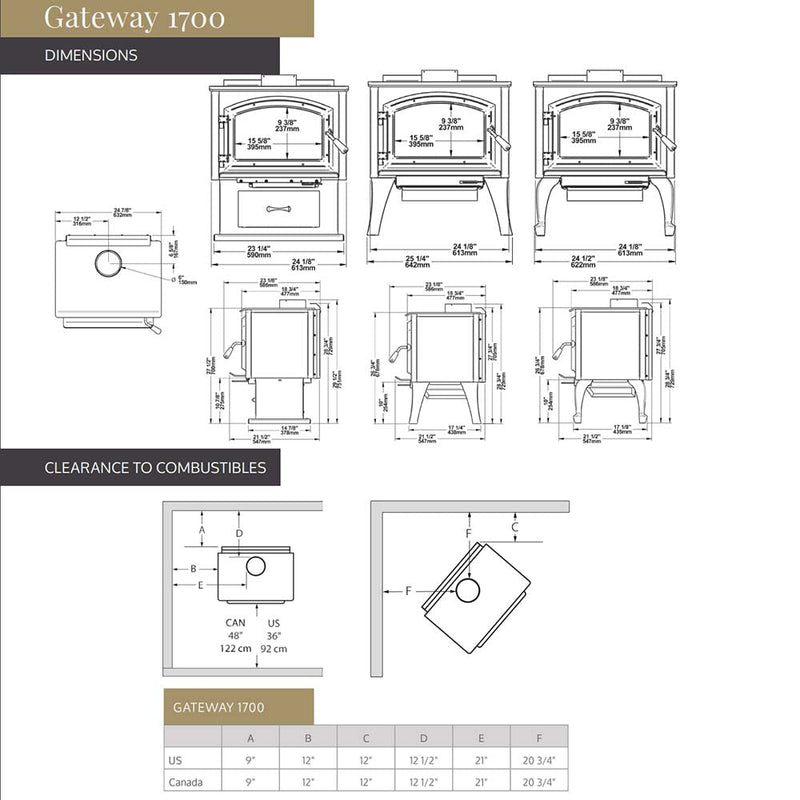

What clearances are required?
Refer to the Manual (PDF) for full clearance tables for walls, ceiling, and hearth.
Is a blower included?
No — the stove supports optional blower kits. See the manual for compatibility.
What is the warranty coverage?
Coverage ranges by component: e.g. lifetime for combustion chamber welds and cast door frame. See manual for full details.
Warranty
Empire Gateway 1700 (WB17FS) — Manufacturer warranty: limited lifetime & tiered coverage depending on part. See manual PDF.
Coverage
| Component | Term | Notes |
|---|---|---|
| Combustion chamber welds, cast door frame | Lifetime | Defects in materials & workmanship |
| Surrounds, heat shields, ash drawer, baffle, support parts | 7 years | Manufacturing defects |
| Handles, glass retainers, control parts | 5 years | Mechanical / wear components |
| Electrical / blower / sensors | 2 years | Standard & optional accessories |
| Paint, gaskets, firebricks | 1 year | Wear items |
Exclusions & Conditions
- Original purchaser with proof of purchase only.
- Misuse, improper installation, alterations invalidate warranty.
- Labor, shipping, installation not covered unless specified.
Manuals & Installation
- Installation & Operation Manual: Download (PDF)
From the Manual
“Recommended heating area: 500 to 1,800 ft².”
“Complies with US EPA Phase II standard; non-catalytic design.”
Pre-Install Checklist
- Ensure proper chimney and connector (6″ flue, rated for solid fuel).
- Provide correct clearances to combustibles per manual.
- Support base and flooring per weight and hearth requirements.
- Confirm fresh-air supply if in tightly sealed or mobile home installations.
Compliance & Safety
Install to local building & fire codes and follow manual instructions. Use certified installers. Permit may be required.
Do not operate if damaged. Never burn unapproved materials. Keep combustibles away. Use CO detectors.
