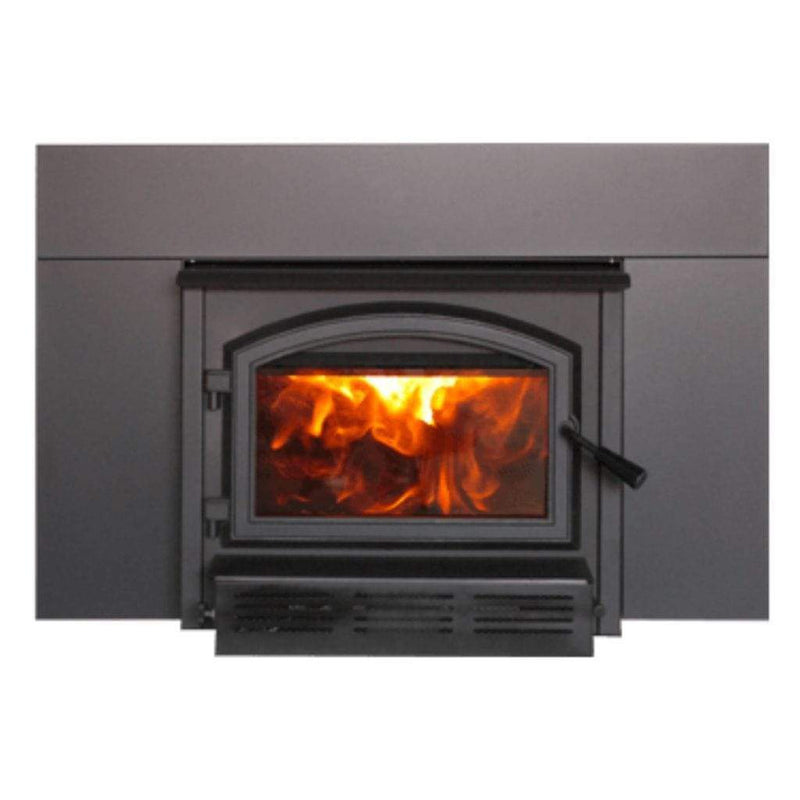

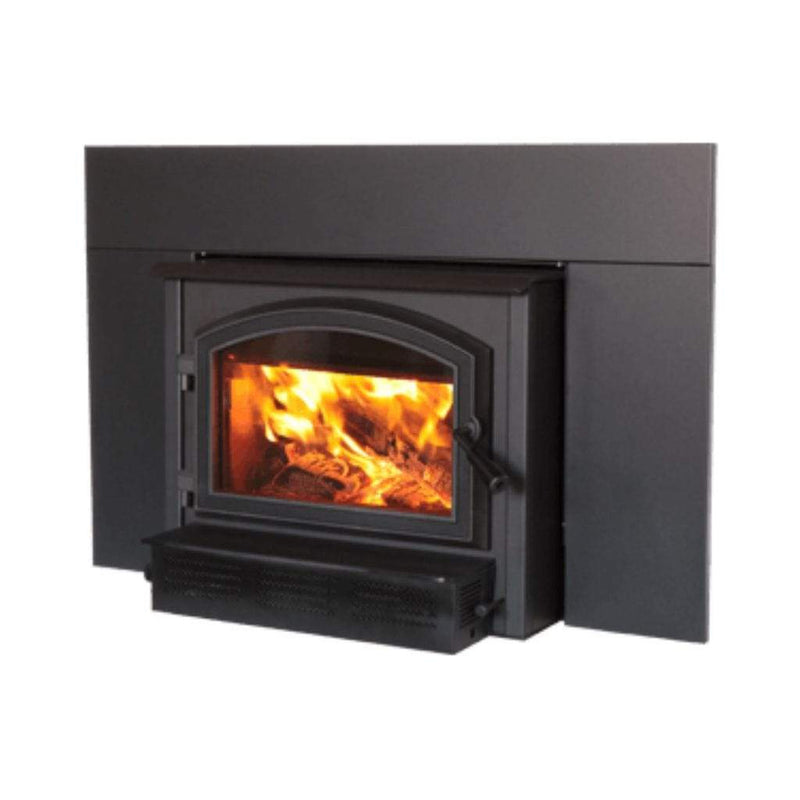

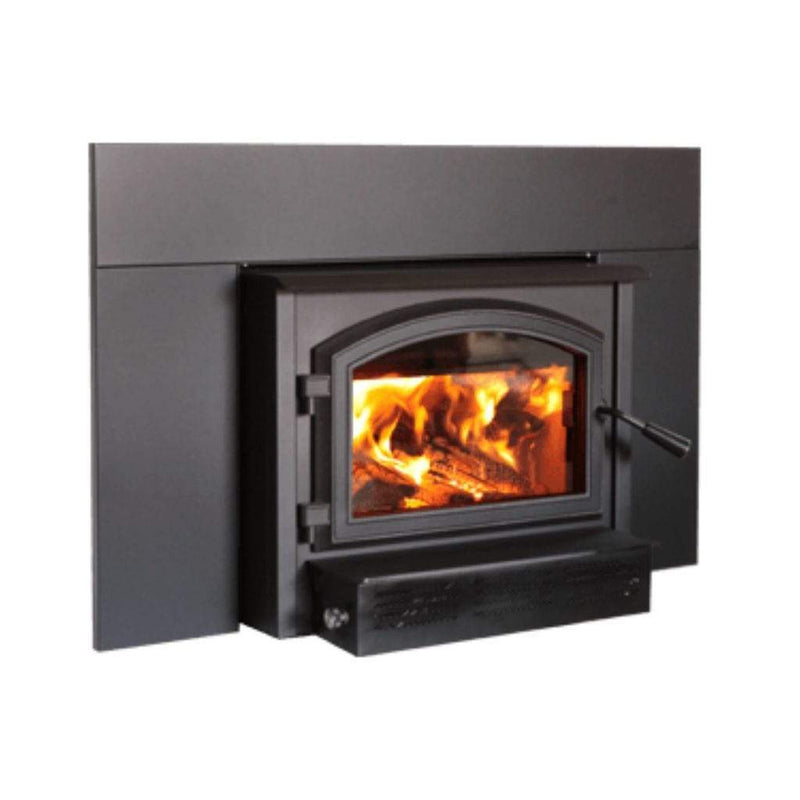

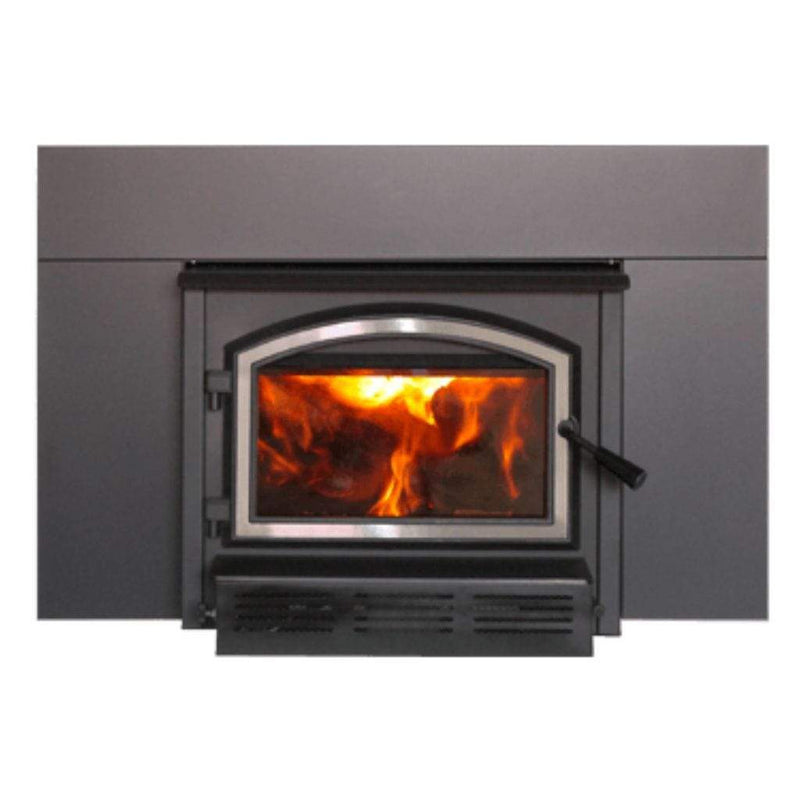

Empire Archway 2300 29" Wood Burning Insert - WB23IN
Empire Archway 2300 29" Wood Burning Insert (WB23IN)
The Archway 2300 is a 29-inch wood-burning insert built for efficiency, style, and long-lasting heat. With a firebox volume of 2.4 cu ft, it can heat spaces up to ~2,500 sq ft. Featuring a large arched glass viewing door, EPA-certified clean combustion, and an included blower, it provides supplemental warmth while upgrading your existing masonry fireplace.
- EPA-certified clean burn performance
- 2.4 cu ft firebox with up to 8-hour burn time
- Includes blower for better heat circulation
- Heats up to ~2,500 sq ft (supplemental)
- Classic arched 29" glass door design
Quick Facts
- Heating Capacity: up to 2,500 sq ft
- Firebox Volume: 2.4 cu ft
- Max Burn Time: up to 8 hours
- Max Log Size: 20"
- Efficiency: ~70%
- Blower: Included
- Warranty: Limited Lifetime
Technical Specifications
| Brand | Empire |
|---|---|
| Model | Archway 2300 (WB23IN) |
| Type | Wood Burning Fireplace Insert |
| Heating Capacity | Up to 2,500 sq ft |
| Firebox Volume | 2.4 cu ft |
| Max Burn Time | ~8 hours |
| Max Log Size | 20" |
| Efficiency | ~70% |
| Viewing Area | 29" arched glass door |
| Blower | Included |
| EPA Certified | Yes |
Documents (PDF): Owner’s & Installation Manual (PDF) · Warranty (PDF)
FAQs
Can this insert be used in zero-clearance fireplaces?
No — the Archway 2300 is designed for masonry fireplaces only.
Is a blower included?
Yes, a factory-installed blower is included to help circulate heat efficiently.
What is the maximum log length?
The firebox supports logs up to 20 inches in length.
How long does a burn cycle last?
Up to 8 hours with seasoned hardwood.
Is it EPA certified?
Yes, this unit meets EPA clean air standards.
What warranty is included?
Empire provides a Limited Lifetime Warranty covering key components such as the firebox and combustion chamber.
Warranty
Empire Archway 2300 (WB23IN) — Limited Lifetime Warranty.
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Combustion Chamber | Lifetime | For the original owner, non-transferable. |
| Glass / Blower / Secondary Parts | Varies | See official warranty document for details. |
Exclusions & Conditions
- Warranty valid only for original purchaser with proof of purchase.
- Improper installation or misuse voids coverage.
- Labor, shipping, and incidental costs not covered unless stated.
Manuals & Installation
- Owner’s & Installation Manual: Download (PDF)
- Warranty: Download (PDF)
Pre-Install Checklist
- Masonry fireplace opening sized to accept 29" insert
- Chimney liner and installation per local building codes
- Clearances maintained as specified in the installation manual
- Proper floor and hearth protection installed
Compliance & Safety
Install in accordance with manufacturer’s manual and local building/electrical codes. Use a professional installer for safety and compliance. Always burn dry, seasoned hardwood for best efficiency and clean operation.
