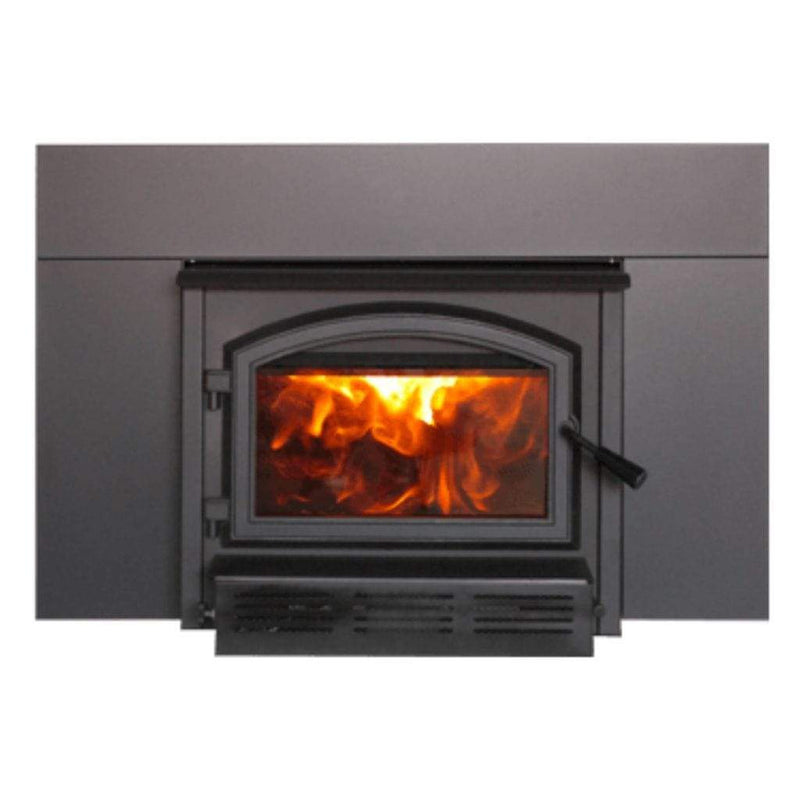

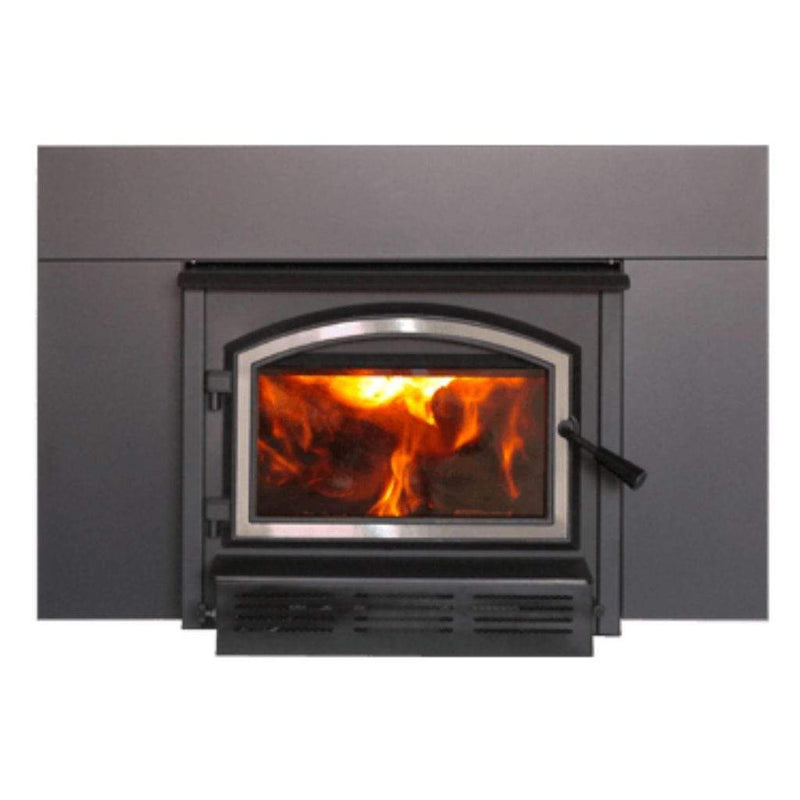

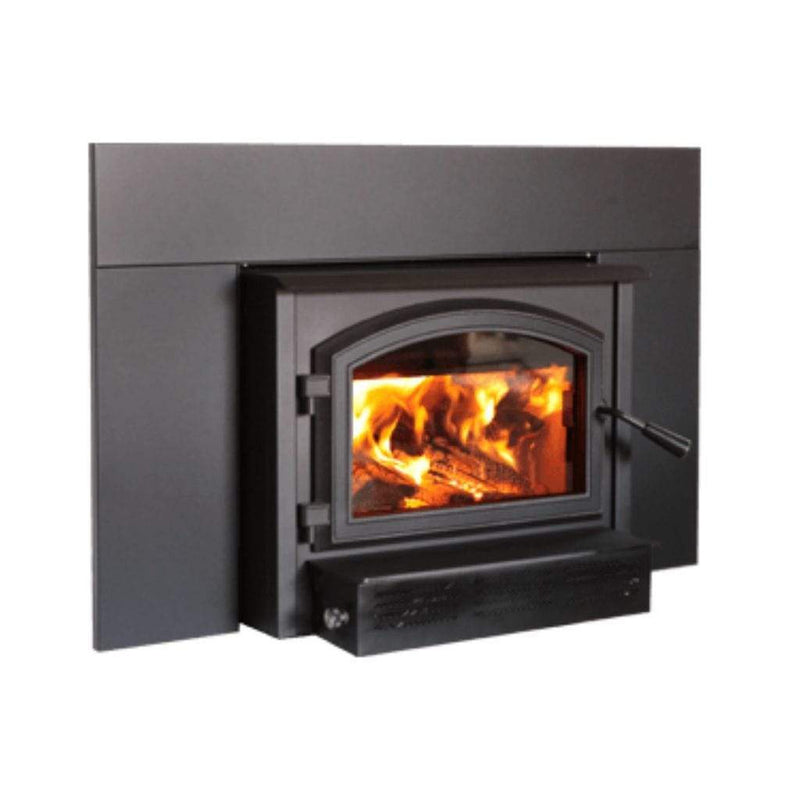

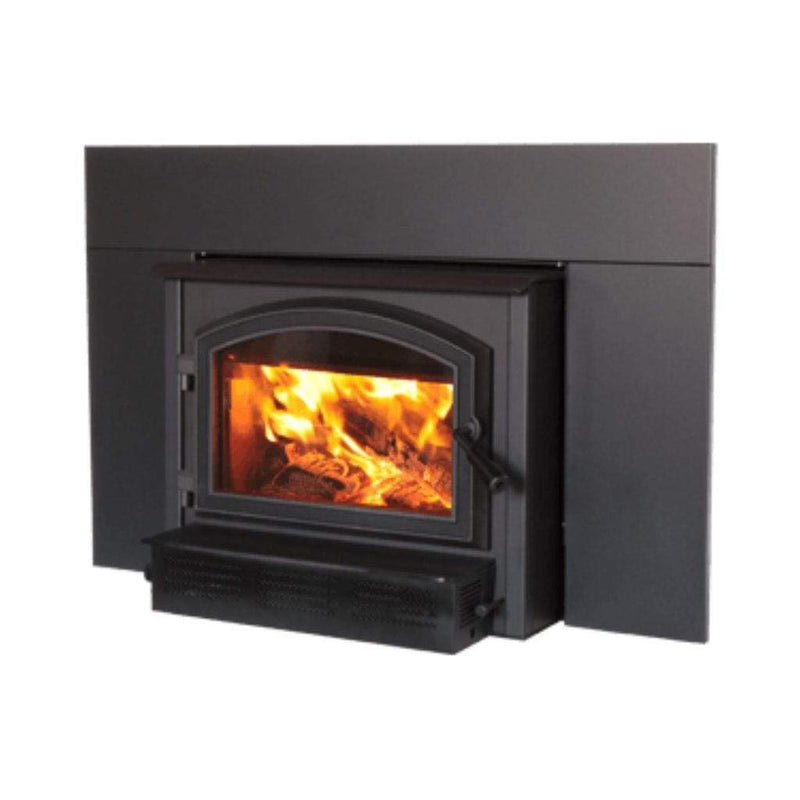

Empire Archway 1700 — Wood Burning Insert (WB17IN)

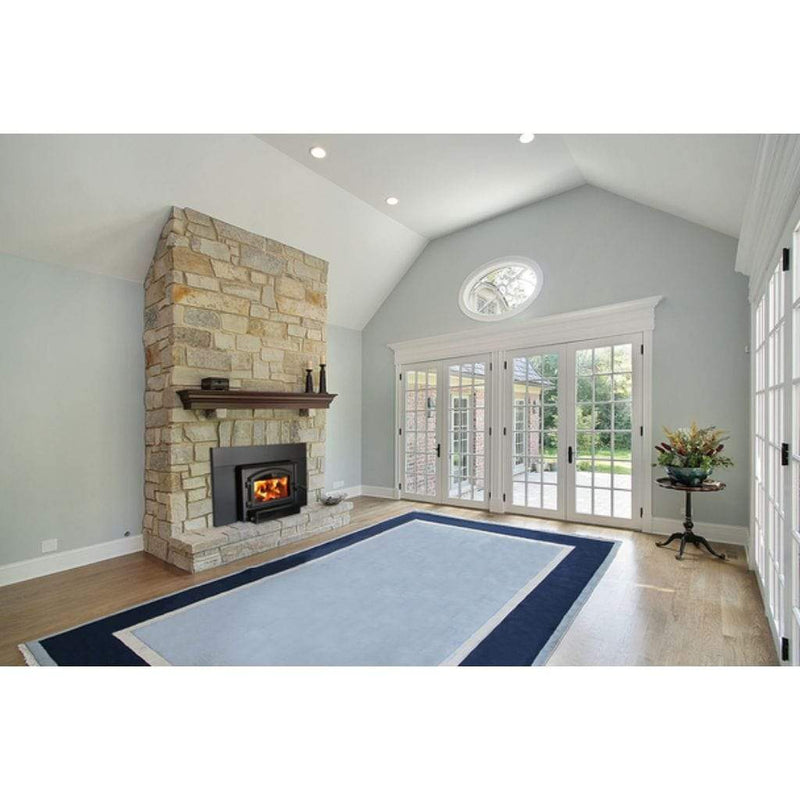

The Archway 1700 wood insert delivers up to 65,000 BTU of heat with a 6-hour burn time, designed for insert retrofit into masonry fireplaces. It features a blower, one-lever control, air-wash glass, and a no-mess ash pan. Certified under EPA Phase II 2020, it’s ideal for homes needing efficient supplemental heat while retaining existing fireplace architecture. Manual (PDF)
- 65,000 BTU maximum output
- 6-hour burn time under proper conditions
- Includes blower, one-lever control, air-wash glass
- Fits logs to 18″ length
Quick Facts
- Heating Area: 500 to 1,500 sq ft
- Firebox: 1.9 cu ft
- Max Log Length: 18″
- Dimensions: 27½″ W × 21½″ H × 12⅞″ D
- EPA Certified: Phase II / 2020 cordwood
Technical Specifications
| Brand | Empire |
|---|---|
| Model | Archway 1700 (WB17IN) |
Performance
| Max Output | 65,000 BTU/h |
|---|---|
| Heating Capacity | 500 – 1,500 sq ft |
| Burn Time | ~6 hrs |
| Firebox Volume | 1.9 cu ft |
| Log Length | Up to 18″ |
| Emission / Certification | Meets EPA Phase II / 2020 standard |
Installation
| Flue / Chimney | 6″ minimum liner (rigid or flexible) |
|---|---|
| Mounting | Insert into masonry fireplace (requires chimney & liner) |
| Clearances & Hearth Protection | See manual (PDF) for minimum clearances, mantel shelf, floor protection |
Dimensions & Weight
| Dimensions (W×H×D) | 27½″ × 21½″ × 12⅞″ |
|---|---|
| Weight | Not specified in spec sheet |
Documents (PDF): Installation & Operation Manual (PDF)
FAQs
Is this insert EPA-certified?
Yes — it is certified under the 2020 EPA Phase II cordwood standard.
How long does the burn last?
Approximate burn time is 6 hours under ideal conditions.
What log size fits?
Logs up to 18″ in length are supported.
Does it include a blower?
Yes — standard blower is included to circulate room air.
Must it be vented?
Yes — it requires a 6″ chimney liner and proper venting through masonry flue.
What clearances are required?
See the manual (PDF) for full clearance spec tables.
Can I install a mantel shelf above?
Yes — shelf up to 12″ depth can be installed as long as bottom is ≥27″ above insert top.
Warranty
Empire Archway 1700 (WB17IN) — Manufacturer warranty: limited lifetime & tiered coverage on components. See manual PDF.
Coverage
| Component | Term | Notes |
|---|---|---|
| Combustion chamber welds, cast iron components | Lifetime | Defects in structure or welds |
| Parts (baffle, blower, firebrick, etc.) | 7 years | Manufacturing defect coverage |
| Glass, controls, trim, electrical | 5 years or less | Wear and mechanical component coverage |
Exclusions & Conditions
- Warranty valid only for original owner with proof of purchase.
- Misuse, improper installation or modifications void coverage.
- Labor, shipping, and non-structural costs not covered unless stated.
Manuals & Installation
- Installation & Operation Manual: Download (PDF)
From the Manual
“Maximum log length: 18″ (457 mm).”
“Fuel moisture should be 15 %–20 % for best performance.”
Pre-Install Checklist
- Inspect chimney and flue liner; use 6″ liner compatible with wood insert.
- Ensure minimum clearances to combustibles per manual tables.
- Install hearth floor protection and appropriate fire-rated materials.
- Install blower, surround, and door overlay per manufacturer instructions.
Compliance & Safety
Install to local building and fire codes and follow the manual’s instructions. Use qualified installer when needed. Permits may be required.
Do not alter air intake or combustion settings. Use only dry hardwood. Maintain chimney & inspect regularly. Use smoke & CO detectors.
