Latitude II 48-in Smart Wall Mount Electric Fireplace
Overview
LiteDeer Latitude II 48 Seamless — smart electric fireplace
The Latitude II 48 Seamless combines modern aesthetics with dual-mode supplemental heating, ideal for spaces up to ~400 sq ft. With GT-Xview HD flame effects, app + remote control, and ultra-slim design, it makes a stylish statement in wall or recess installs.
- GT-Xview multi-flame LED with 5 color options
- Dual heat modes (750 W / 1500 W) for adjustable comfort
- Ultra-slim ~8" depth design and seamless front trim
- ETL / CETL certified, 2-year limited warranty
Quick Facts
- Power: 750 W / 1500 W (Low / High) → ~5,118 BTU
- Supplemental Heat: up to ~400 sq ft
- Electrical: 120 V / 12.5 A
Specs
Technical Specifications
| Brand | LiteDeer |
|---|---|
| Model | Latitude II 48 Seamless (ZEF48X) |
| SKU / MPN / GTIN | ZEF48X / ZEF48X / — |
Performance
| Power | 750 W / 1500 W (modes: Low / High) |
|---|---|
| Approx. BTU | ~5,118 |
| Supplemental Heat | Up to ~400 sq ft |
Installation
| Electrical | 120 V / 12.5 A (dedicated circuit recommended) |
|---|---|
| Venting | Front-vented: yes |

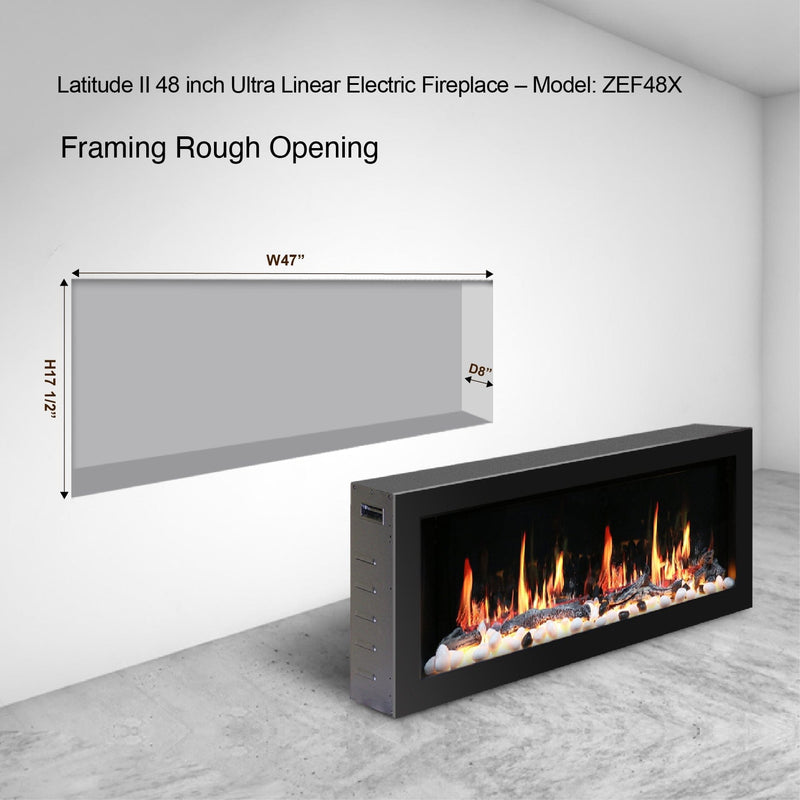

| Install Modes | Wall mount / Recessed flush / Recessed semi-flush |

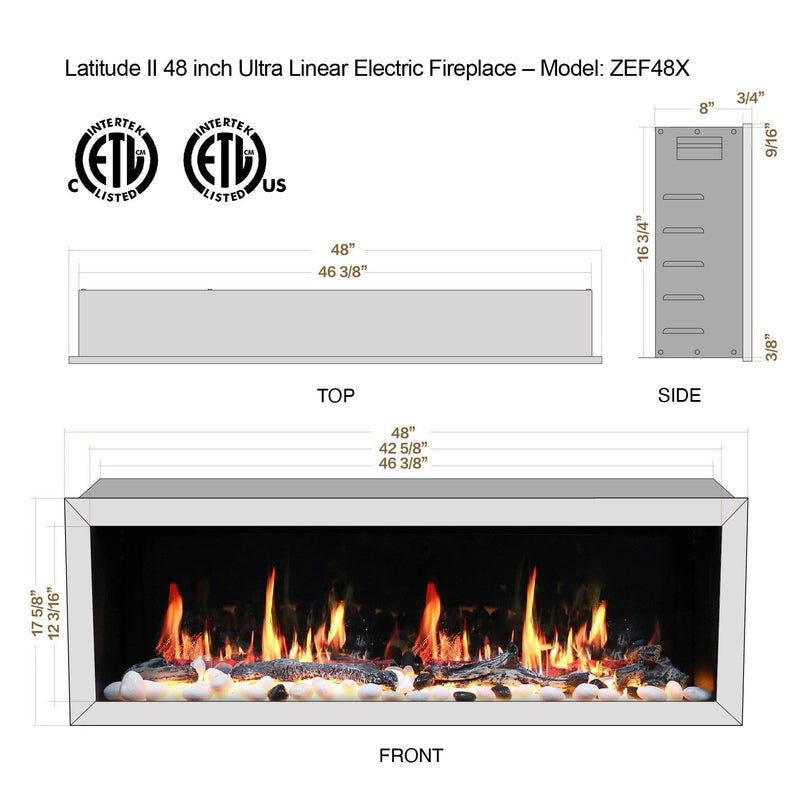

Size & Weight
| Viewing Window | 47" × 16 3/4" |
|---|---|
| Overall Dimensions (W×H×D) | 48" × 17 5/8" × 8" |
| Weight | ~97 lb |
Documents & Support: Request the official Owner’s Manual and support resources from PureFlameCo.
FAQs
FAQs
How does this compare to other linear electric fireplaces?
Highlights:
- Slim ~8" depth for tight installations
- 5 flame colors via GT-Xview LED system
- Dual heat modes for flexibility and efficiency
What benefits over a basic unit?
You get smart control, richer flame visuals, and a seamless profile. See Specs for numeric details.
What installation options are there?
Supports flush wall, semi-recessed, or full-recessed installs. See the manual (PDF).
Should I use a professional installer?
Yes, for wiring, mounting, and code compliance. See Manuals & Install tab.
What’s covered under warranty?
Two-year limited warranty on defects in materials and workmanship; documentation required.
Can I plug into a standard outlet?
It requires 120 V / 12.5 A (dedicated circuit). See the manual (PDF).
How much does it cost to run?
Use: cost/hr = (watts ÷ 1,000) × your local $/kWh. 1,500 W = 1.5 × your rate per hour.
What area will it heat?
Supplemental heat up to ~400 sq ft (performance depends on insulation and climate).
Warranty
Warranty
LiteDeer Latitude II 48 Seamless — This product includes a 2-year limited warranty covering defects in materials and workmanship, excluding misuse or alterations.
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Body | 2 years | Structural defects |
| Electrical / Controls | 2 years | Heating elements, LED, wiring |
| Glass / Media | 2 years | Window panel and decorative media |
| Finish | 2 years | Surface or coating defects |
Exclusions & Conditions
- Damage due to improper installation, misuse, or unauthorized changes.
- Coverage only for original purchaser with proof of purchase.
- Labor, shipping, and incidental costs are not covered unless stated.
How to Make a Warranty Claim
- Preserve proof of purchase and model/serial details.
- Contact PureFlameCo Support with details and images.
- Get authorization before proceeding with repairs or replacements.
For full regional terms or clarifications, contact PureFlameCo Support.
Manuals & Install
Manuals & Installation
- Official PDF manuals and installation guides must be obtained through PureFlameCo Support.
From the Manual
Manual-specific quotes were unavailable in the public listing. Acquire the latest PDF before installation.
Pre-Install Checklist
- Verify dedicated 120 V / 12.5 A circuit
- Confirm wall structure and recess depth
- Secure mounting hardware and backing
- Ensure front vent clearance per manual
- Plan wiring route and proper grounding
Compliance & Safety
Professional installation is recommended to ensure compliance with electrical and building codes.
Check local permit or inspection requirements before proceeding.
