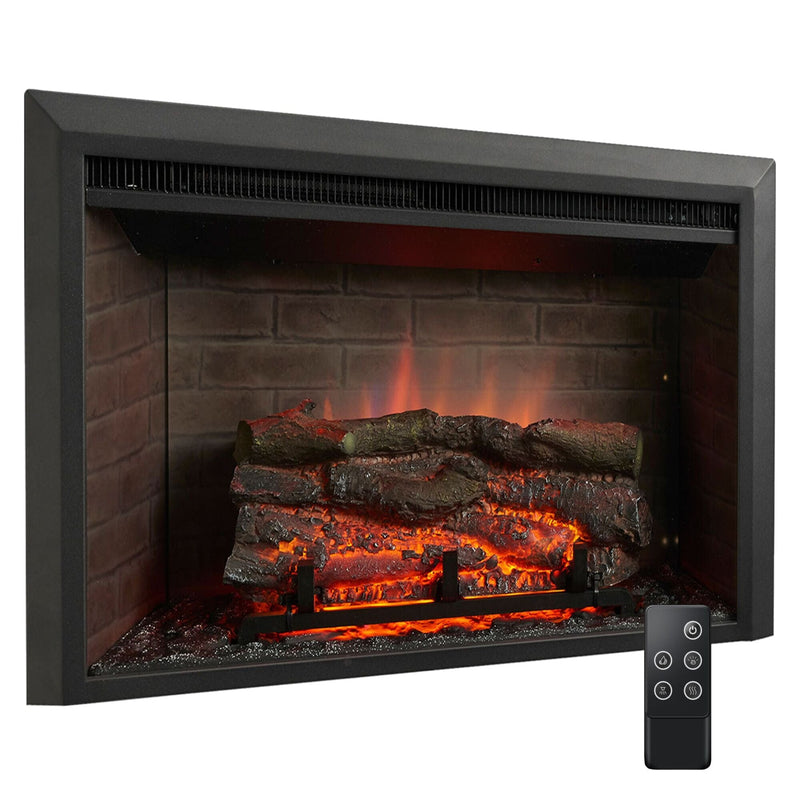

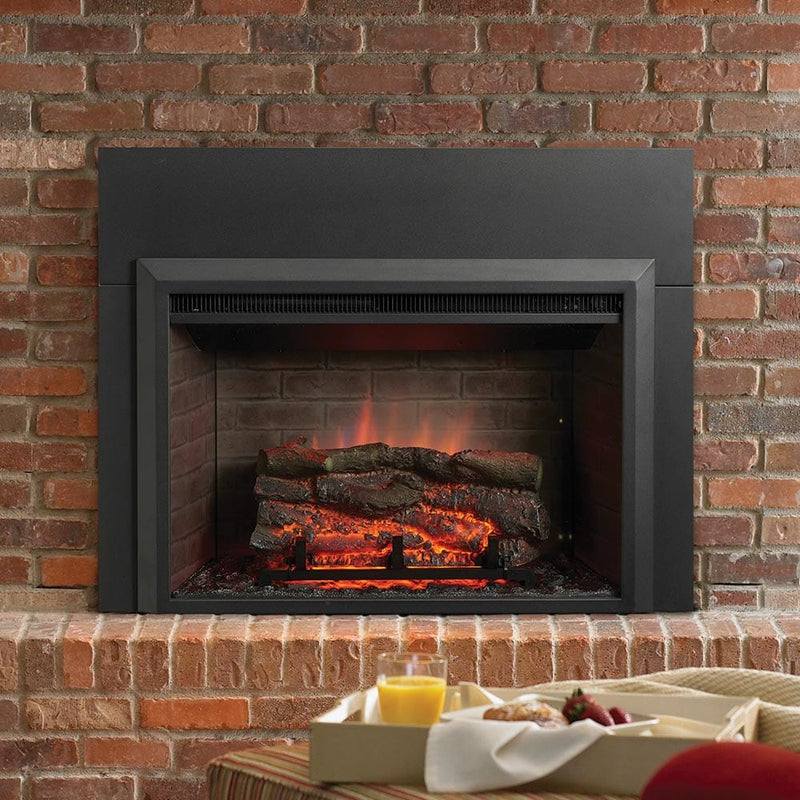

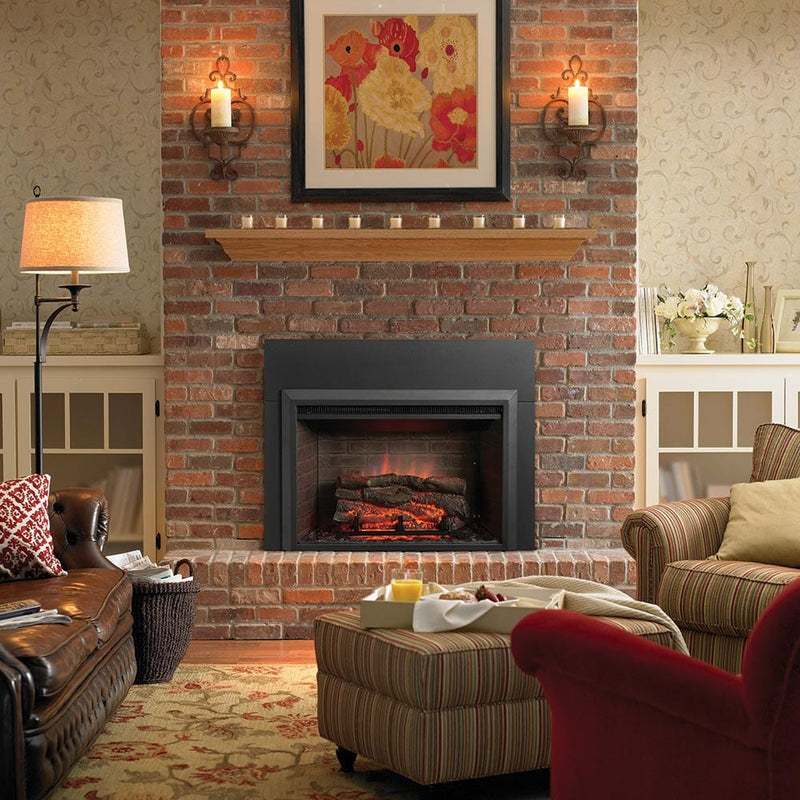

SimpliFire 32-In Built-In Electric Fireplace Insert
SimpliFire 32-In Built-In Electric Fireplace Insert (Model SF-INS32)
The SimpliFire 32-In Built-In Electric Fireplace Insert transforms existing masonry or framed fireplaces into sleek, modern focal points with effortless installation. Featuring LED flame effects, a plug-in design, and supplemental heating, this insert offers ambiance year-round with no venting or fuel management required. :contentReference[oaicite:0]{index=0}
- 32-inch electric insert designed to drop into standard openings or be built in with trim kit.
- Realistic LED flame system with textured log set and glowing ember bed. :contentReference[oaicite:1]{index=1}
- Flame-only or heat + flame modes for flexible use through all seasons. :contentReference[oaicite:2]{index=2}
- Up to ~5,000 BTU (≈1,500 W) heat output, suitable for supplemental heating up to ~400 sq ft. :contentReference[oaicite:3]{index=3}
- Plug-in 120 V design, includes remote control and surround trim options for built-in integration. :contentReference[oaicite:4]{index=4}
Quick Facts
- Type: Electric Fireplace Insert
- Model: SF-INS32
- Heating Capacity: Up to ~400 sq ft.
- Power: 1,500 W / 120 V
- Flame: LED flame system over textured logs and ember bed
- Installation: Drop-in or built-in with trim kit
- Controls: Remote control and manual panel
Technical Specifications
| Brand | SimpliFire |
|---|---|
| Model | SF-INS32 |
| Type | Built-In Electric Fireplace Insert |
| Fuel Type | Electric (LED flame technology) |
Performance
| Heat Output | Up to ~5,000 BTU (≈1,500 W) |
|---|---|
| Heating Range | Up to ~400 sq ft |
| Voltage | 120 V AC |
| Flame Technology | LED-flame with textured logs and ember bed |
| Operation Modes | Flame-only or heat + flame |
| Controls | Remote control & built-in panel |
Installation & Design
| Venting | Vent-free — no chimney or flue required |
|---|---|
| Mounting Options | Insert design for existing openings or built-in with surround kit |
| Finish | Matte black trim with glass front; optional surround kits included |
| Optional Accessories | Surround trim kits, decorative fronts, log set upgrades |
Dimensions & Weight
| Overall Dimensions (W×H×D) | Approx. 31-7/16″ × 20-9/16″ × 8-3/4″ :contentReference[oaicite:5]{index=5} |
|---|---|
| Viewing Area | Approx. 27-3/8″ × 16″ :contentReference[oaicite:6]{index=6} |
| Weight | Approx. 37 lb :contentReference[oaicite:7]{index=7} |
FAQs
Can the flames run without heat?
Yes — you can operate the flame effect independently of the heater for ambiance during warmer months.
Does it require venting or a chimney?
No — this unit is fully electric and vent-free, so no flue or chimney is needed.
What size space can it heat?
Provides supplemental heating for up to ~400 sq ft, depending on insulation and layout.
Is it suitable for new installations or existing fireplaces?
Both — designed for existing masonry openings or framed wall cavities with optional surround kits.
How do I install it?
Slide or insert into the existing firebox or framed opening, connect to standard 120 V outlet, and install trim kit if needed.
Warranty
The SimpliFire 32-In Built-In Electric Fireplace Insert (Model SF-INS32) is backed by a limited manufacturer’s warranty — typically 2 years on core components (confirm with local dealer). :contentReference[oaicite:8]{index=8}
Coverage
| Component | Term | Details |
|---|---|---|
| Electrical & Heating Components | 2 Years | Coverage for defects in materials or workmanship |
| Glass & Finish | 1 Year | Protection against defects in material or workmanship |
Conditions
- Valid for original purchaser only
- Improper installation or modification may void the warranty
- Installation labour, shipping or service charges not covered
Manuals & Installation
Pre-Installation Checklist
- Confirm the opening size in your wall or fireplace to match approx. 31-7/16″ × 20-9/16″ × 8-3/4″.
- Ensure access to a standard 120 V outlet; decide between plug-in or hardwire as local codes allow.
- Ensure front venting and no obstruction of heat discharge.
- Follow all local electrical and building codes for installation.
Safety & Compliance
Install according to manufacturer’s instructions. Keep air intake and output vents clear, and ensure proper electrical grounding for safe, reliable operation.
