Napoleon Elevation 36-in Built-In Electric Fireplace
Napoleon Elevation 36 — Electric Fireplace
The Elevation 36 built-in electric fireplace combines ultra-realistic triple-layer flames, premium split-oak logs, and dual‐voltage heating in one elegant, vent-free unit. It offers flexible control via remote, app, voice, or optional wall panel—ideal for modern living spaces demanding both ambiance and performance.
- Triple-layer flame grows from front-to-back and side-to-middle for deep realism
- ECO mode for energy savings; BOOST mode ramps up heat when needed
- Included premium split oak logs and wide ember bed with adjustable colors
- Multiple control options: remote, Napoleon Home app, voice (Alexa/Google), or wall controller
Quick Facts
- Heat Output: Up to 10,000 BTU / 3,000 W
- Voltage: 120 V or 240 V (hardwired)
- Heats up to: ~800 sq ft
- Weight: 146 lb
- Vent-free; installation type: built-in single-sided
- Warranty: 2-year limited (see full terms)
Technical Specifications
| Brand | Napoleon |
|---|---|
| Model | Elevation 36 (NEFB36H-MF) |
Performance
| Max Heat Output | 3,000 W / ~10,000 BTU |
|---|---|
| Voltage Options | 120 V or 240 V (hard-wired) |
| Amperage | 15 A |
| ECO / BOOST Modes | Yes — energy saving / max heat settings |
| Flame Effects | Triple-layer flames, adjustable speed & brightness |
Materials & IDs

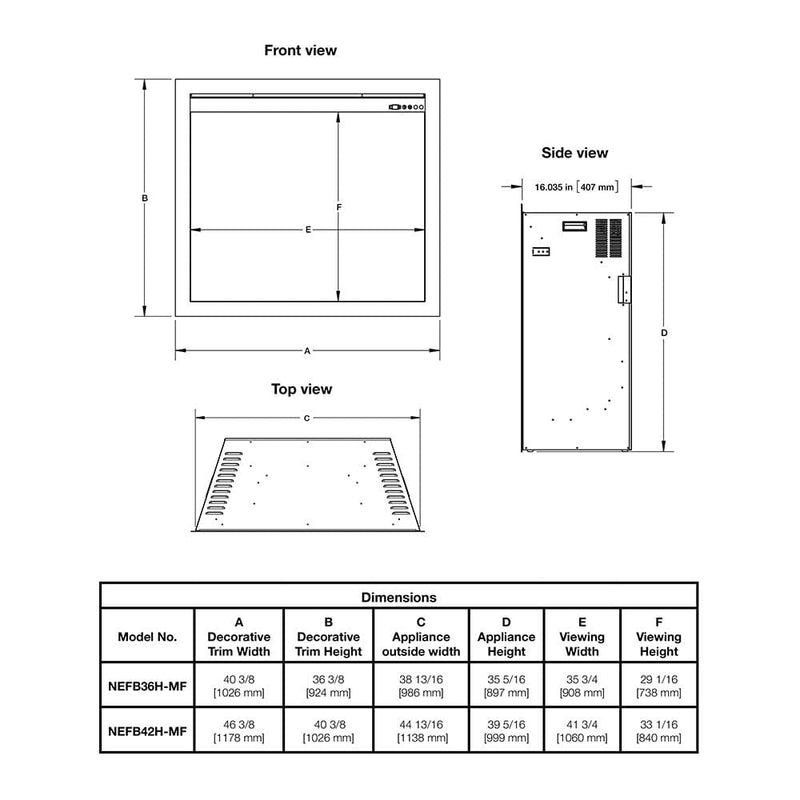

| Dimensions (W×H×D) | 40 3/8″ × 36 3/8″ × 16 1/32″ |
|---|---|
| Viewing Area | 35 3/4″ × 29 1/16″ |
| Framing Opening (rough-in) | 39 3/4″ W × 35 9/16″ H × 16 1/4″ D |
| Weight | 146 lb |

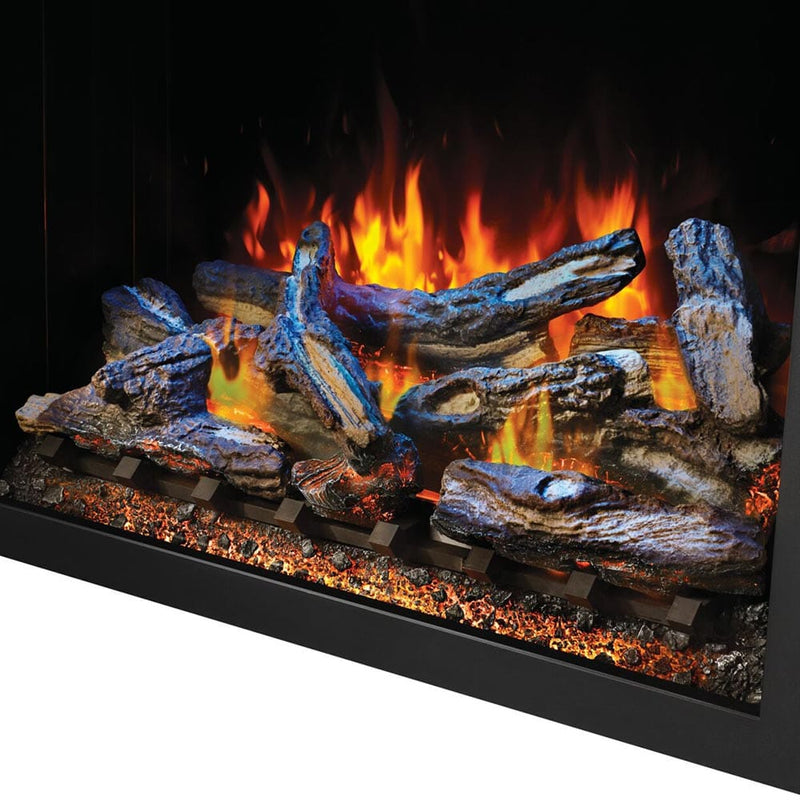

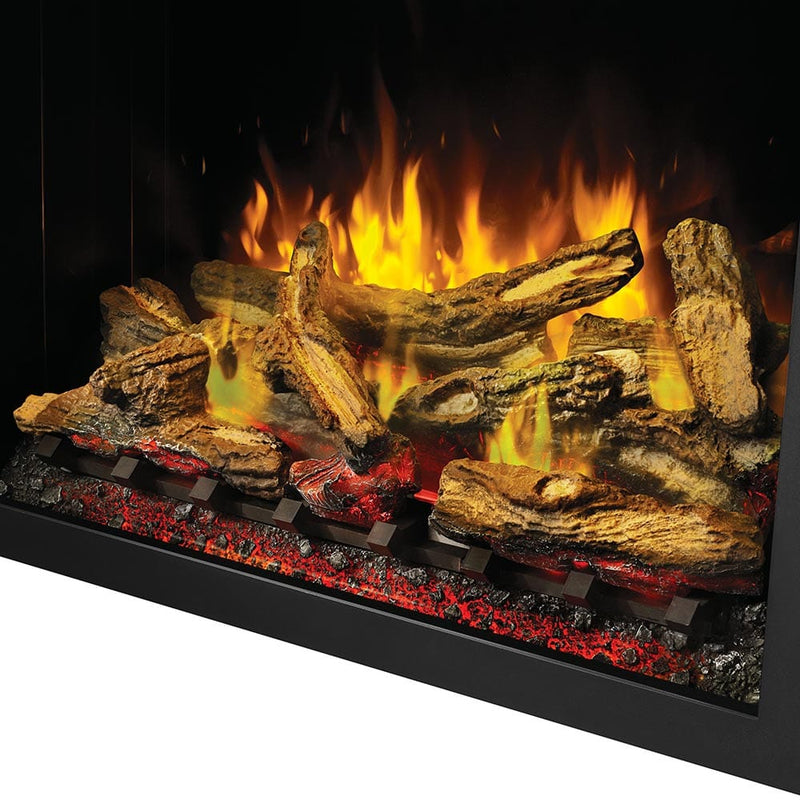

| Media | Premium Split Oak Logs + wide ember bed |
FAQs
Does this model require venting?
No—Elevation 36 is fully electric and vent-free.
Can I run it on standard household current?
Yes. It supports 120 V plug-in or hardwired 120/240 V installation.
How much heat can it provide?
Delivers up to ~10,000 BTU / 3,000 W, suitable to heat spaces up to approximately 800 sq ft, depending on insulation.
What flame and media options are included?
Includes premium split oak logs, wide ember bed with adjustable color, and flame visuals with adjustable speed & brightness.
What controls are available?
Control via premium remote, Napoleon Home App (mobile/WiFi), voice assistants (Google / Alexa), or optional wall controller.
Does it have energy saving mode?
Yes—ECO mode runs at half heat; BOOST mode boosts output and blower speed for maximum heat.
What is the warranty?
2-year limited warranty on this NEFB36H-MF model (media, lighting, electrical components etc.).
Warranty
Napoleon Elevation 36 (NEFB36H-MF) — Manufacturer warranty: 2-Year Limited on the unit and key components.
Coverage
| Component | Term | Notes |
|---|---|---|
| Electrical & Heating Components | 2 years | Includes heater, blower, control modules. |
| Media & Lighting | 2 years | Includes logs, ember/EQ lighting elements under normal use. |
Exclusions & Conditions
- Damage due to misuse, improper installation, or alteration voids warranty.
- Original purchaser only; proof of purchase required.
- Labor, shipping, or installation costs not covered after first 2 years; parts only.
How to Make a Warranty Claim
- Retain proof of purchase and model details.
- Contact PureFlameCo Support with issue description, photos, and serial/model info.
- Obtain manufacturer authorization before performing any repair or replacement.
If you need the official warranty document or detailed terms, please contact support.
Manuals & Installation
- Installation & Operation Manual: Download (PDF)
- Specification Sheet / Rough-In Dimensions: View (PDF)
Pre-Install Checklist
- Ensure you have a 120 V or 240 V dedicated circuit (15 A)
- Frame opening per specs: ~39 3/4″ W × 35 9/16″ H × 16 1/4″ D
- Plan for hardwire installation or plug-in where code permits
- Maintain clearance for top vents and front panel ventilation
- Confirm structure supports the weight (~146 lb)
Compliance & Safety
Installation must meet local building & electrical codes; UL listing applies.
Professional installation recommended when hard-wiring or for flush built-in setup.
Do not block air intake/vents; follow all safety & operation instructions in manufacturer manual.
