Napoleon Astound 96" Built-In Electric Fireplace - NEFB96AB
Napoleon Astound 96 — Built-In Electric Fireplace
The Astound 96 is a monumental 96-inch linear electric fireplace offering ultra-realistic fluttering flames, smart controls, and generous viewing area. Fully electric and vent-free, it’s designed for maximum visual impact while delivering up to 10,000 BTU of warmth.
- Flip-down glass to easily change unique Driftwood logs & Woodland media, or add optional media kits

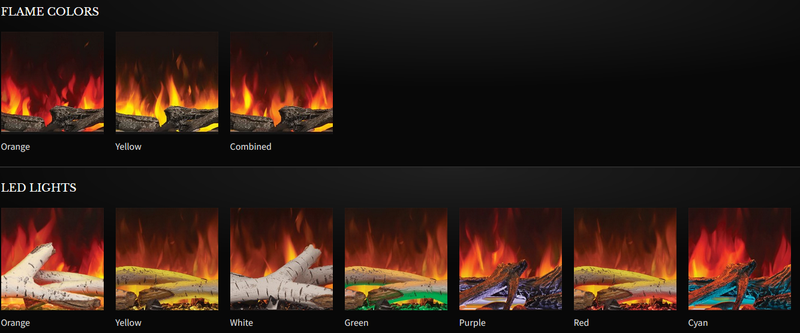

- 13 ember bed & top light colors; adjust brightness & flame speed via remote, app, or voice
- Frameless or trimmed finish; large viewing area with tinted glass to reduce glare

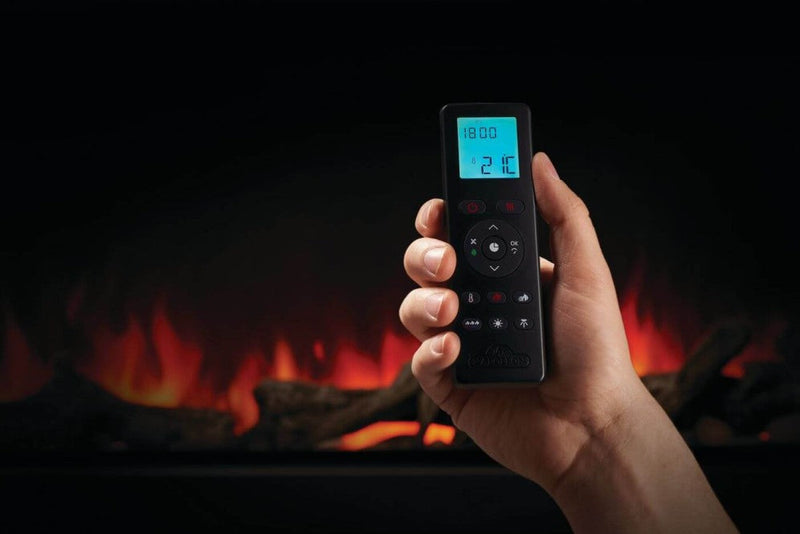

- Smart features: Napoleon Home App, voice control (Alexa/Google), premium remote
Quick Facts
- Max Heat Output: 10,000 BTU (3,000 W)
- Viewing Area: 91.75″ × 17.50″
- Dimensions: 96.25″ W × 25.75″ H × 12.31″ D
- Framing / Rough Opening: 96.75″ W × 26.25″ H × 13.38″ D
- Weight: ~ 222 lb
- Warranty: 5-Year Limited
-
Documents (PDF): Spec Sheet (PDF)
Technical Specifications
| Brand | Napoleon |
|---|---|
| Model | Astound 96 (NEFB96AB) |
Performance
| Max Heat Output | 10,000 BTU / 3,000 W |
|---|---|
| Electrical Supply | Hard-wired, 120 V / 240 V |
| Heating Area | Up to ~800 sq ft |
| Flame / Lighting Features | 13 ember bed & top-light colors; flame speed & brightness adjustable |
| Media Included | Driftwood logs & Woodland media kit; flip-down glass for access |
Materials & IDs
| Viewing Area | 91.75″ × 17.50″ |
|---|---|
| Width × Height × Depth | 96.25″ × 25.75″ × 12.31″ |
| Framing Opening | 96.75″ W × 26.25″ H × 13.38″ D |
| Weight | ≈ 222 lb |
| Warranty | 5-Year Limited |
Documents (PDF): Spec Sheet (PDF)
FAQs
What are the lighting and flame options?
Comes with 13 ember bed & top-light color options, with adjustable flame speed and brightness.
Does this model need venting?
No—Astound 96 is fully electric and requires no external venting.
What kind of media is included?
Included media: Driftwood logs & Woodland media kit; front flip-down glass makes changing included or optional media easy.
What control methods does it support?
Premium remote, Napoleon Home App, voice control (Google Home/Alexa), with optional wall controller.
Is there an energy saving mode?
Yes—ECO mode reduces heat output; BOOST mode provides maximum heat and blower speed.
What is the warranty term?
5-Year Limited Warranty.
Warranty
Napoleon Astound 96 (NEFB96AB) — Manufacturer warranty: 5-Year Limited.
Coverage
| Component | Term | Notes |
|---|---|---|
| All major components (heater, flame / LED elements, media bed, etc.) | 5 years | Defects in materials and workmanship. Normal residential use. |
Exclusions & Conditions
- Improper installation, misuse, or unauthorized modifications void warranty.
- Original purchaser only; proof of purchase required.
- Labor, shipping, or installation costs not covered unless specifically stated.
How to Make a Warranty Claim
- Keep proof of purchase and model number.
- Contact PureFlameCo Support with photos and description of the issue.
- Obtain manufacturer authorization before repair or replacement.
For full warranty document, refer to Napoleon’s warranty terms or contact support.
Manuals & Installation
- Specification Sheet: Download (PDF)
- Installation & Operation Manual: Download (PDF)
Pre-Install Checklist
- Dedicated hard-wired circuit: 120 V or 240 V per loc al code.
- Frame rough opening: approx. 96.75″ W × 26.25″ H × 13.38″ D.
- Ensure unit depth of ~12.31″ deep and allowance for front access to flip-down glass.
- Allow sufficient clearance above and around for ventilation & safety. Refer to manual.
- Ensure wall structure can support ~222 lb weight.
Compliance & Safety
Install per Napoleon’s installation instructions, local building and electrical codes; proper framing, safety clearances must be observed.
Use only manufacturer-approved or included media; do not block vents or cover glass.
Professional installation is strongly recommended, especially for hard-wired and built-in setups.
