Latitude 75" Ultra Slim Built-in Electric Fireplace
Latitude ZEF75V Smart Linear Electric Fireplace
The Latitude ZEF75V offers an expansive 75-inch panoramic flame display with smart controls and efficient supplemental heating. Its frameless linear design, front venting system, and multi-color LED flame technology make it perfect for recessed or wall-mounted installations in modern living spaces.
- Dual heat settings: 750 W / 1,500 W
- WiFi & remote control operation
- Multi-color LED flame with adjustable brightness and ember effects
- Front-venting design β no chimney or venting required
- Ideal for large living rooms, offices, and entertainment walls
Quick Facts
- Power: 750 W / 1,500 W
- Heating Coverage: Up to 400 sq. ft.
- Voltage: 120 V / 12.5 A

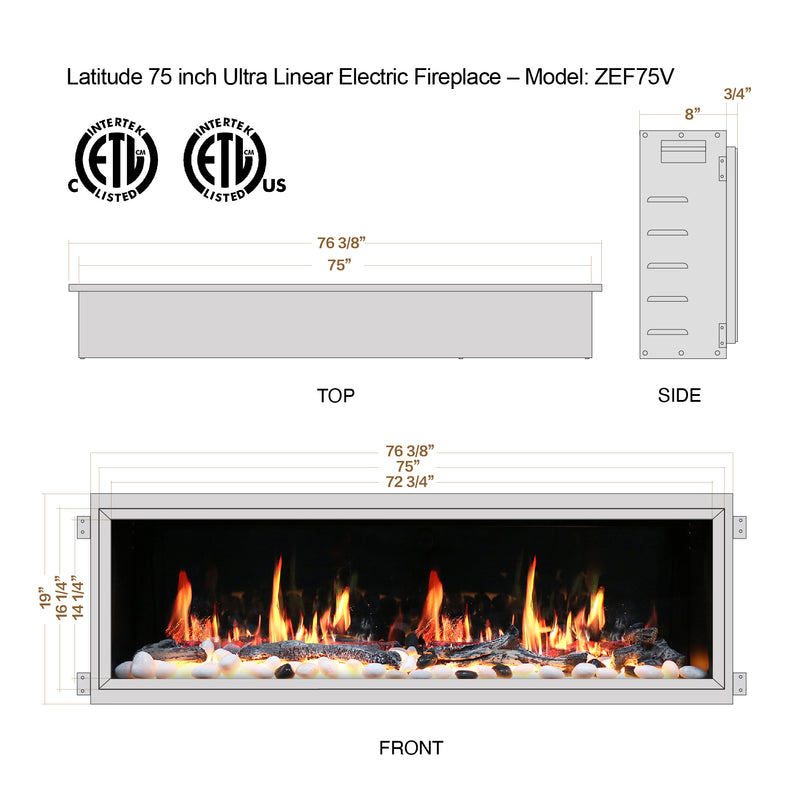

- Firebox Dimensions: 75β³ Γ 17.6β³ Γ 8β³ (W Γ H Γ D)
- Viewing Area: ~74β³ Γ 16.7β³
- Finish: Frameless black glass panel
Technical Specifications
| Brand | Latitude / Litedeer |
|---|---|
| Model | ZEF75V |
| Type | Smart Linear Electric Fireplace |
Performance
| Heat Output | 750 W / 1,500 W |
|---|---|
| Heating Coverage | Up to 400 sq. ft. |
| Voltage / Amps | 120 V / 12.5 A |
| Flame Technology | LED flame with multiple color and brightness settings |
Installation & Venting
| Venting | Front vent β vent-free operation |
|---|---|
| Mounting Options | Recessed, flush-mount, or wall installation |
| Clearances | Follow installation manual recommendations |
Dimensions & Weight
| Overall Dimensions (WΓHΓD) | 75β³ Γ 17.6β³ Γ 8β³ |
|---|---|
| Viewing Area | ~74β³ Γ 16.7β³ |
| Weight | Not specified |
FAQs
Can the flame operate without heat?
Yes β the Latitude ZEF75V features flame-only mode for ambiance without heat.
Does this fireplace need venting?
No β itβs vent-free with a front heat outlet for clean installation.
What area size does it heat?
Provides supplemental heat for rooms up to 400 sq. ft.
How can it be controlled?

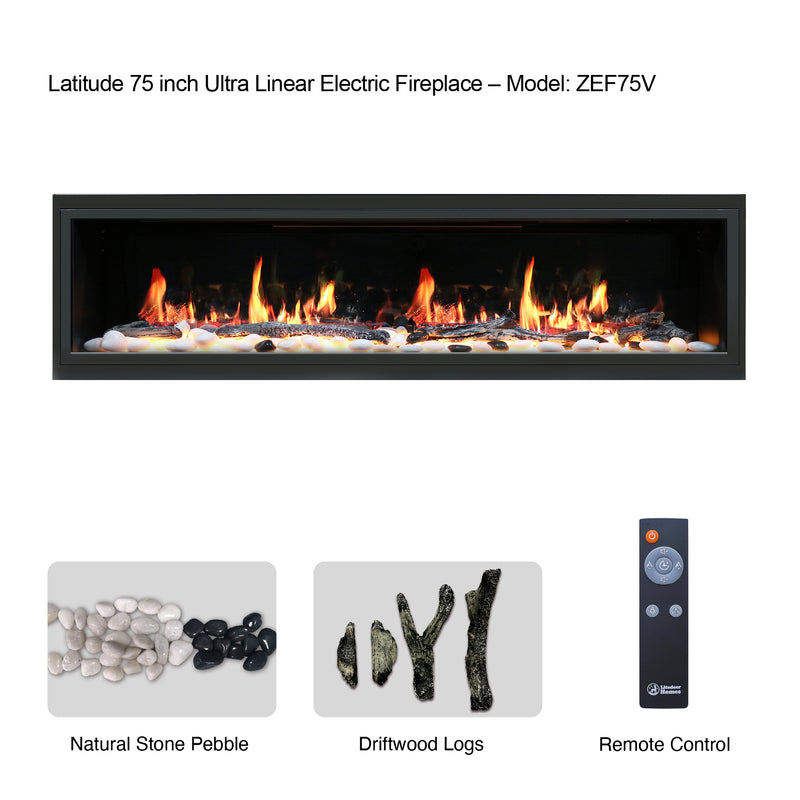

Adjust flame, heat, and timer settings via WiFi app or included remote.
Can it be recessed into a wall?
Yes, designed for recessed or flush installation without any external venting.
Warranty
Latitude ZEF75V β protected by a 2-Year Limited Manufacturer Warranty covering materials and electrical components.
Coverage
| Component | Term | Notes |
|---|---|---|
| Electronics & Heating Elements | 2 Years | Manufacturer defects under normal residential use |
| Glass & Frame Finish | 2 Years | Covers material and workmanship defects |
Conditions
- Proof of purchase required for warranty claims
- Improper installation or misuse voids warranty
- Labor, shipping, or incidental costs not included
Manuals & Installation
- Owner & Installation Manual: Not available online
Pre-Installation Checklist
- Confirm wall opening matches 75β³ Γ 17.6β³ Γ 8β³ dimensions
- Ensure nearby 120 V outlet for power connection
- Leave front vent unobstructed for safe airflow
- Follow local building and electrical codes
Compliance & Safety
Install and operate per manufacturer guidelines. Keep front vents clear and inspect regularly to ensure safe operation.
