Dimplex IgniteXL 60-In Electric Fireplace - XLF60
Dimplex IgniteXL 60-In Linear Electric Fireplace (XLF60)
The Dimplex IgniteXL 60-inch Linear Electric Fireplace (Model XLF60) offers sweeping panoramic flames, dual-voltage heating modes, and sleek built-in installation. With heater mode or flame-only mode, it delivers supplemental heat up to ~1,000 sq ft while maintaining a clean-face design with front venting.
- 1,500 / 2,500 W dual-heat modes with LED flame effects and remote control
- Flame-only mode for ambiance without heat
- Slim 5.5-inch depth for built-in or linear recessed install
- No chimney or external venting required; edge-to-edge glass front
Quick Facts
- Power: 1,500 / 2,500 W (modes: heat on / flame-only)
- BTU: ~5,118 / ~8,530 BTU
- Heating Coverage: supplemental heat up to ~1,000 sq ft
- Electrical: 120 V / 240 V circuit; ~12.5 / ~10.4 A

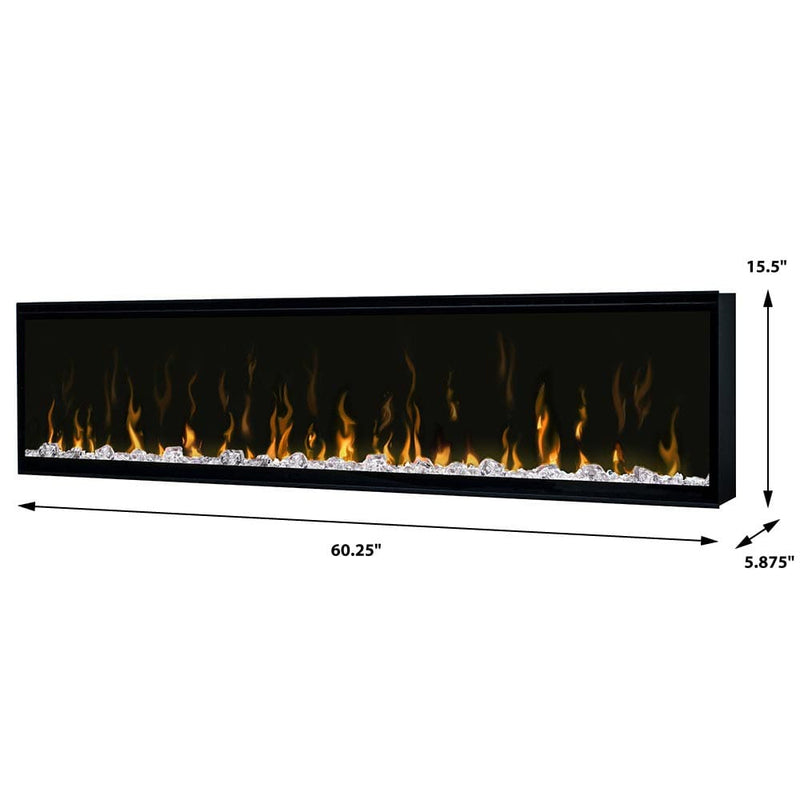

- Dimensions (W×H×D): ~60-1⁄4″ × 15-1⁄2″ × 5-7⁄8″
- Warranty: 5-Year Limited Manufacturer Warranty
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | IgniteXL 60-In (XLF60) |
| SKU / MPN / GTIN | XLF60 / XLF60 / — |
Performance
| Power | 1,500 W / 2,500 W |
|---|---|
| Approx. BTU | ~5,118 / ~8,530 BTU |
| Supplemental Heat | Up to ~1,000 sq ft |
Installation
| Electrical | 120 V / 240 V circuit (~12.5 / ~10.4 A) |
|---|---|
| Venting | Front-vented; no external venting required |
| Install Type | Built-in / Linear recessed installation |
Size & Weight
| Overall Dimensions (W×H×D) | ~60-1⁄4″ × 15-1⁄2″ × 5-7⁄8″ |
|---|---|
| Depth | ~5.5″ |
| Weight | — lb (not verified) |
Documents (PDF): Installation & Operating Manual (PDF)
FAQs
Can the flame operate without heat?
Yes — flame effects work independently, allowing flame-only mode for ambiance year-round.
What are the electrical requirements?
Requires a dedicated 120 V or 240 V circuit; about 12.5 A at 120 V or 10.4 A at 240 V. See the manual (PDF).
How much area will it heat?
Provides supplemental heat up to ~1,000 sq ft; actual performance depends on insulation and climate.
Is venting required?
No external vent or chimney is needed; front venting handles airflow.
What warranty is included?
5-Year Limited Manufacturer Warranty.
How much does it cost to run?
Use: cost/hr = (watts ÷ 1,000) × local $/kWh. Example: 2,500 W ≈ 2.5 × your rate per hour.
Warranty
Dimplex IgniteXL 60-In (XLF60) — Manufacturer warranty: 5-Year Limited.
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Heater / Controls | 5 years | Parts & workmanship under normal residential use. |
| Finish / Glass | 5 years | Against defects; excludes damage from misuse or cleaning chemicals. |
Exclusions & Conditions
- Applies to original purchaser with proof of purchase.
- Improper installation, misuse, alteration voids warranty.
- Labor, transport, or incidental damage not covered.
Manuals & Installation
- Installation & Operating Manual: Download (PDF)
Pre-Install Checklist
- Verify framing width ≥ ~60-1⁄4″ and height per manual specs.
- Provide dedicated 120 V or 240 V circuit as required.
- Leave sufficient front clearance and allow front glass and controls unobstructed.
- Mount on wall or recess with support structure sufficient for unit.
Compliance & Safety
Install per the manual and follow local electrical and building codes. Use licensed installer for hardwired setups.
Disconnect power before servicing. Glass remains cool-touch; heater outlet areas may be warm during operation.
