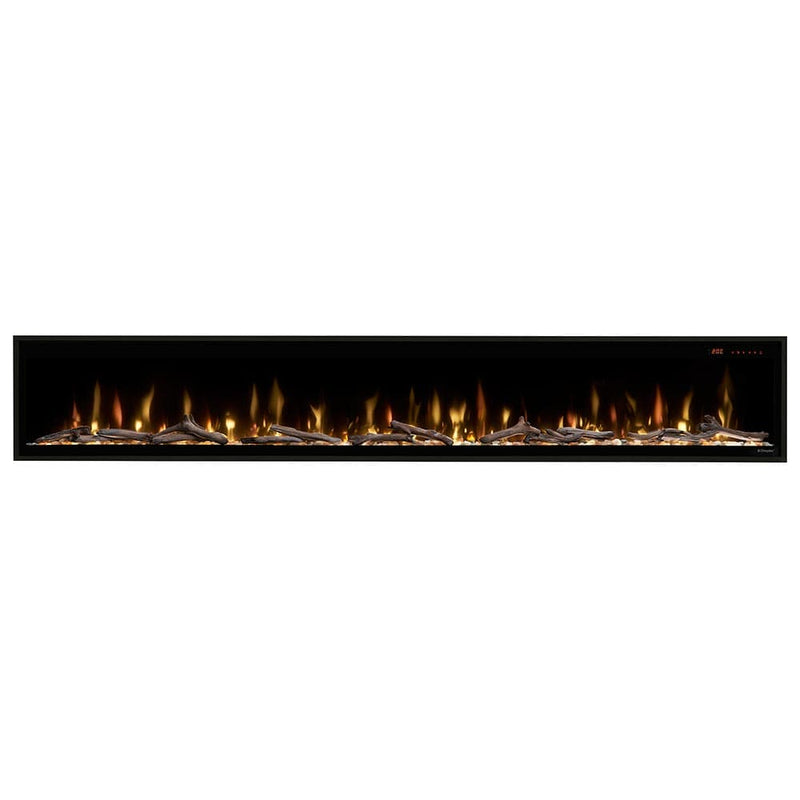

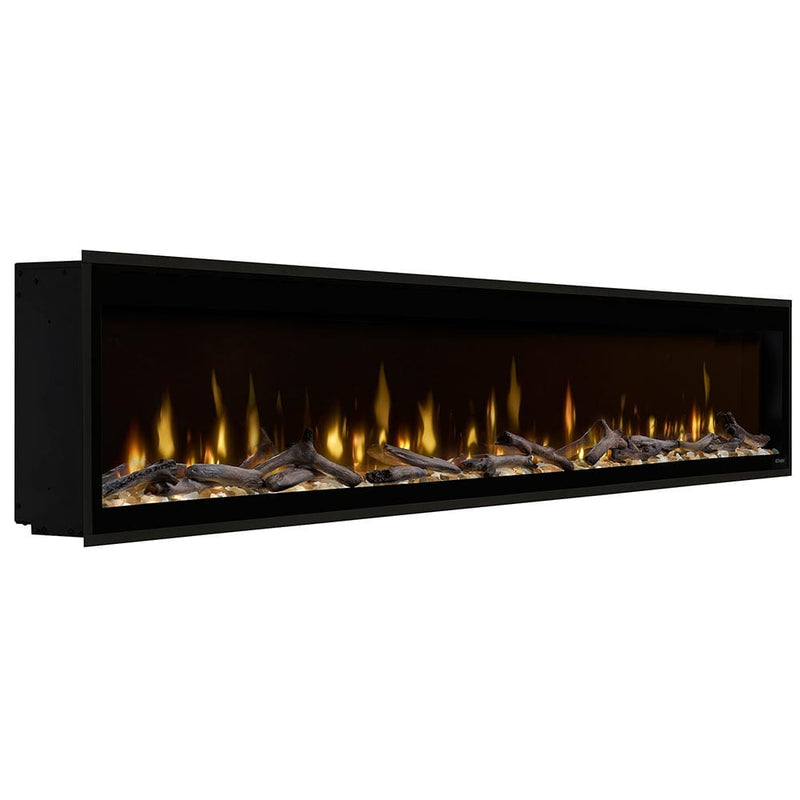

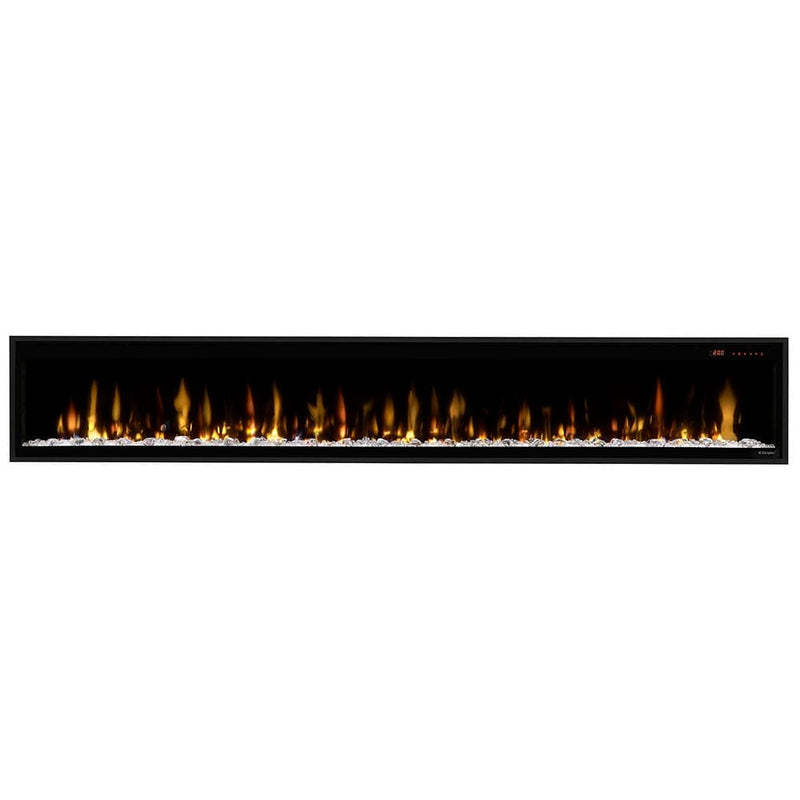

Dimplex Ignite Evolve 100-in Linear Electric Fireplace - EVO100
The Ignite Evolve 100-inch linear electric fireplace blends a panoramic flame effect with dual-voltage heating (1,500/2,500 W) and edge-to-edge glass. It supports flame-only mode for ambient visuals and heater mode for supplemental warmth up to ~1,000 sq ft. Slim depth of ~5-¾″ allows clean built-in/recessed installation without external venting. :contentReference[oaicite:0]{index=0}

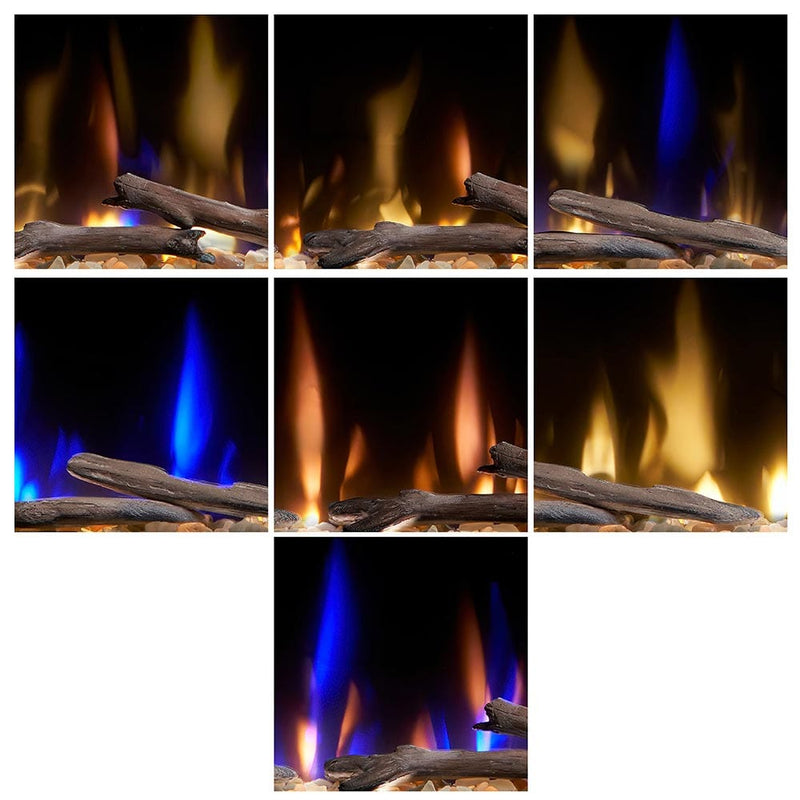

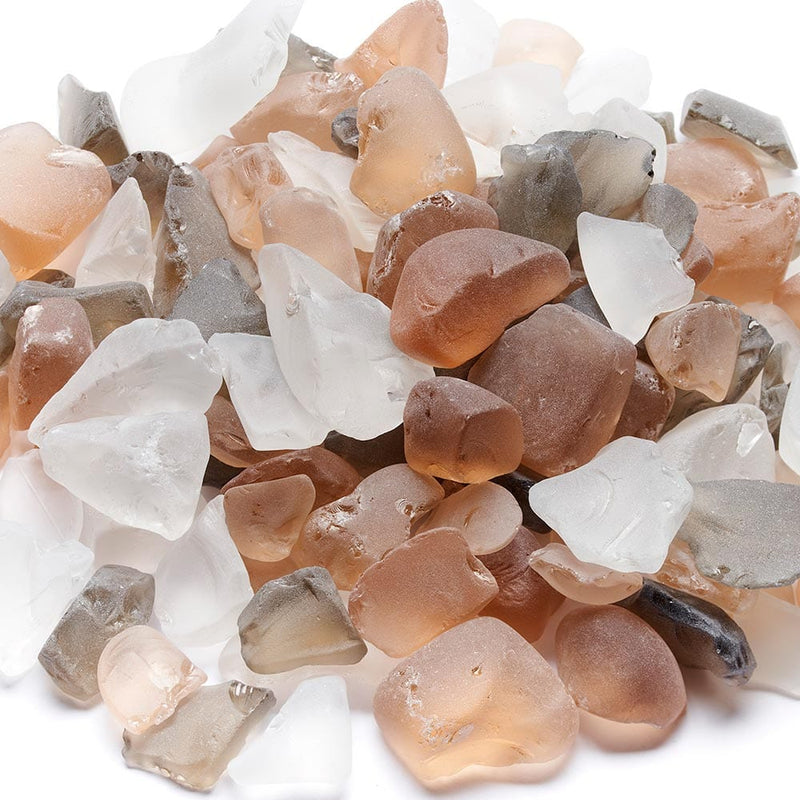

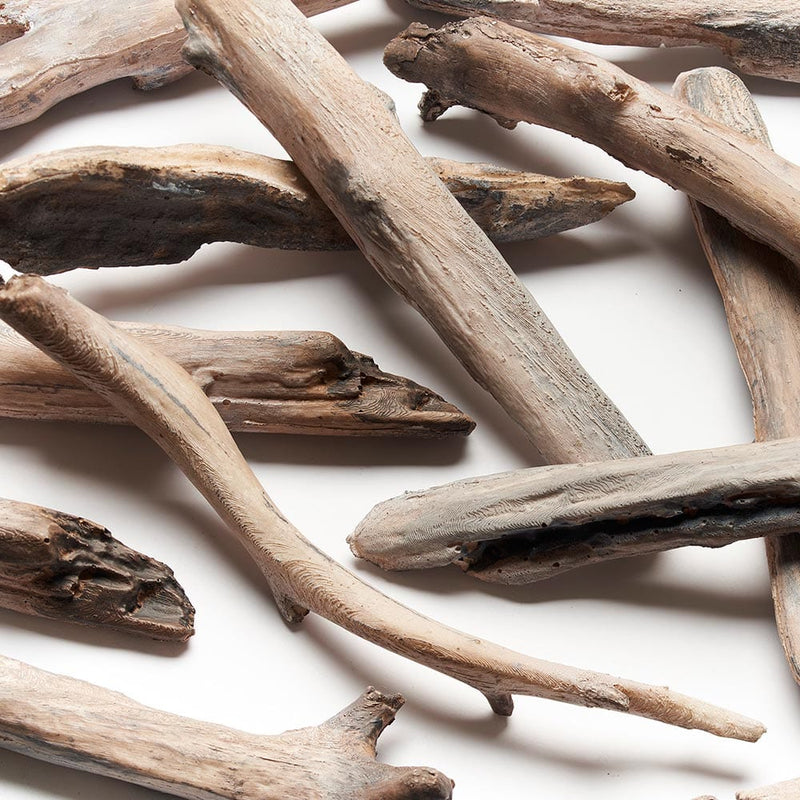

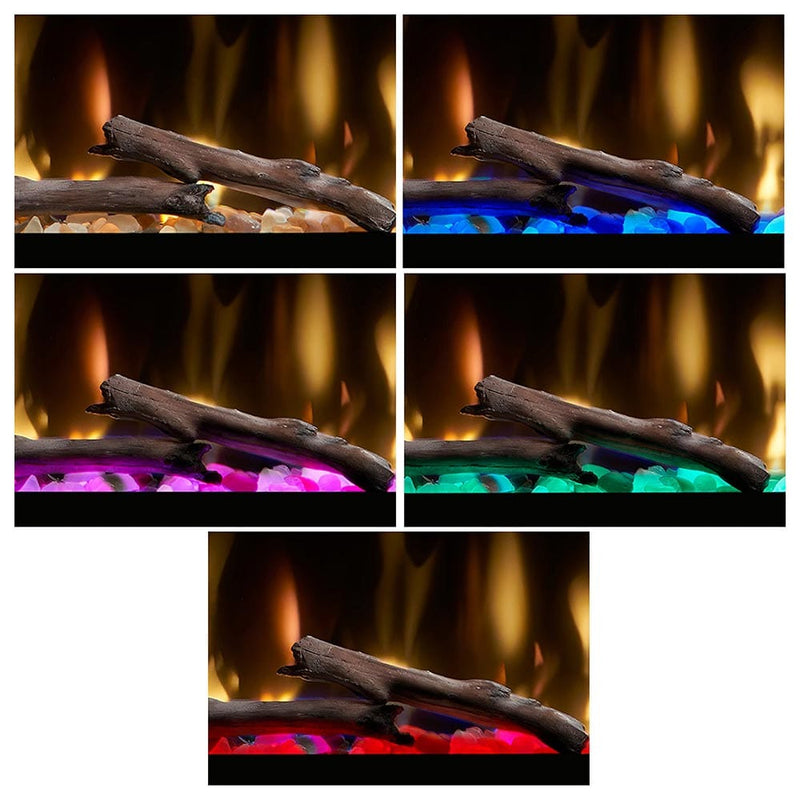

- Multi-Fire XD™ flame with variability in speed, colors, and media options (driftwood + tumbled glass) :contentReference[oaicite:1]{index=1}
- Flame-only mode and heater mode for flexible ambiance or warmth :contentReference[oaicite:2]{index=2}

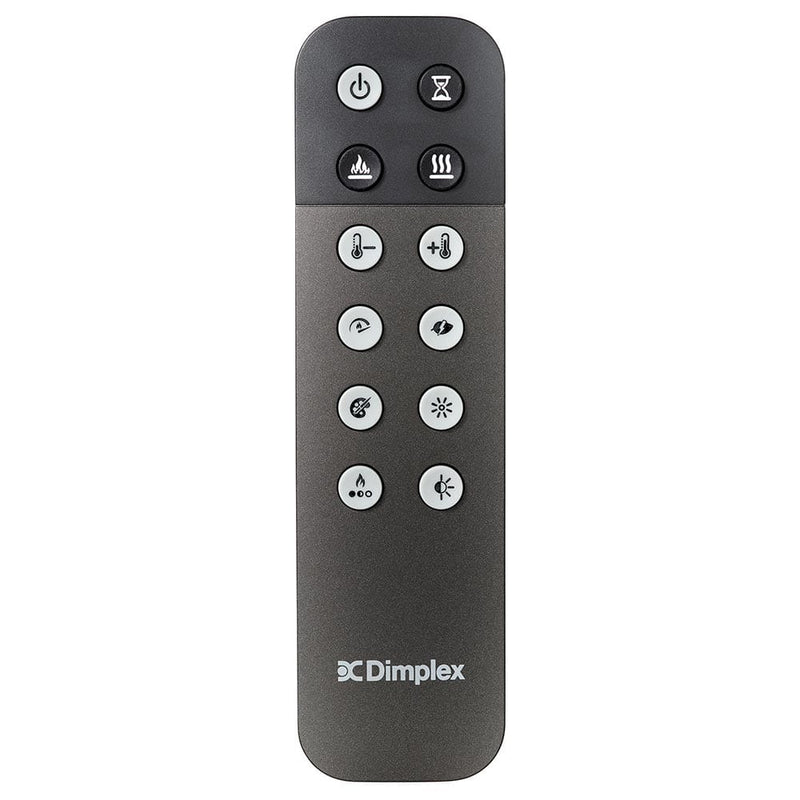

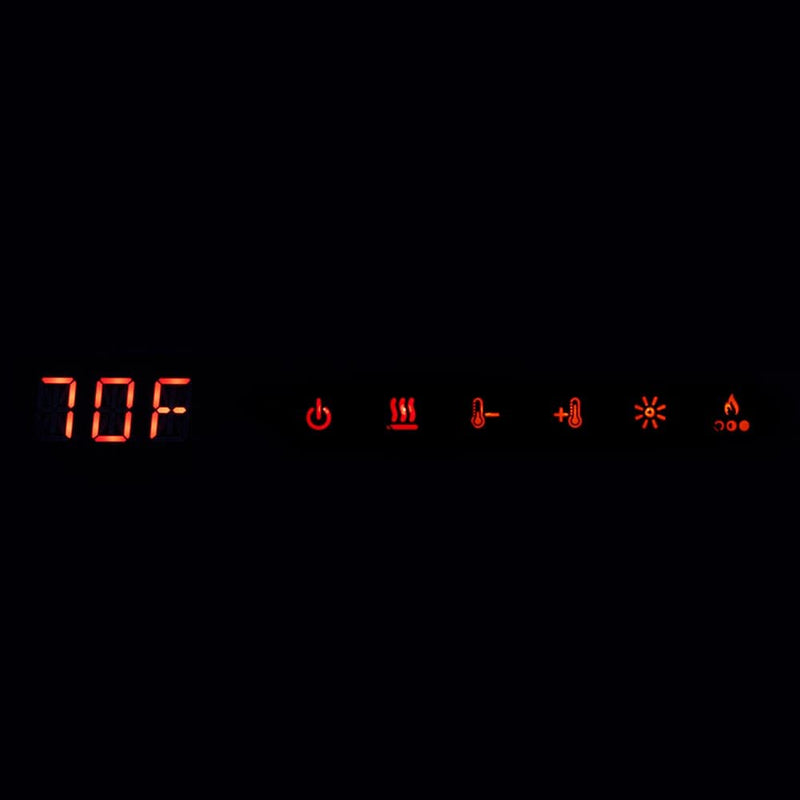

- Hardwired 120/240 V operation, smart features, remote + touch controls :contentReference[oaicite:3]{index=3}

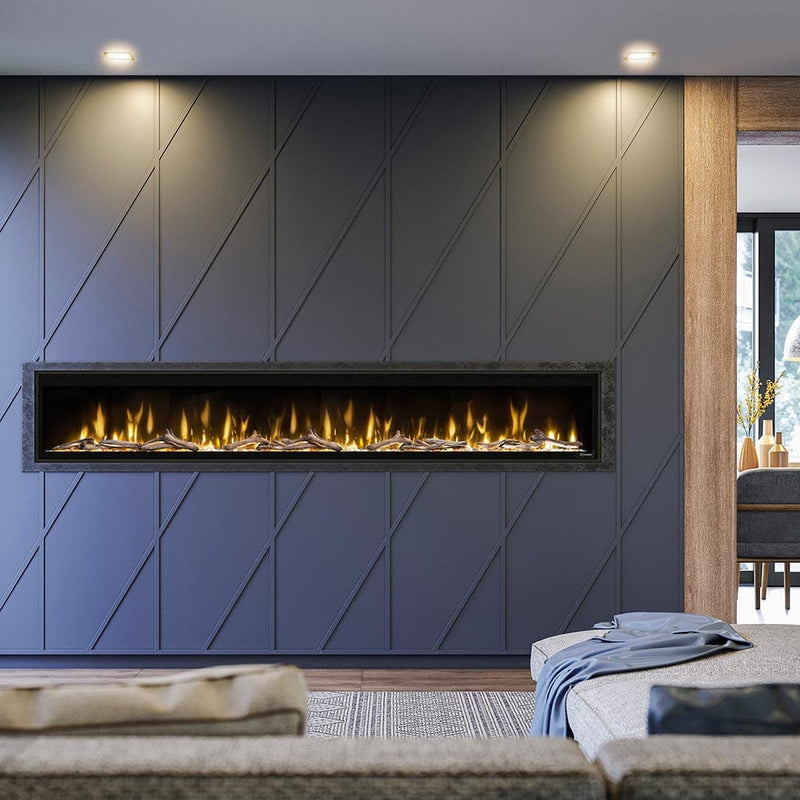

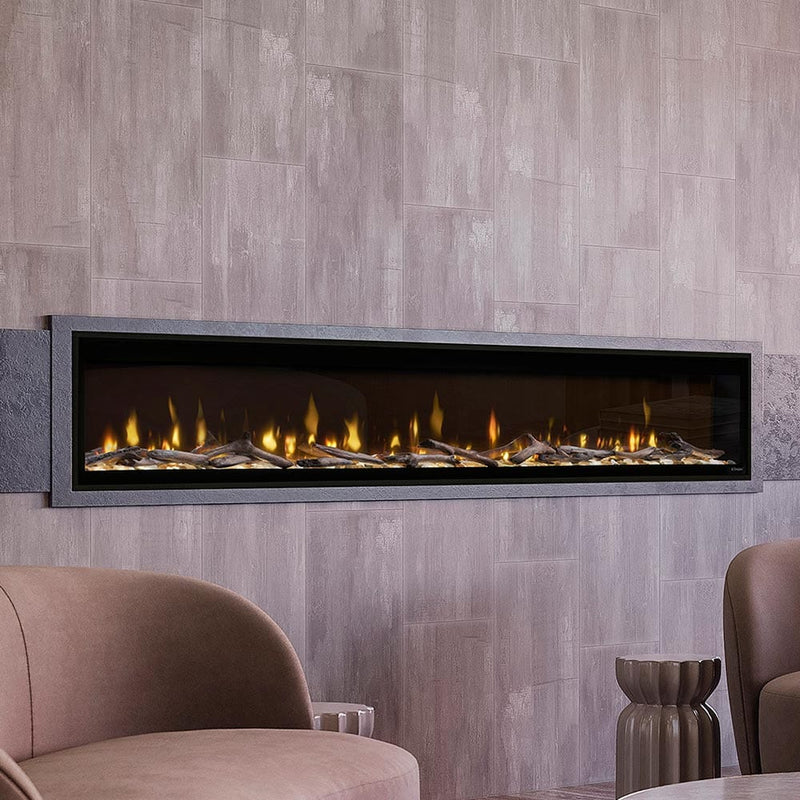

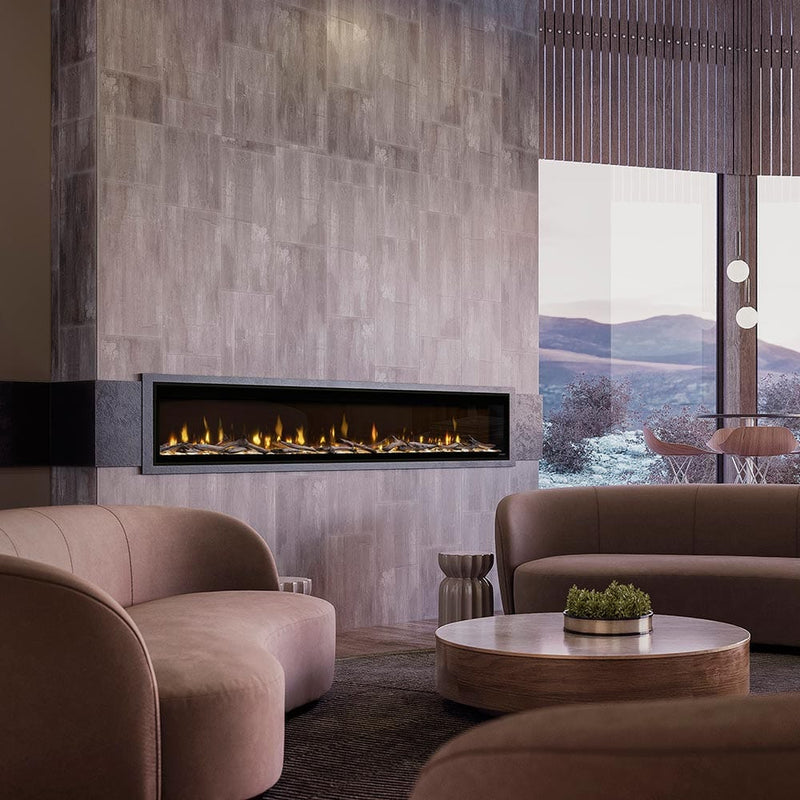

- Slim design perimeter, meant for built-in or recessed wall installs; no chimney or external venting required :contentReference[oaicite:4]{index=4}
Quick Facts
- Power: 1,500 / 2,500 W; Voltage: 120 / 240 V :contentReference[oaicite:5]{index=5}
- BTU: ~5,118 / ~8,530 :contentReference[oaicite:6]{index=6}
- Heating Coverage: up to ~1,000 sq ft (supplemental) :contentReference[oaicite:7]{index=7}

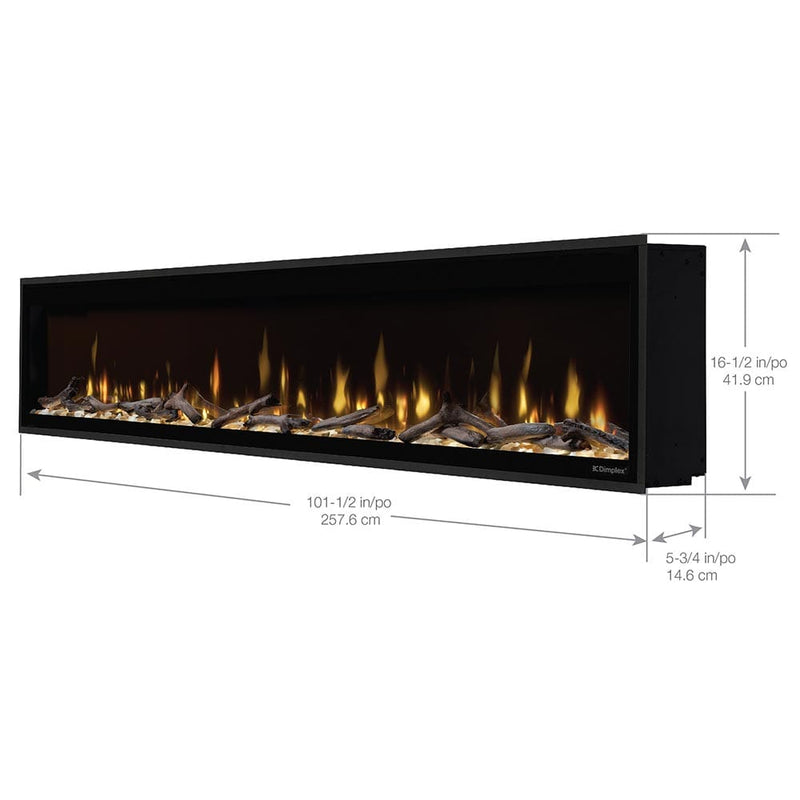

- Dimensions (W×H×D): ~101-½″ × 16-½″ × 5-¾″ (with trim) :contentReference[oaicite:8]{index=8}
- Framing opening: ~100-1⁄8″ W × 16″ H × ~3-½″ (or ~5½″ depth, depending on recess) :contentReference[oaicite:9]{index=9}
- Weight: ~59.7 kg (≈ 132 lb) :contentReference[oaicite:10]{index=10}
- Warranty: 5-Year Limited Manufacturer Warranty :contentReference[oaicite:11]{index=11}
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | Ignite Evolve 100 (EVO100) |
| SKU / MPN / GTIN | 500002563 / EVO100 / — |
Performance
| Power Settings | 1,500 W • 2,500 W |
|---|---|
| Voltage Options | 120 V / 240 V |
| BTU Output | ~5,118 / ~8,530 BTU |
| Heating Mode | Flame-only or Heater mode |
Installation
| Electrical | Hardwire 120/240 V; expect ~12.5 A @ 120 V, ~10.4 A @ 240 V. Dedicated circuit required. :contentReference[oaicite:12]{index=12} |
|---|---|
| Venting | Non-vented (front-vented design); no external flue needed. :contentReference[oaicite:13]{index=13} |
| Framing Opening | ~100-1⁄8″ W × 16″ H × ~3-½″ D (standard recess) or ~5-½″ D for flush mount. :contentReference[oaicite:14]{index=14} |
Size & Weight
| Overall Dimensions (W×H×D) | ~101-½″ × 16-½″ × 5-¾″ (with trim) :contentReference[oaicite:15]{index=15} |
|---|---|
| Viewing Width / Glass | ~98-¾″ (glass width) :contentReference[oaicite:16]{index=16} |
| Weight | ~59.7 kg (~132 lb) :contentReference[oaicite:17]{index=17} |
Documents (PDF): Owner’s & Install Manual / Specification Sheet (PDF)
FAQs
Can the flame operate without heat?
Yes — the flame and media effects run independently; use the flame-only mode for visual ambiance year-round. :contentReference[oaicite:18]{index=18}
What are the electrical requirements?
Hardwire 120 V or 240 V dedicated circuit. Expect ~12.5 A at 120 V, ~10.4 A at 240 V. See the manual (PDF). :contentReference[oaicite:19]{index=19}
How much area will this firebox heat?
Designed to provide supplemental heat for up to ~1,000 sq ft. Actual performance depends on insulation and climate. :contentReference[oaicite:20]{index=20}
Is external venting required?
No — this model uses non-vented front vents; no chimney or external ductwork necessary. :contentReference[oaicite:21]{index=21}
What are the framing dimensions?
Framing: ~100-1⁄8″ W × 16″ H; depth ~3-½″ standard, or ~5-½″ for flush mount. :contentReference[oaicite:22]{index=22}
What warranty is included?
5-Year Limited Manufacturer Warranty on electrical and moving parts. :contentReference[oaicite:23]{index=23}
How much does it cost to run?
Estimate: cost/hr = (watts ÷ 1,000) × your local $/kWh. Example: 2,500 W ≈ 2.5 × your rate per hour.
Warranty
Dimplex Ignite Evolve 100 (EVO100) — Manufacturer warranty: 5-Year Limited. :contentReference[oaicite:24]{index=24}
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Heater / Controls | 5 years | Materials and workmanship under normal residential use. :contentReference[oaicite:25]{index=25} |
| Media / Glass / Finish | 5 years | Cover manufacturing defects; excludes damage from misuse or cleaning. :contentReference[oaicite:26]{index=26} |
Exclusions & Conditions
- Warranty valid only for original purchaser with proof of purchase.
- Improper installation, misuse, or modifications void coverage.
- Labor, shipping, or routine maintenance are not covered unless explicitly stated.
Manuals & Installation
- Owner’s & Installation Manual / Spec Sheet: Download (PDF)
From the Manual
“Framing: 100-1⁄8″ W × 16″ H × 3-½″ D (or 5-½″ for flush mount).” :contentReference[oaicite:27]{index=27}
“Watts: 1,500 / 2,500 W • Voltage: 120 / 240 V • BTU: 5,118 / 8,530.” :contentReference[oaicite:28]{index=28}
Pre-Install Checklist
- Confirm framing opening width ~100-1⁄8″ × height ~16″ × required depth (~3-½″ standard or ~5-½″ for flush mount) as per spec. :contentReference[oaicite:29]{index=29}
- Provide dedicated 120 V or 240 V circuit as required by configuration. :contentReference[oaicite:30]{index=30}
- Ensure structural support for the length and weight (~59.7 kg / ~132 lb). :contentReference[oaicite:31]{index=31}
- Allow front access and unobstructed airflow for vents; trim finishing should not block heat outlet. :contentReference[oaicite:32]{index=32}
Compliance & Safety
Install per manual and all applicable local codes. Use licensed electrician for hardwired installations.
Disconnect power before any servicing. Glass remains cool; heater vents or fan outlets may become warm during operation.
