Napoleon Cineview 30'' Electric Firebox Insert
Napoleon Cineview 30 — Electric Firebox Insert
The Cineview 30 is a sleek 30-inch built-in electric firebox featuring interchangeable log and crystal media, customizable flame effects, and flexible power options. ECO and BOOST heating modes offer energy efficiency or rapid warmth—ideal for modern spaces without venting requirements.

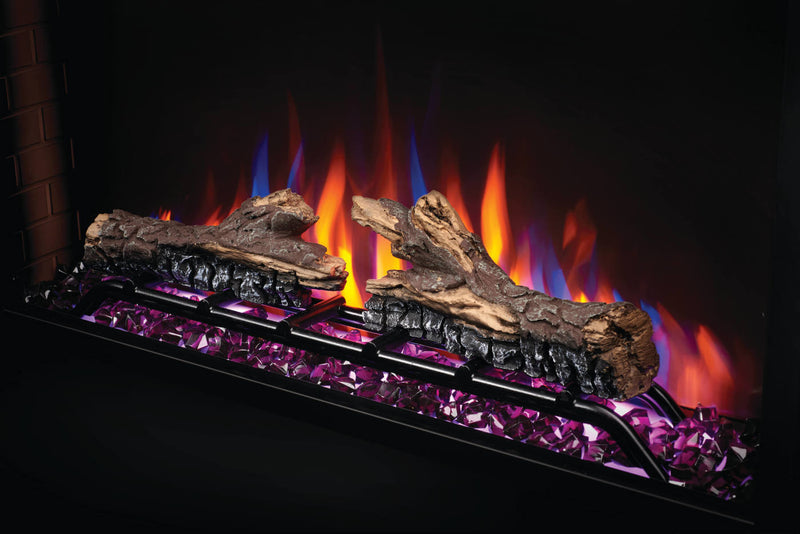

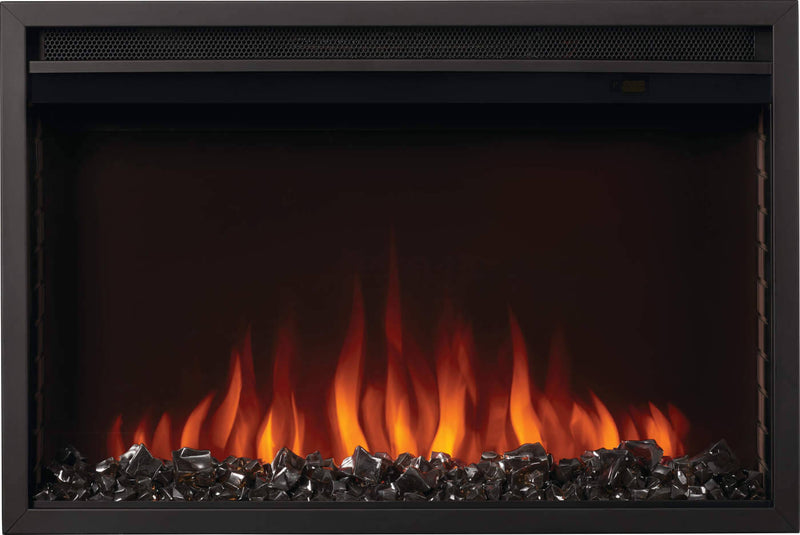

- Includes both realistic oak logs and crystal media for seasonal styling
- Flame colors: orange, blue, or combined, plus seven ember bed settings
- Switchable ECO (low energy) and BOOST (maximum heat) modes

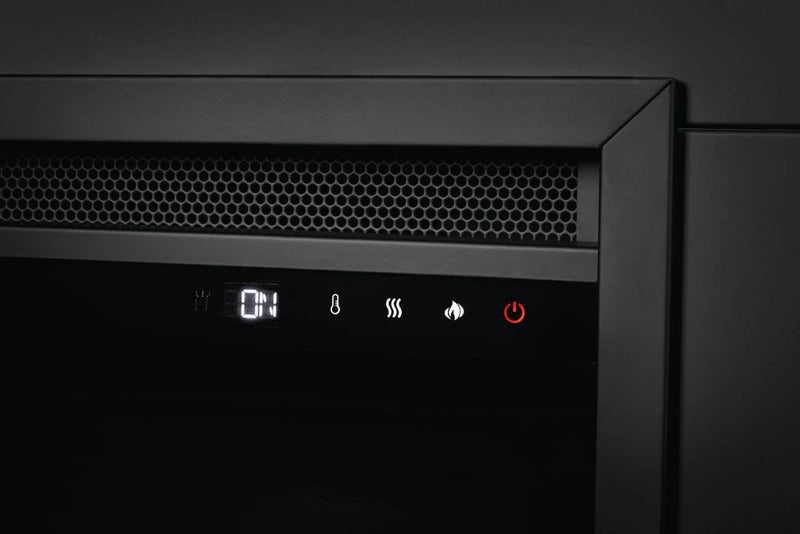

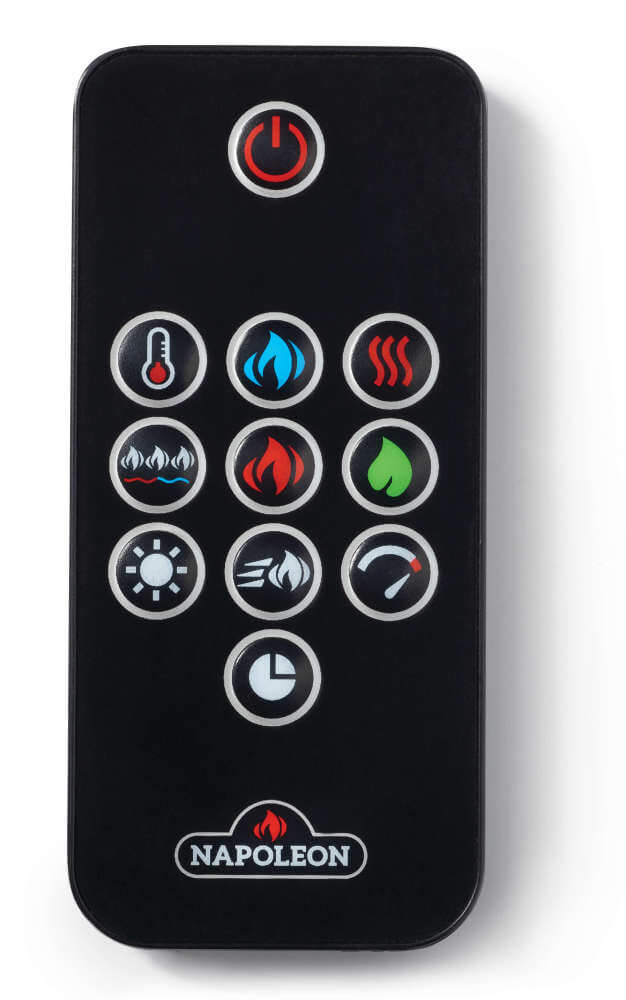

- Touch-screen panel and remote control with whisper-quiet fan
Quick Facts
- Heat Output: 5,000 BTU (1,500 W)
- Heats up to: 400 sq ft
- Power: 120 V, 15 A, plug-in or hardwire
- Dimensions: 30″ W × 20.25″ H × 7.75″ D
- Viewing Area: 27 15/16″ W × 15 15/16″ H
- Weight: 41.9 lb
- Vent-free operation, UL 2021 / CSA certified
Technical Specifications
| Brand | Napoleon |
|---|---|
| Model | Cineview 30 (NEFB30H) |
Performance
| Heating Output | 1,500 W (~5,000 BTU) |
|---|---|
| Heating Area | Up to 400 sq ft |
| Power Supply | 120 V, 15 A (plug-in or hardwire) |
| Modes | ECO and BOOST selectable |
| Flame & Ember Options | Orange, blue, combined flames; 7 ember bed colors |
| Media Included | Burnt oak logs & crystal (glass) |
Materials & IDs
| Dimensions (W×H×D) | 30″ × 20.25″ × 7.75″ |
|---|---|
| Viewing Area | 27 15/16″ × 15 15/16″ |
| Weight | 41.9 lb |
| Installation | Built-in electric firebox insert |
FAQs
Are both logs and crystal media included?
Yes—both realistic oak logs and crystal media come in the box for interchangeable styling options.
What flame options are available?
Options include orange, blue, or a combined color flame, along with seven ember bed color modes.
How much heat does it produce?
Outputs 1,500 W (~5,000 BTU), effectively warming spaces up to 400 sq ft.
What are the ECO and BOOST modes?
ECO mode reduces energy use by halving heat output; BOOST delivers maximum heat and airflow.
Is it vent-free?
Yes—this electric firebox insert requires no venting or additional ductwork.
Can it operate without heat?
Yes—the flame effects operate independently for year-round ambiance.
Warranty
Napoleon Cineview 30 (NEFB30H) — Manufacturer warranty: 1-Year Limited.
Coverage
| Component | Term | Notes |
|---|---|---|
| Entire Unit | 1 year | Covers defects in materials or workmanship. |
Exclusions & Conditions
- Improper installation or misuse is excluded.
- Original purchaser only; proof of purchase required.
- Labor and shipping are not covered.
How to Make a Warranty Claim
- Retain your proof of purchase and model info.
- Contact PureFlameCo Support with photos and issue details.
- Obtain authorization from Napoleon before any repair or replacement.
Contact support if full warranty documentation is needed.
Manuals & Installation
- Owner & Installation Manual: Download (PDF)
- Specification / Dimension Sheet: Download (PDF)
Pre-Install Checklist
- Have a dedicated 120 V, 15 A grounded circuit available
- Ensure rough opening: 29 ¼″ W × 19 ⅞″ H × 7 ¾″ D
- Decide between plug-in or hardwired during planning
- Don't block front or top venting—maintain airflow
- Test operation before framing using the manual’s guidance
Compliance & Safety
Install per UL 2021 and CSA electrical standards; refer to the manual for clearances and safe operation.
Professional installation is recommended for hardwire setups.
Follow warning instructions carefully—never obstruct vents or modify components.
