Revillusion® 30" Built-In Electric Firebox - REV30-BL
Revillusion® 30" Built-In Electric Firebox - REV30-BL

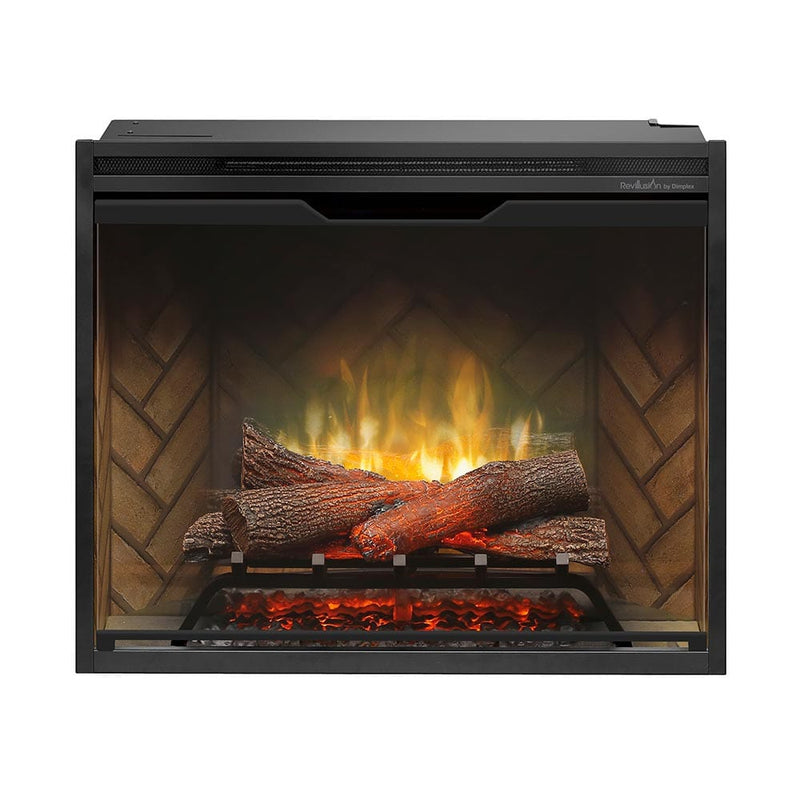

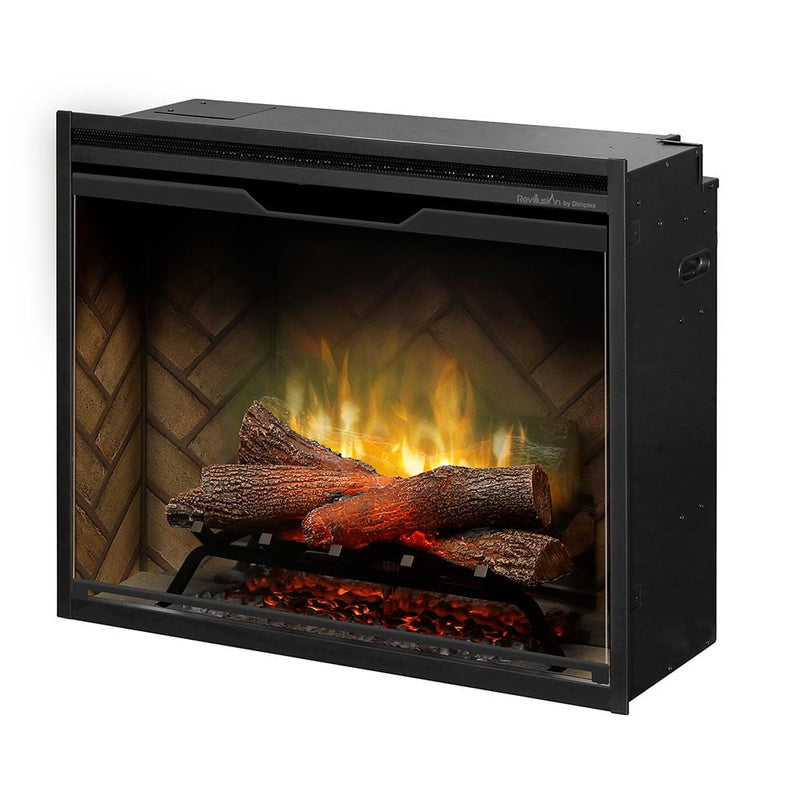

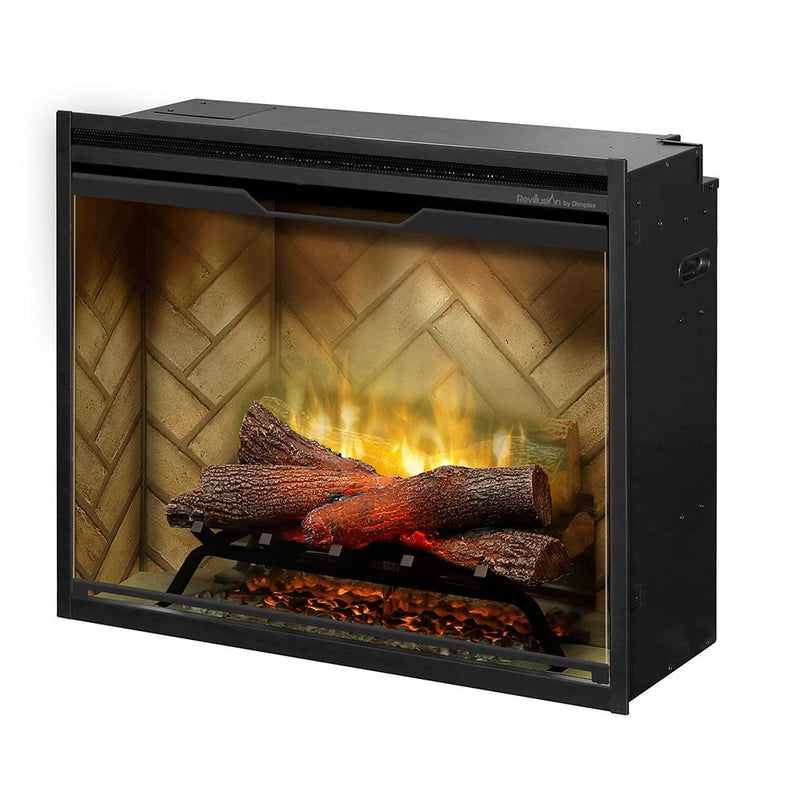

The Revillusion® 30" Built-In Electric Firebox (Model REV30-BL) brings the beauty and realism of a traditional fireplace into a modern electric design. Featuring Dimplex’s patented Revillusion® flame technology, it creates a lifelike illusion of depth with clear, see-through flames and glowing logs. Designed for easy installation and energy-efficient operation, the REV30-BL offers an authentic fireplace experience without the need for venting or maintenance — ideal for both home and commercial environments.
- 30-inch built-in electric firebox with Revillusion® flame technology
- Mirage™ panel creates a clear, see-through flame depth effect

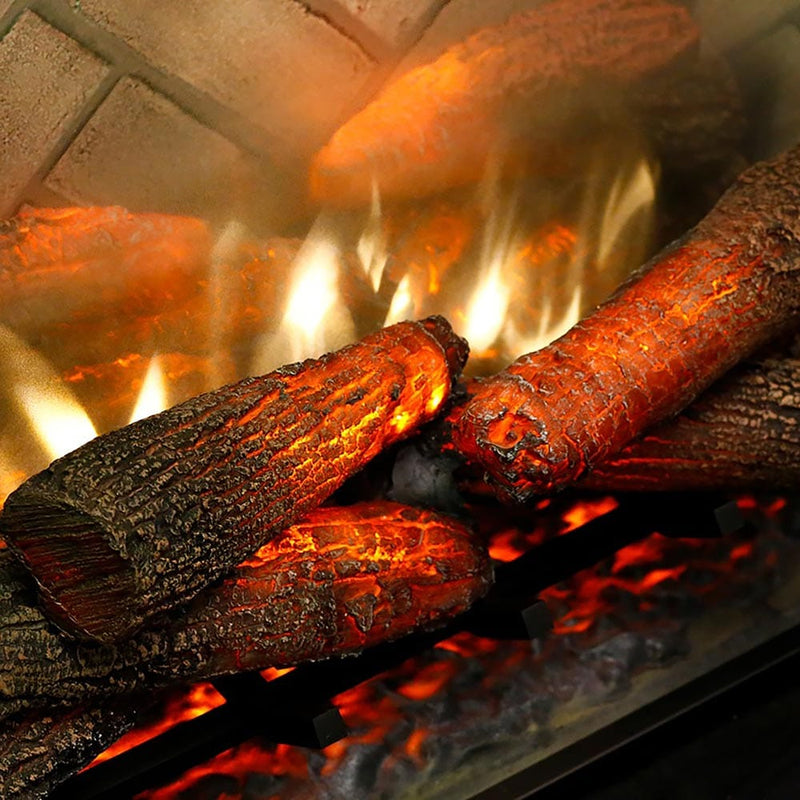

- Realistic inner-glow logs and ember bed for added authenticity
- Supplemental heat output up to 4,800 BTU for spaces up to 400 sq. ft.
- Flame operates independently from heat for year-round ambiance

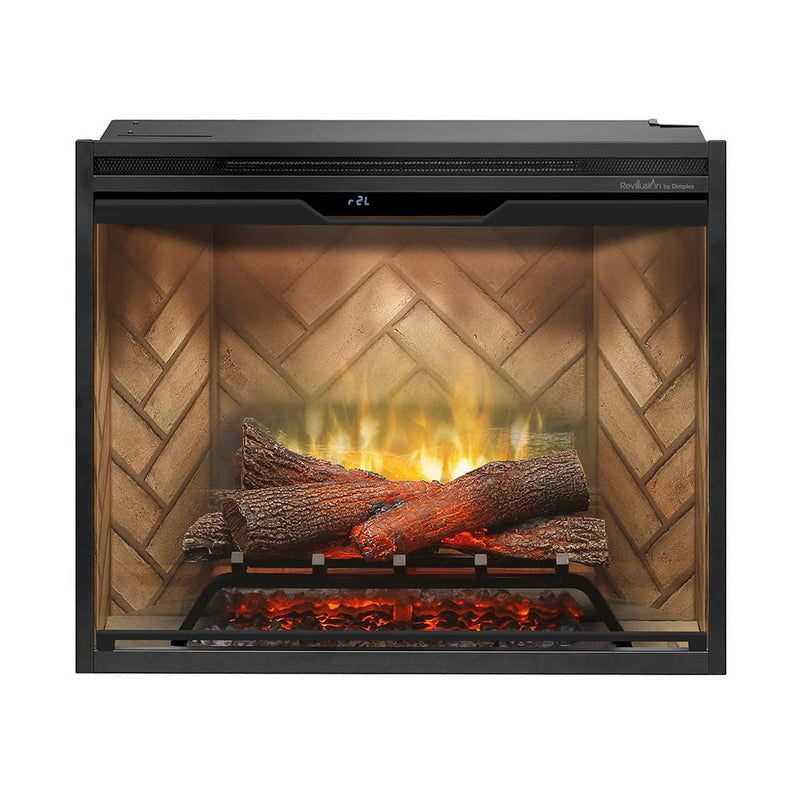

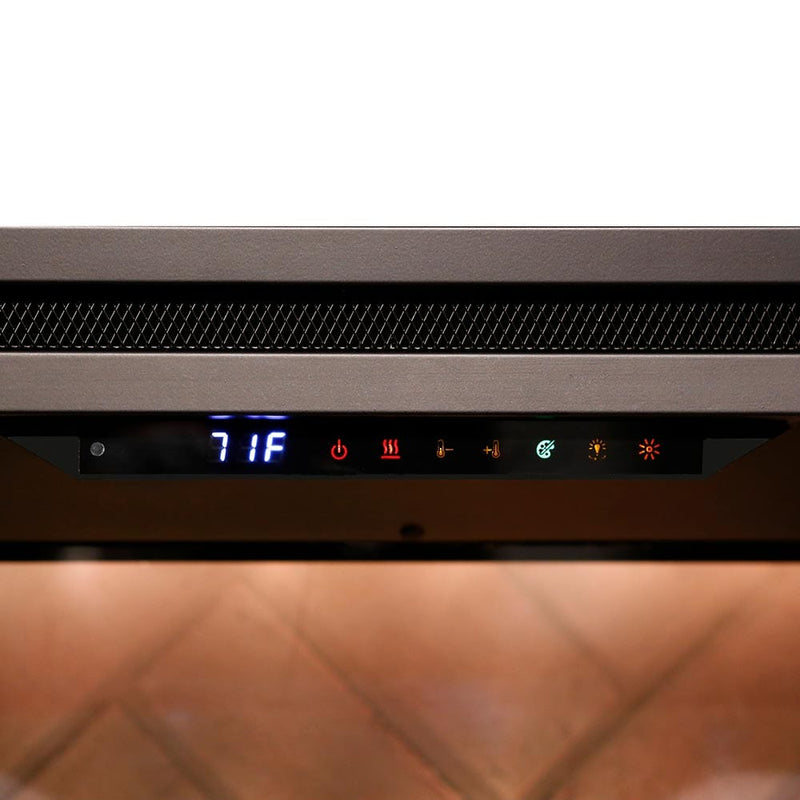

- Remote control and on-screen display for easy customization
Quick Facts
- Type: Built-In Electric Firebox
- Model: REV30-BL
- Heating Capacity: Up to 400 sq. ft.
- Power: 1,440 W / 120 V
- Flame: Revillusion® LED system with Mirage™ panel
- Installation: Built-in (hardwired or plug-in)

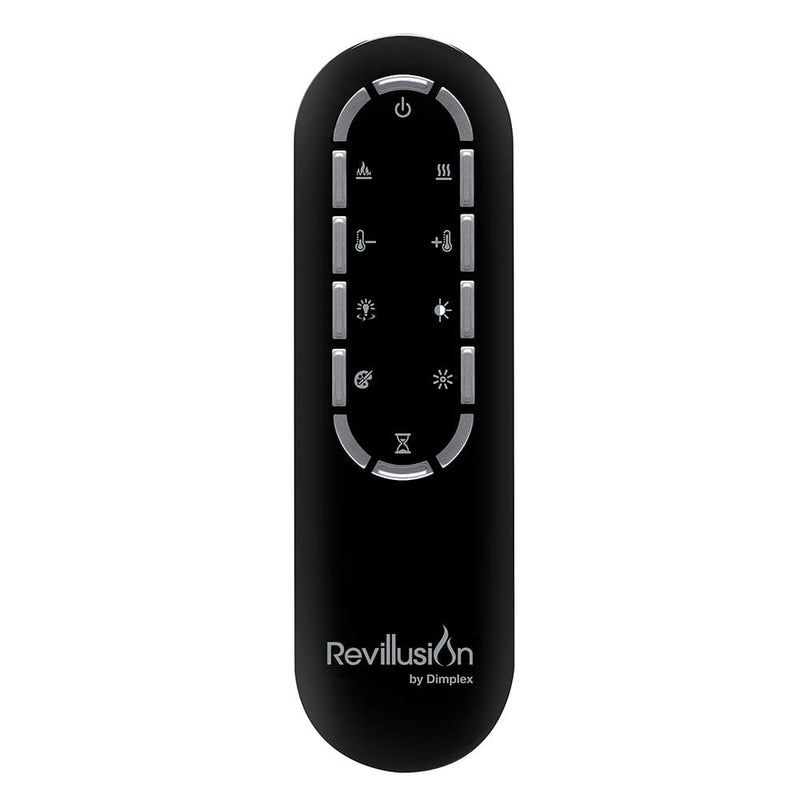

- Controls: Remote control & on-screen display
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | REV30-BL |
| Series | Revillusion® |
| Type | Built-In Electric Firebox |
| Fuel Type | Electric (LED Flame Technology) |
Performance
| Heat Output | Up to 4,800 BTU (1,440 W) |
|---|---|
| Heating Range | Up to 400 sq. ft. |
| Voltage | 120 V AC |
| Flame Technology | Revillusion® Mirage™ panel with LED inner-glow logs |
| Operation Modes | Flame-only or heat + flame |
| Controls | Remote control & on-screen display |
Installation & Design
| Venting | Vent-free — front heat discharge |
|---|---|
| Mounting Options | Built-in (recessed) |
| Finish | Matte black metal frame with high-clarity glass front |
| Optional Accessories | Front glass doors, trim kits, and interior panels |

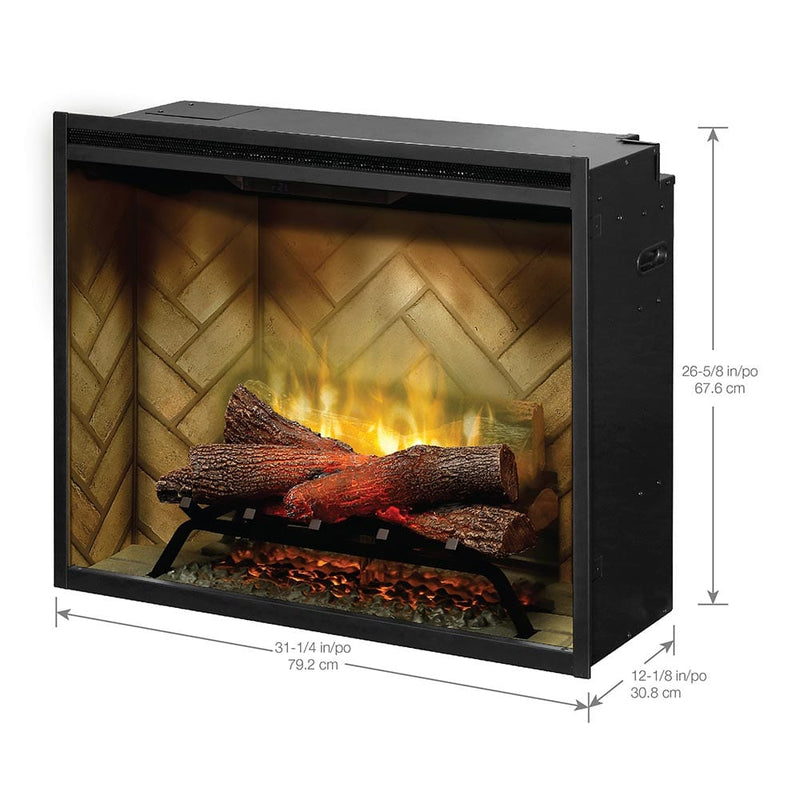

Dimensions & Weight
| Overall Dimensions (W×H×D) | 31″ × 26″ × 12″ (approx.) |
|---|---|
| Viewing Area | 29″ × 18″ (approx.) |
| Weight | ~55 lbs (25 kg) |
FAQs
What is Revillusion® flame technology?
Revillusion® uses a see-through Mirage™ panel that creates deeper, more natural flames with greater clarity and brightness, replicating the look of a real wood fire.
Can it be installed without venting?
Yes — the REV30-BL is a 100% vent-free electric firebox, making installation quick and simple.
Does it provide heat?
Yes — it provides up to 4,800 BTU of supplemental heat for spaces up to 400 sq. ft., but can also be operated without heat.
Is the unit plug-in or hardwired?
It can be plugged into a standard 120 V outlet or hardwired for a built-in look.
Can I customize the look?
Yes — optional front doors, trims, and interior panels allow you to tailor the aesthetic to your decor.
Warranty
The Revillusion® 30" Built-In Electric Firebox (REV30-BL) comes with a limited manufacturer’s warranty for dependable performance and peace of mind.
Coverage
| Component | Term | Details |
|---|---|---|
| Electrical & Heating Components | 2 Years | Manufacturer defect coverage |
| Glass & Finish | 1 Year | Material and workmanship protection |
Conditions
- Warranty valid for original purchaser only
- Improper installation or unauthorized modification voids warranty
- Labor, travel, and shipping costs not included
Manuals & Installation
- Official Dimplex Website
- Owner’s Manual and installation guide available on the Dimplex Revillusion® product page
Pre-Installation Checklist
- Ensure framing cavity matches product dimensions
- Provide 120 V electrical outlet or wiring access
- Confirm proper clearance from combustible materials
- Follow all local electrical and building codes
Safety & Compliance
Install according to manufacturer’s instructions. Keep air vents unobstructed and ensure proper grounding for safe, reliable operation.
