Revillusion® 24" Built-In Electric Firebox - REV24-WC
Revillusion® 24" Built-In Electric Firebox - REV24-WC

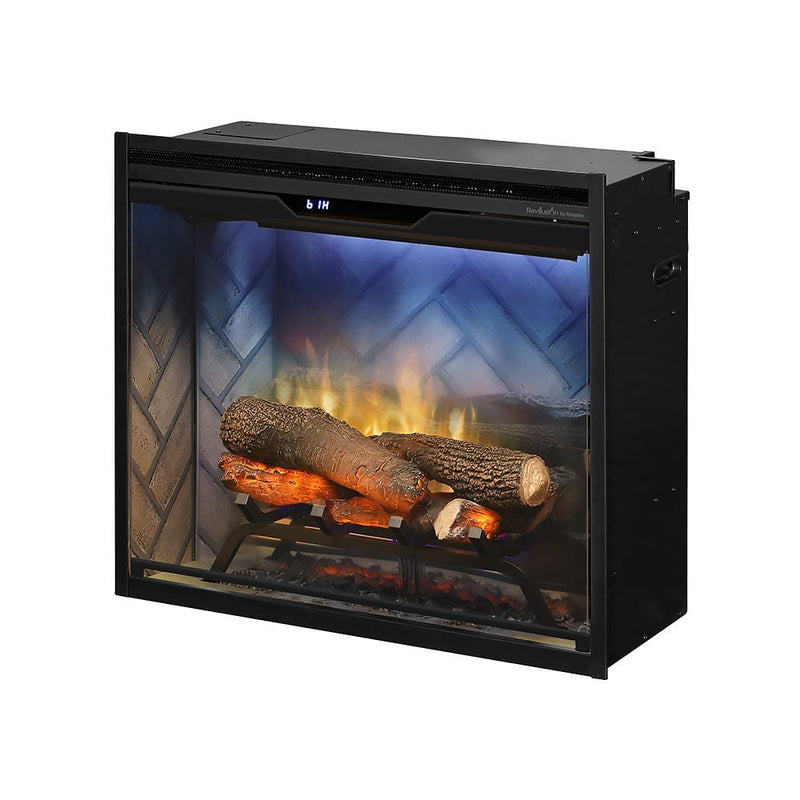

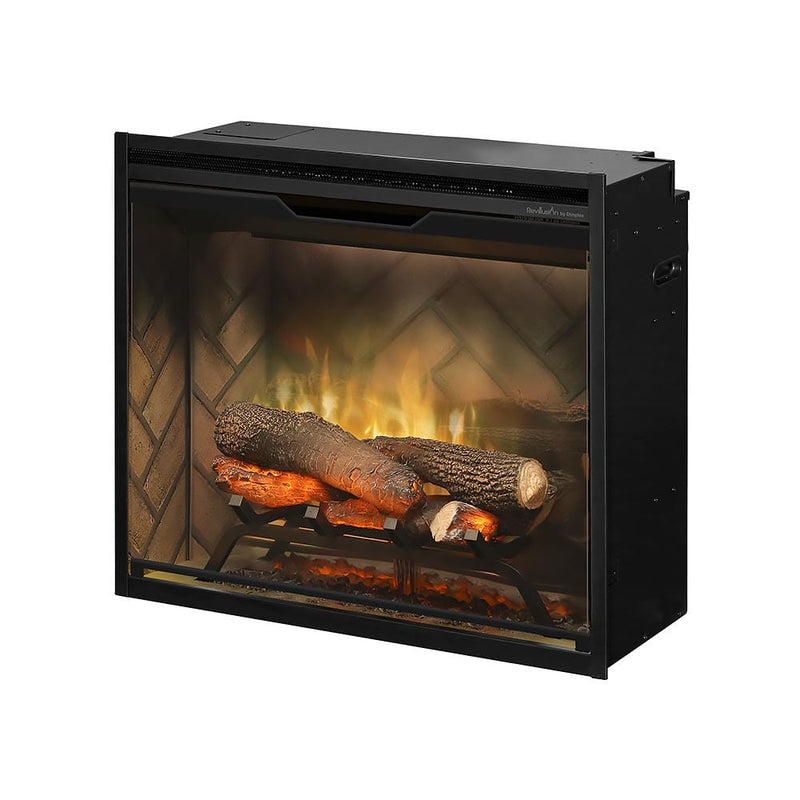

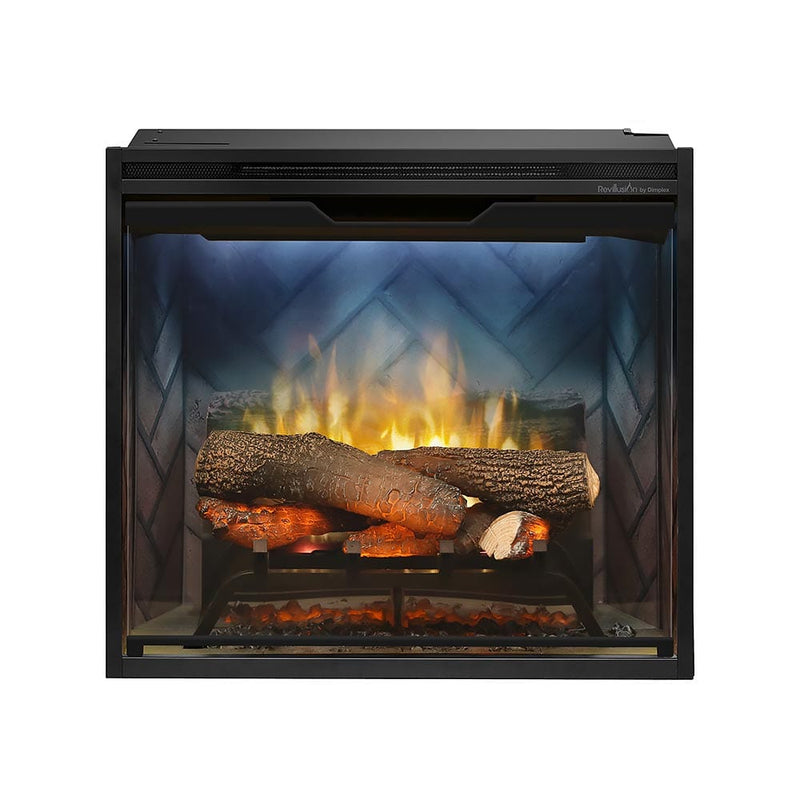

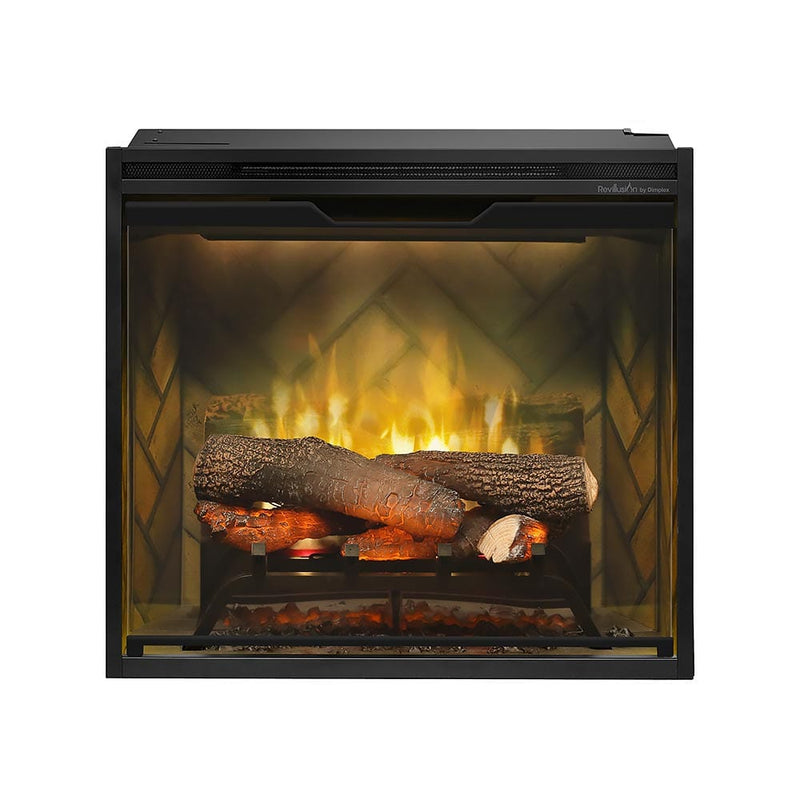

The Revillusion® 24" Built-In Electric Firebox (Model REV24-WC) delivers a remarkably realistic flame effect with Dimplex’s patented Revillusion® technology. Designed for built-in installation, it showcases a clear view through the lifelike log set, creating the illusion of a deeper, more authentic fire. Perfect for both residential and commercial spaces, this 24-inch unit combines efficiency, simplicity, and elegance — offering the beauty of a real wood fire without the mess or maintenance.
- 24-inch built-in electric firebox with Revillusion® flame technology
- Realistic Mirage™ flame panel creates a see-through depth effect
- Bright LED inner-glow logs with natural texture and detail
- Supplemental heat output up to 4,800 BTU for spaces up to 400 sq. ft.
- Flame operates with or without heat for year-round ambiance
- Compatible with optional front glass doors and trim kits
Quick Facts
- Type: Built-In Electric Firebox
- Model: REV24-WC
- Heating Capacity: Up to 400 sq. ft.
- Power: 1,440 W / 120 V
- Flame: Revillusion® LED flame system
- Installation: Built-in (hardwired or plug-in)
- Controls: Remote control & on-screen settings
Technical Specifications
| Brand | Dimplex |
|---|---|
| Model | REV24-WC |
| Series | Revillusion® |
| Type | Built-In Electric Firebox |
| Fuel Type | Electric (LED Flame Technology) |
Performance
| Heat Output | Up to 4,800 BTU (1,440 W) |
|---|---|
| Heating Range | Up to 400 sq. ft. |
| Voltage | 120 V AC |
| Flame Technology | Revillusion® Mirage™ panel with LED inner-glow logs |
| Operation Modes | Flame-only or flame + heat |
| Controls | Remote control and on-screen display |
Installation & Design
| Venting | Vent-free — front heat discharge |
|---|---|
| Mounting Options | Built-in (recessed) |
| Finish | Matte black metal frame with high-clarity glass front |
| Optional Accessories | Front glass door kits and trim packages |
Dimensions & Weight

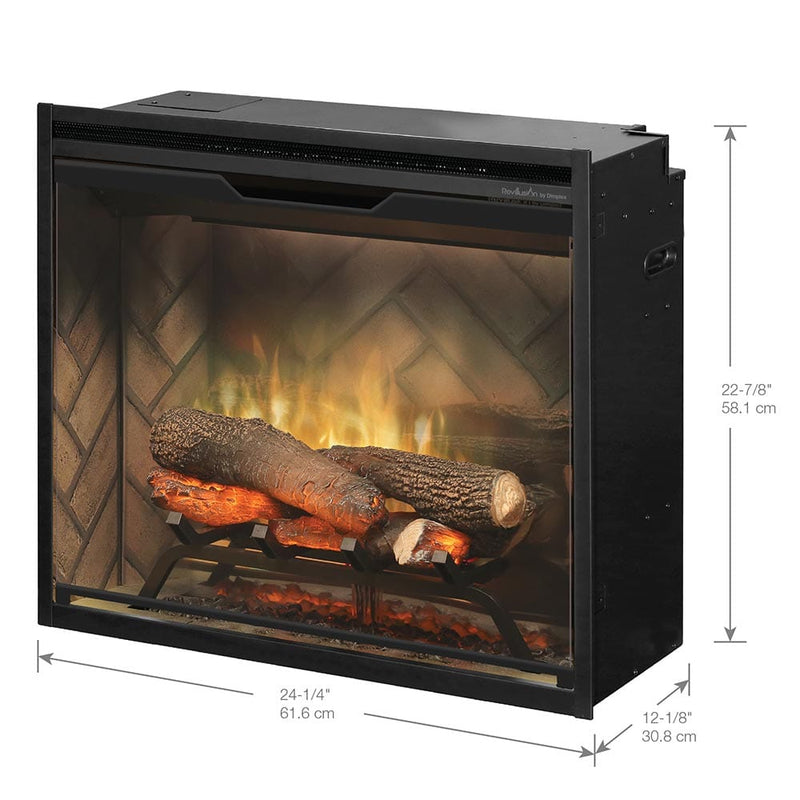

| Overall Dimensions (W×H×D) | 25″ × 22″ × 12″ (approx.) |
|---|---|
| Viewing Area | 24″ × 17″ (approx.) |
| Weight | ~45 lbs (20 kg) |
FAQs
What makes Revillusion® technology different?
Revillusion® creates a deeper and more lifelike flame appearance using a see-through panel that enhances flame realism and brightness.
Can it be used without the heater on?
Yes — the flame effect can operate independently from the heat, making it ideal for all seasons.
Does it require venting?
No — it’s a fully electric, vent-free fireplace with clean front heat discharge.
Can it be hardwired?
Yes — the REV24-WC can be either plugged into a standard 120 V outlet or hardwired for a seamless built-in appearance.
Are accessories available?
Yes — optional glass door kits and trim packages are available for a customized finish.
Warranty
The Revillusion® 24" Built-In Electric Firebox (REV24-WC) includes a limited manufacturer’s warranty for long-term performance and reliability.
Coverage
| Component | Term | Details |
|---|---|---|
| Electrical & Heating Components | 2 Years | Manufacturer defect coverage |
| Glass & Finish | 1 Year | Material and workmanship protection |
Conditions
- Warranty valid for original owner only
- Improper installation or modification voids warranty
- Labor and transportation costs not included
Manuals & Installation
- Official Dimplex Website
- Owner’s Manual and installation guide available on the Dimplex Revillusion® product page
Pre-Installation Checklist
- Confirm framing cavity matches specified dimensions
- Ensure access to a 120 V power source
- Verify clearance from combustible materials
- Follow all local building and electrical codes
Safety & Compliance
Install according to manufacturer’s specifications. Keep ventilation paths clear and maintain electrical grounding for safe, reliable operation.
