Latitude 45" Ultra Slim Electric Fireplace + Reflective Fire Glass
Overview
LiteDeer Latitude ZEF45XA 45-inch — smart electric fireplace
The Latitude ZEF45XA delivers dual-mode supplemental heat and modern aesthetics, rated for rooms up to ~400 sq ft with 750/1500 W output. Its ultra-slim design, app/remote control, and multi-color flame options make it a stylish, flexible choice for recessed or wall installs.

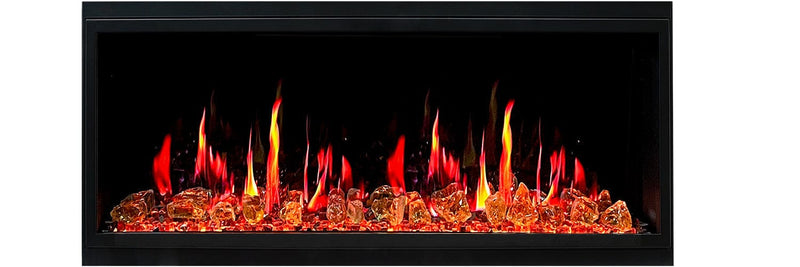

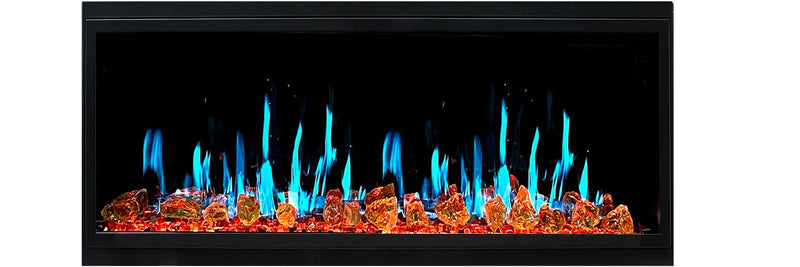

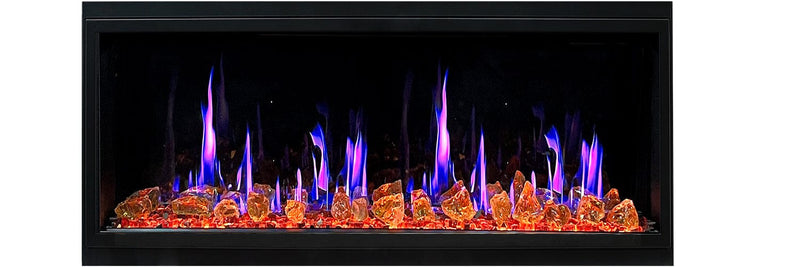

- GT-Xview HD LED flame effects with 5 selectable colors
- Dual heat modes (Low / High) for efficient comfort
- Ultra-thin profile (~8") and front-trim design for easy access
- ETL / CETL certified and backed by 2-year limited warranty
Quick Facts
- Power: 750 W / 1500 W (Low / High modes); approx. 5,118 BTU
- Supplemental Heat: up to ~400 sq ft
- Electrical: 120 V / 12.5 A
Specs
Technical Specifications
| Brand | LiteDeer |
|---|---|
| Model | Latitude ZEF45XA |
| SKU / MPN / GTIN | ZEF45XA / ZEF45XA / — |
Performance
| Power | 750 W / 1500 W (modes: Low / High) |
|---|---|
| Approx. BTU | ~5,118 |
| Supplemental Heat | Up to ~400 sq ft |
Installation
| Electrical | 120 V / 12.5 A (dedicated circuit recommended) |
|---|---|
| Venting | Front-vented: yes |
| Install Modes | Wall / Partial Recess / Full Recess |

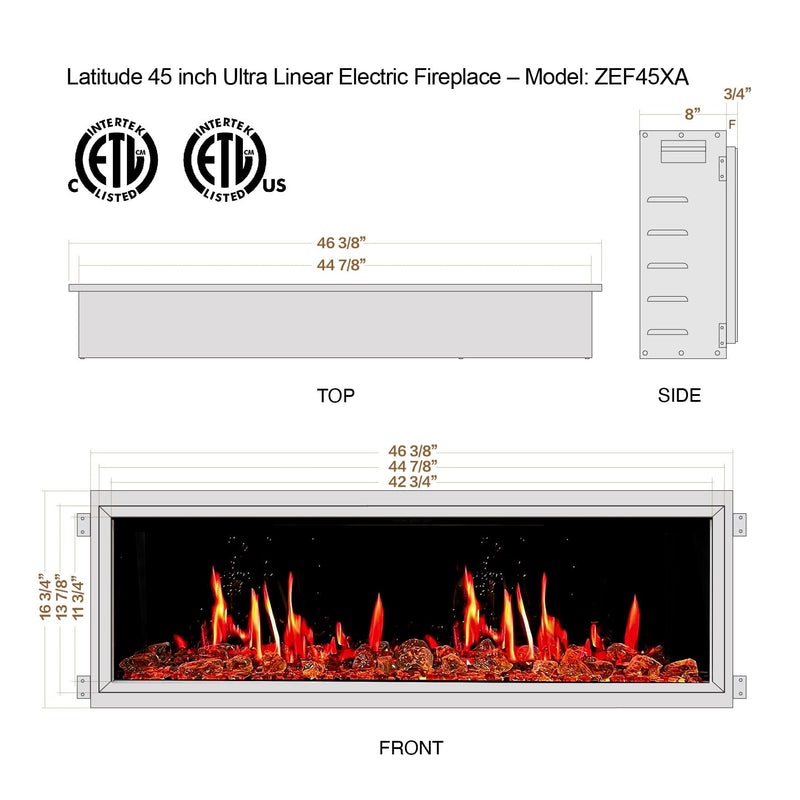

Size & Weight
| Viewing Window | 42 3/4" × 13 7/8" |
|---|---|
| Overall Dimensions (W×H×D) | 46 3/8" × 16 3/4" × 8" |
| Weight | ~95 lb |
Documents & Support: Contact PureFlameCo Support for official manuals and resources.
FAQs
FAQs
How does this compare to other electric linear fireplaces?
Highlights:
- Ultra-slim 8″ depth for tight installations

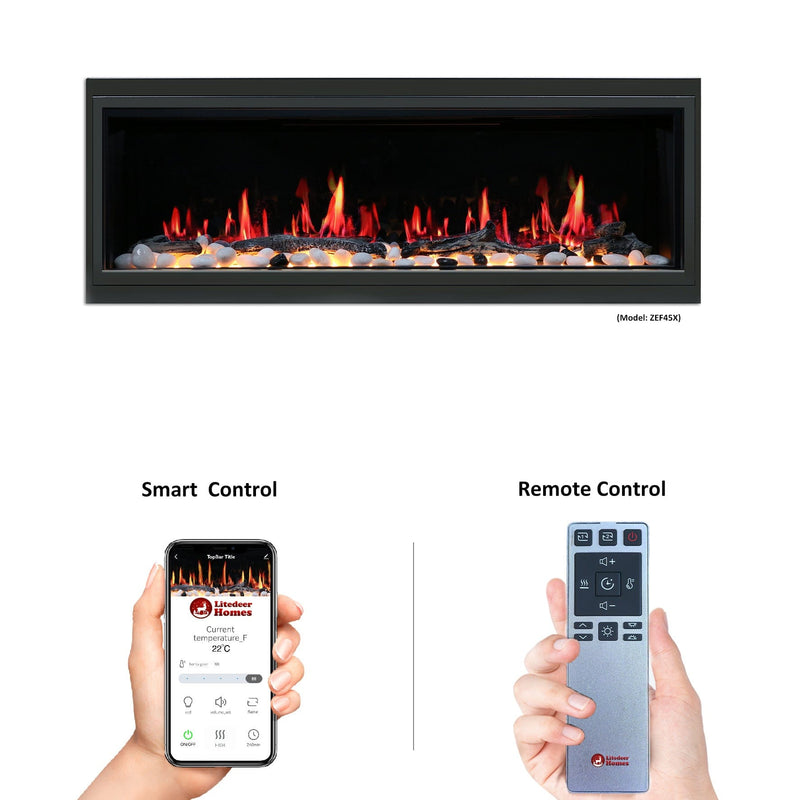

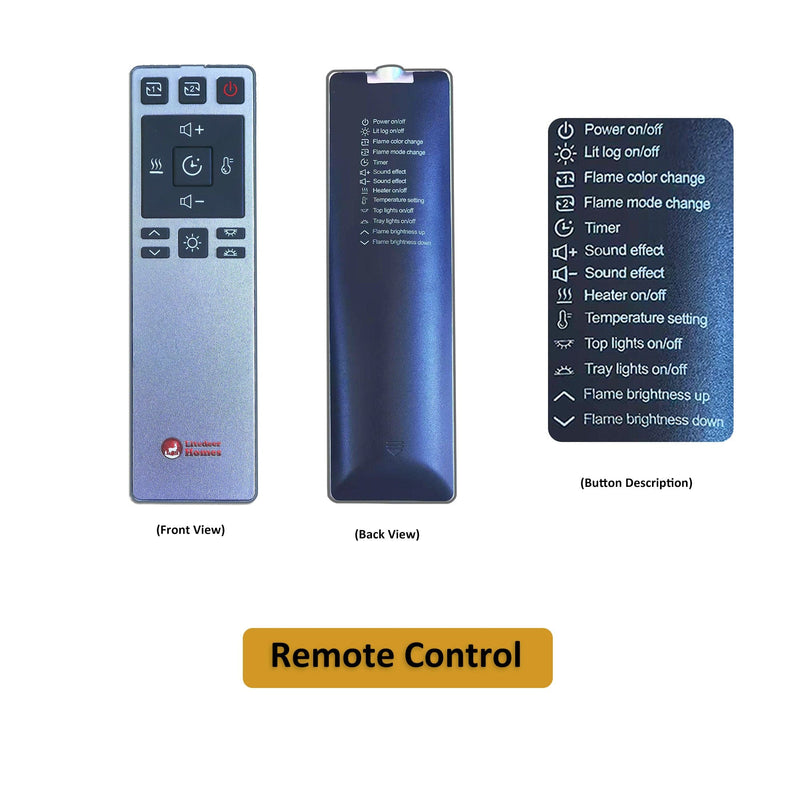

- 5 LED flame colors with app/remote control
- Dual heat modes for flexible comfort
What advantages does it offer over a basic model?
Smarter control, deeper flame customization, and a slim recess-friendly profile. See the Specs tab for power and dimensions.
What are the installation options?
Supports flush wall mounting, partial recess, or full recess. See the manual (PDF) for cut-out guidance.
Is professional installation recommended?
Yes, especially for wiring and code compliance. See Manuals & Install tab.
What’s covered under warranty?
Two-year limited warranty on defects in materials and workmanship (except finish and misuse). Proof of purchase required.
Can I plug it into a standard outlet?
It runs at 120 V / 12.5 A on a dedicated circuit. See the manual (PDF).
How much does it cost to run?
Formula: cost/hr = (watts ÷ 1,000) × local $/kWh. Example: 1,500 W = 1.5 × your rate per hour.
What area can it heat?
Supplemental heat up to ~400 sq ft (depends on insulation and climate).
Warranty
Warranty
LiteDeer Latitude ZEF45XA — This product is covered by a 2-year limited warranty for defects in materials and workmanship, excluding misuse, alterations, or cosmetic issues.
Coverage
| Component | Term | Notes |
|---|---|---|
| Firebox / Body | 2 years | Structural defects |
| Electrical / Controls | 2 years | Heating elements, wiring, LED modules |
| Glass / Media | 2 years | Window panel and decorative media |
| Finish | 2 years | Surface / coating defects |
Exclusions & Conditions
- Damage from improper installation, misuse, or unauthorized alterations.
- Original purchaser only; proof of purchase required.
- Labor, shipping, or incidental costs not covered unless stated.
How to Make a Warranty Claim
- Keep proof of purchase, serial/model number, and description of issue.
- Contact PureFlameCo Support to initiate claim and provide documentation.
- Obtain authorization before any repair or replacement.
Contact PureFlameCo Support for full warranty terms or regional limitations.
Manuals & Install
Manuals & Installation
- No official PDFs are posted here — request the Owner’s Manual, installation guide, clearance chart, and certification docs from PureFlameCo Support.
From the Manual
Manual quotations not available. Please acquire the latest PDF for proper wiring, cut-out, and operating instructions.

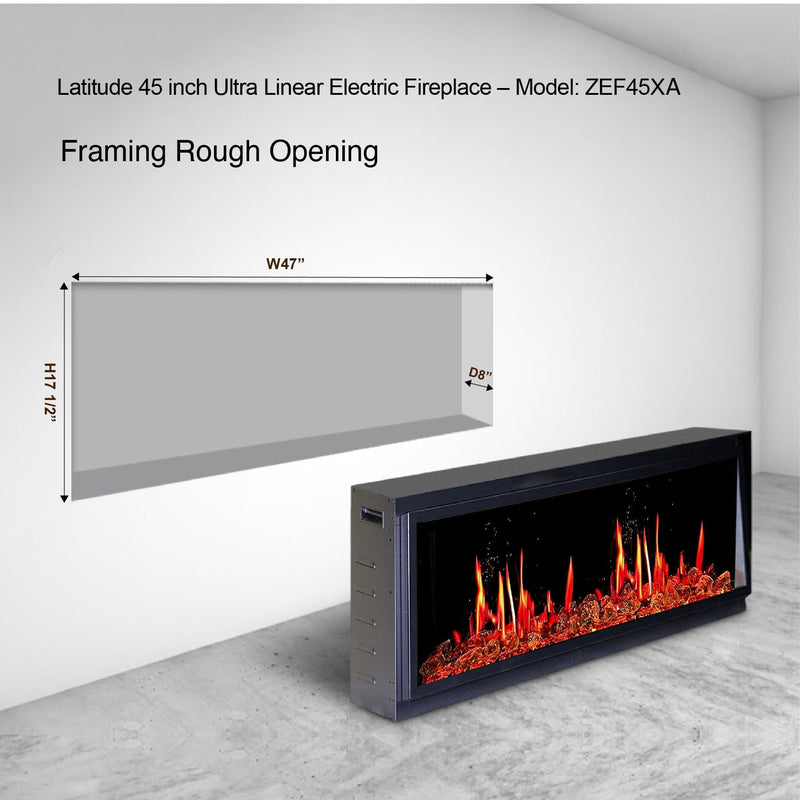

Pre-Install Checklist
- Confirm 120 V / 12.5 A dedicated circuit
- Check wall structure and recess depth
- Prepare mounting hardware and backing
- Allow front intake/exhaust clearance per manual
- Route wiring and ground according to code
Compliance & Safety
Professional installation is recommended to ensure compliance with electrical and building codes.
Verify local permit or inspection requirements before installation.
