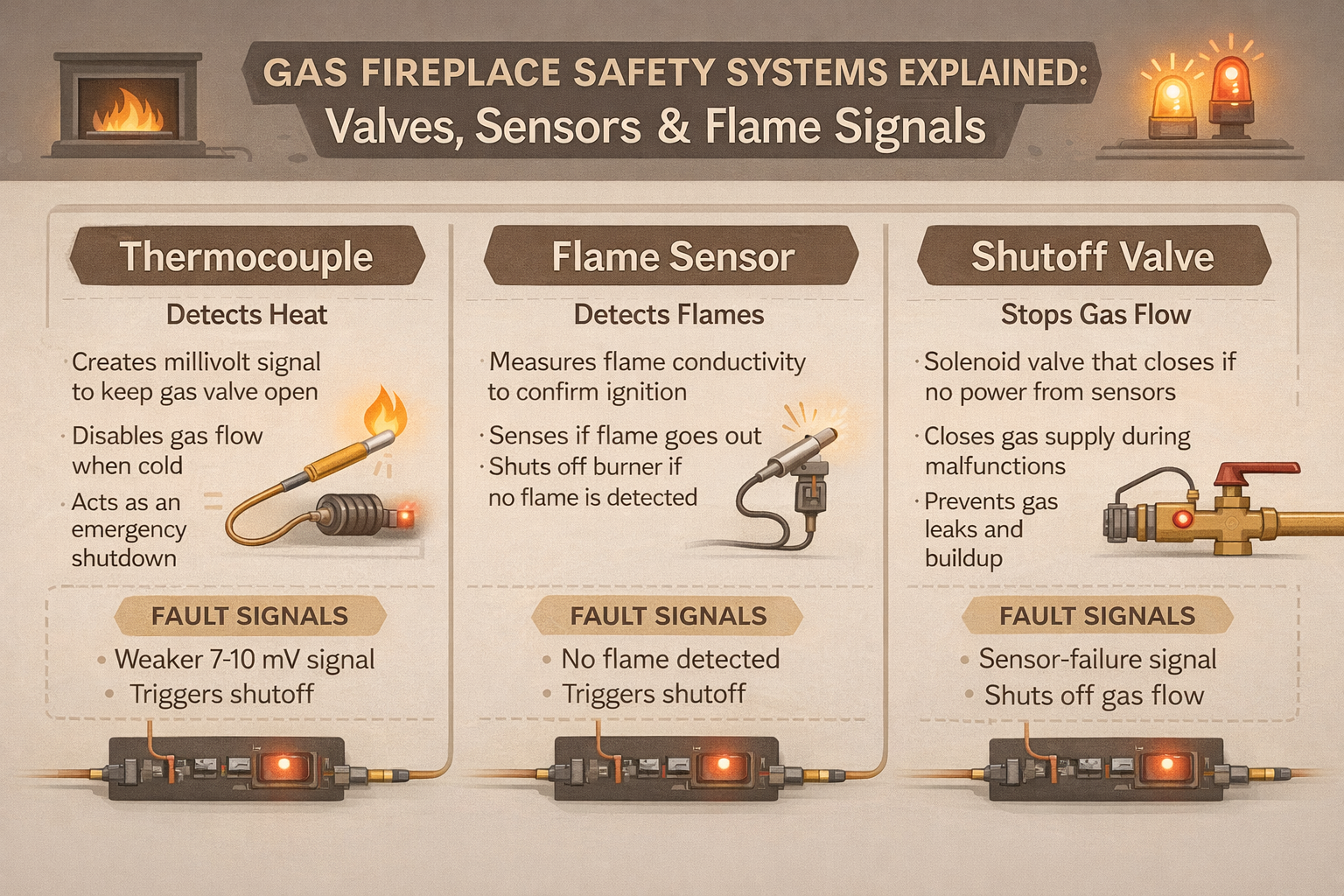

Gas-Fireplace-Safety-Systems-Explained-Valves-Sensors-Flame-Signals Pure Flame Co

Gas Fireplace Safety Systems Explained: Valves, Sensors & Flame Signals

Gas fireplaces are not made safe by habit or caution. They are made safe by mechanical systems, electrical sensors, and redundant shutoff logic designed to stop fuel flow the moment combustion deviates from safe parameters.

This article explains how those systems actually function, how they interact, and how to interpret failure conditions at a technical level.


Why Gas Fireplace Safety Is a System, Not a Feature

A gas fireplace does not rely on a single safety component. It relies on a chain of dependent systems, where failure at any point causes automatic fuel shutoff.

At a high level, safety is enforced through:

  • Flame verification
  • Oxygen monitoring
  • Gas pressure regulation
  • Valve control logic
  • Electrical continuity
  • Mechanical fail-safe defaults

If any required condition is not met, gas flow stops.

Core Safety Architecture Overview

Every modern gas fireplace includes some or all of the following:

  • Manual shutoff valve
  • Appliance gas valve assembly
  • Flame verification device (thermocouple or flame sensor)
  • Ignition control module
  • Oxygen monitoring system (ODS) in vent-free units
  • Pressure regulators
  • Diagnostic fault signaling

Each component has a specific job and a specific failure response.

Manual Shutoff Valve (First Line of Control)

What It Is
A manual shutoff valve is a mechanical valve installed in the gas supply line, typically within 6 feet of the appliance.

What It Does

  • Allows manual interruption of gas flow
  • Enables servicing and emergency shutdown
  • Required by fuel gas codes

Failure Behavior
Default state is closed when turned off. It is independent of electronics and cannot fail “open” without mechanical damage. This is not a safety sensor. It is a human-controlled isolation point.

Appliance Gas Valve Assembly (Primary Control)

What It Is
The gas valve assembly is an electrically controlled valve that regulates gas flow to the burner.

What It Does

  • Opens only when all safety conditions are satisfied
  • Closes immediately if flame verification fails
  • Regulates gas pressure to the burner

Default State
Closed. Always.
If power is lost, signal is interrupted, or diagnostics fail, the valve closes.

Thermocouple (Standing Pilot Systems)

What It Is
A thermocouple is a millivolt-generating heat sensor placed directly in the pilot flame.

How It Works

  • Pilot flame heats the thermocouple tip
  • Heat generates a small electrical voltage (typically 30mV for thermocouples, higher for thermopiles)
  • Voltage holds the gas valve open
  • Flame loss = voltage loss = valve closes

Key Characteristics

  • No external power required
  • Extremely reliable
  • Slow response compared to modern flame sensors
  • Common in older or basic systems

Failure Indicators

  • Pilot will not stay lit
  • Main burner will not engage
  • Valve shuts off within seconds

Flame Sensor (Electronic Ignition Systems)

What It Is
A flame sensor is a metal rod that uses flame rectification to verify flame presence. It is standard in modern units like the Empire Rushmore Direct Vent Fireplace.

Empire Rushmore Direct Vent Fireplace with Electronic Ignition

How It Works

  • AC signal is sent through the sensor
  • Flame conducts current asymmetrically (rectification)
  • Control module confirms flame continuity via DC microamps
  • Gas remains open only while signal is valid

Advantages Over Thermocouples

  • Faster detection
  • More precise diagnostics
  • Works with intermittent or hot surface ignition

Oxygen Depletion Sensor (ODS) – Vent-Free Systems Only

What It Is
An ODS is a modified pilot assembly that monitors oxygen concentration in the room. This is a mandatory safety feature in products like the Empire VFD30CC Cast Iron Gas Stove.

Empire Vent-Free Cast Iron Stove with ODS

How It Works

  • Designed pilot flame geometry reacts to oxygen levels
  • At ~18% oxygen, flame shape changes and lifts off the thermocouple
  • Thermocouple cools
  • Gas valve closes automatically

Important Clarification
ODS does not measure carbon monoxide. It measures oxygen availability, indirectly.

Regulatory Notes

  • Required in vent-free appliances
  • Subject to regional bans and restrictions
  • Not used in direct-vent systems

Ignition Control Module (System Brain)

What It Is
An electronic module that coordinates ignition, flame verification, and safety timing.

What It Manages

  • Ignition sequence timing
  • Flame detection window
  • Retry limits
  • Lockout conditions
  • Diagnostic signaling

Typical Lockout Triggers

  • Failed ignition attempts
  • Flame loss during operation
  • Sensor signal inconsistency
  • Internal fault detection

Once locked out, manual reset or service is required.

Gas Pressure Regulators

What They Do

  • Reduce supply pressure to appliance-safe levels (measured in inches of water column)
  • Maintain consistent burner operation
  • Prevent over-firing

Why They Matter for Safety
Excess pressure can cause flame rollout, soot production, overheating, and incomplete combustion. Pressure regulation is a silent safety system.

Diagnostic Fault Signals (Modern Systems)

Many fireplaces communicate fault states via:

  • LED blink codes
  • Remote control error messages
  • Control board indicators

These signals correspond to flame failure, pressure issues, sensor faults, or lockout conditions. Understanding these signals is essential for diagnostic troubleshooting, not user operation.

Safety System Interaction (Why Redundancy Matters)

Safety components are not independent. For example:

Flame sensor failure → valve closes
Valve closes → ignition module enters lockout
Lockout → manual reset required
Reset without flame → repeat shutdown

This layered logic prevents unsafe restart cycles.

Common Diagnostic Scenarios (Technical)

Pilot Lights But Main Burner Fails

  • Weak thermocouple
  • Flame sensor contamination
  • Gas valve solenoid fault

Burner Lights Then Shuts Off

  • Flame signal loss
  • Pressure instability
  • Draft interference

No Ignition Attempt

  • Control module fault
  • Power interruption
  • Safety lockout active

Why These Systems Exist

Gas fireplaces burn fuel indoors. Safety systems exist to:

  • Prevent unburned gas release
  • Stop combustion without verification
  • Prevent oxygen depletion
  • Control heat output
  • Enforce mechanical fail-safe behavior

They are designed around failure-first logic, not convenience.

Final Technical Takeaway

Gas fireplace safety is engineered, not assumed. It relies on mechanical defaults, electrical verification, combustion diagnostics, and regulatory design standards.

Understanding these systems is essential for inspectors, installers, advanced users, and serious homeowners.

If you need clarification on specific fault codes, system behavior, or diagnostic interpretation, our technical team can help.
